Key Assets

Global Online Auction on Behalf of GT Advanced Technologies, Consisting of a Complete Manufacturing Facility.

50 MILLION DOLLAR FACILITY – MOST ALL EQUIPMENT NEW IN 2012

Including:



GENERATOR

– (2011) Caterpillar Diesel Generator, Engine Mdl: C32, 1250 KVA, 1000KW, S/N G1G05236, 73 Hours w/ Enclosure, 252” O.A.L. x 108” O.A.W. x 114 I.H. & 2100 Gallon Tank In Base

CRYSTAL PULLERS

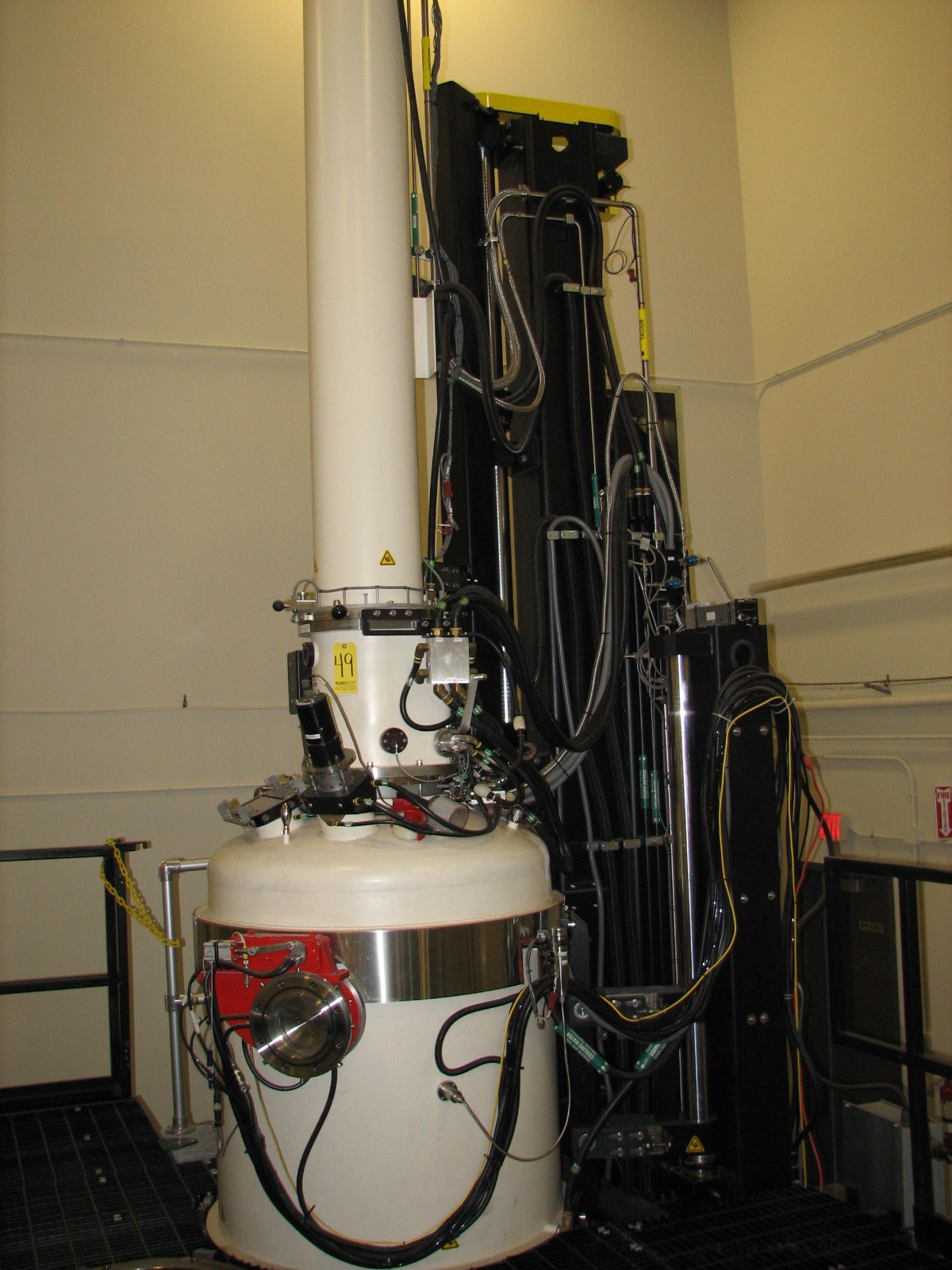

– (2) Kayex 150 Mono-Crystalline Batch Pullers, Complete With Control System, Vacuum Pump, Filters, Power Supply & Platform (No Hot Zone Components)

GRINDERS

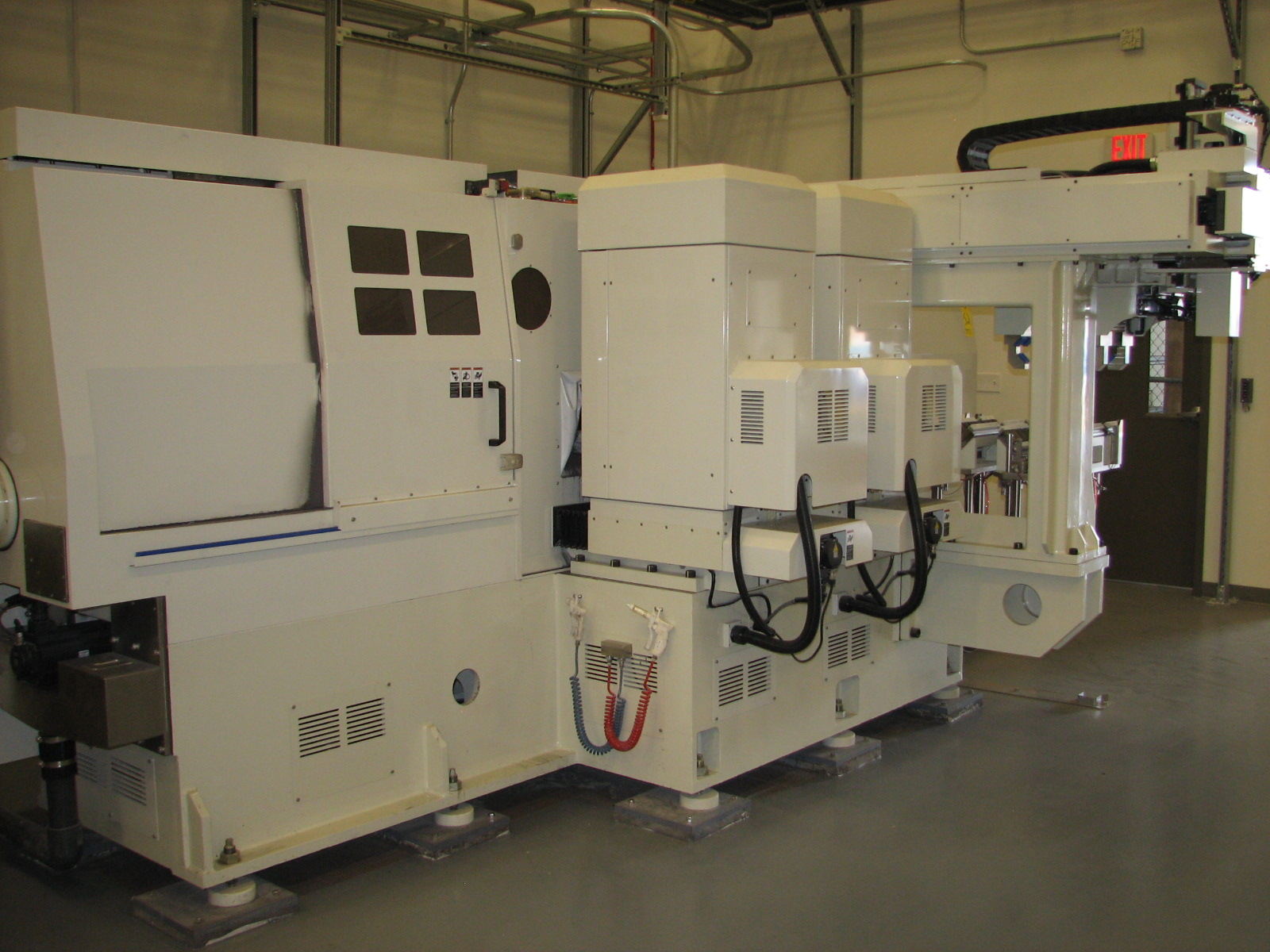

– (2011) Okomoto High Precision PV Ingot Grinding Machine: Process Capability: Ingot Diameter:  150 – 220 mm; Ingot Length: 150 To 500 mm; Ingot Width: 125 And 156 mm; Loading System: Number Of Stocker: 3; Max Ingot Size:  220×500 mm; Handler Horizontal Stroke: Max. 1000 mm; Handler Vertical Stroke: Max. 300 mm; Handler Horizontal Speed: Max. 20000 mm/Min; Handler Vertical Speed: Max. 6000 mm/Min; Coarse Grinding Spindle – Used For Surface & Radius Pre-Grinding: Number Of Spindle: 2; Outer Dia. Of The Grinding Wheel:  250 mm; Spindle Rotation Speed: Max. 4,000 Min-1; Spindle Travel Horizontal: Max. 100 mm; Spindle Travel Vertical: Max. 110 mm; Spindle Feed Rate Horizontal: Max. 6,000 mm/Min; Spindle Feed Rate Vertical: Max. 500 mm/Min; Fine Grinding Spindle – Used For Surface & Radius Finish-Grinding: Number Of Spindle: 2; Outer Dia. Of The Blade:  250 mm; Spindle Rotation Speed: Max. 4,000 Min-1; Spindle Travel Horizontal: Max. 100 mm; Spindle Travel Vertical: Max. 110 mm; Spindle Feed Rate Horizontal: Max. 6,000 mm/Min; Spindle Feed Rate Vertical: Max. 500 mm/Min –

– (2011) Okomoto High Precision PV Ingot Squaring Machine: Process Capability: Ingot Diameter: 150 –  230 mm; Ingot Length: 150 To 500 mm; Ingot Width: 125 And 156 mm; Loading System: Number Of Stocker: 3; Max Ingot Size:  230×500 mm; Handler Horizontal Stroke: Max. 1000 mm; Handler Vertical Stroke: Max. 300 mm; Handler Horizontal Speed: Max. 20000 mm/Min; Handler Vertical Speed: Max. 6000 mm/Min; Squaring Spindle – High Precision Spindle Unit For Ultra-Fast Cutting Process Without Loss Of Accuracy:  Number Of Spindle: 2; Outer Diameter Of The Blade:  550 mm; Spindle Rotation Speed: Max. 1800 Min-1; Spindle Motor: 9 Kw;

BANDSAWS

– 36” Tannewitz Mdl: G1NE Band Saw:  Size (Wheel Diameter): 36”,  Under Guide Capacity: 16”, Throat Capacity: 35-1/2”, Base Construction: Weldment, Band Width Capacity: Up to 2”, Band Length: 20 Feet – 0”,Band Speed: 2800 – 6000 FPM, Wheel Type: Heavy Duty Balanced Steel Disk, Tires (Replacement): Rubber Speedi-Change, Upper Wheel Adjustment: 5”, Brakes: Automatic Electric 2 Wheel, Hydraulic Adjustable Guide Post: Table Size:  32” X 41” Hydraulic Powered w/16 Inch Travel w/uhmw Wear Strips and Stops, Ban Tension: Hydraulic to Handle 550 PSI, Guides: Stainless Steel Tannewitz (R0419AS), Motor: 10 HP, TEFC, Drive: Belt Driven System, Electrics: To NFPA 79 Standard 440/3/60-50, Sump Coolant Pump: In Base of Machine

– Meyer Burger Mdl: BS 805/2 Band Saw: Length Of Sawing Band: 8910 mm; Multi Bricking: Max. Workpiece Dimensions [mm] – 890 × 890 × 740; Workpiece Weight [Kg] – Max. 1000; Clamping – Foaming/Vacuum; Multi Cropping: Max. Workpiece Dimensions [mm] – 125/156; Workpiece Weight [Kg] – Max. 1000; Clamping – Mechanical; Mono Squaring: Max. Workpiece Dimensions [mm] – Max. Height 650; Workpiece; Diameter [mm] – Max. 320; Workpiece Weight [Kg] – Max. 1000; Clamping – Gluing; Mono Cropping: Max. Workpiece Dimensions [mm] – Max. Length 2500; Workpiece Diameter [mm] – Max. 320; Workpiece Weight [Kg] – Max. 400; Clamping – Mechanical.

FURANCE

– (1996) 8” MRL 1624 2-Stack Large Bore Diffusion Furnace:  Wafer size: 8″,   Quartz Diffusion Tubes: 10.5″ ID, Upper tube: Black Max Element: 200°C to 1200°C, S/N 400-929042 Configured For High Temperature Oxidation Lower tube: Aztec Helix Element: 400°C to 1300°C, S/N 044-9319815 Cr-Al-Fe Wire For Continuous High Temperature Cycles Above 1150°C; Dual Argus Gas Control Modules; MFC Configuration: Upper Tube UNIT MFCs:  4; 0 to 1 SLM O2; 0 to 10 SLM O2; 0 to 30 SLM 10% H2/N2; 0 to 30 SLM N2; Lower Tube UNIT MFCs: 2 – 0 to 30 SLM N2; 0 to 30 SLM 10% H2/N2

HEAT EXCHANGERS

– (3) (2011) Sondex Heat Exchangers, Mdl: S100, Test Pressure 195 PSI, 200 Deg, 150 PSI, Area 4,854.52 sqft, S/N’s 13768, 13767, 13769 w/ Associated Valves & Pipe

DUST COLLLECTOR

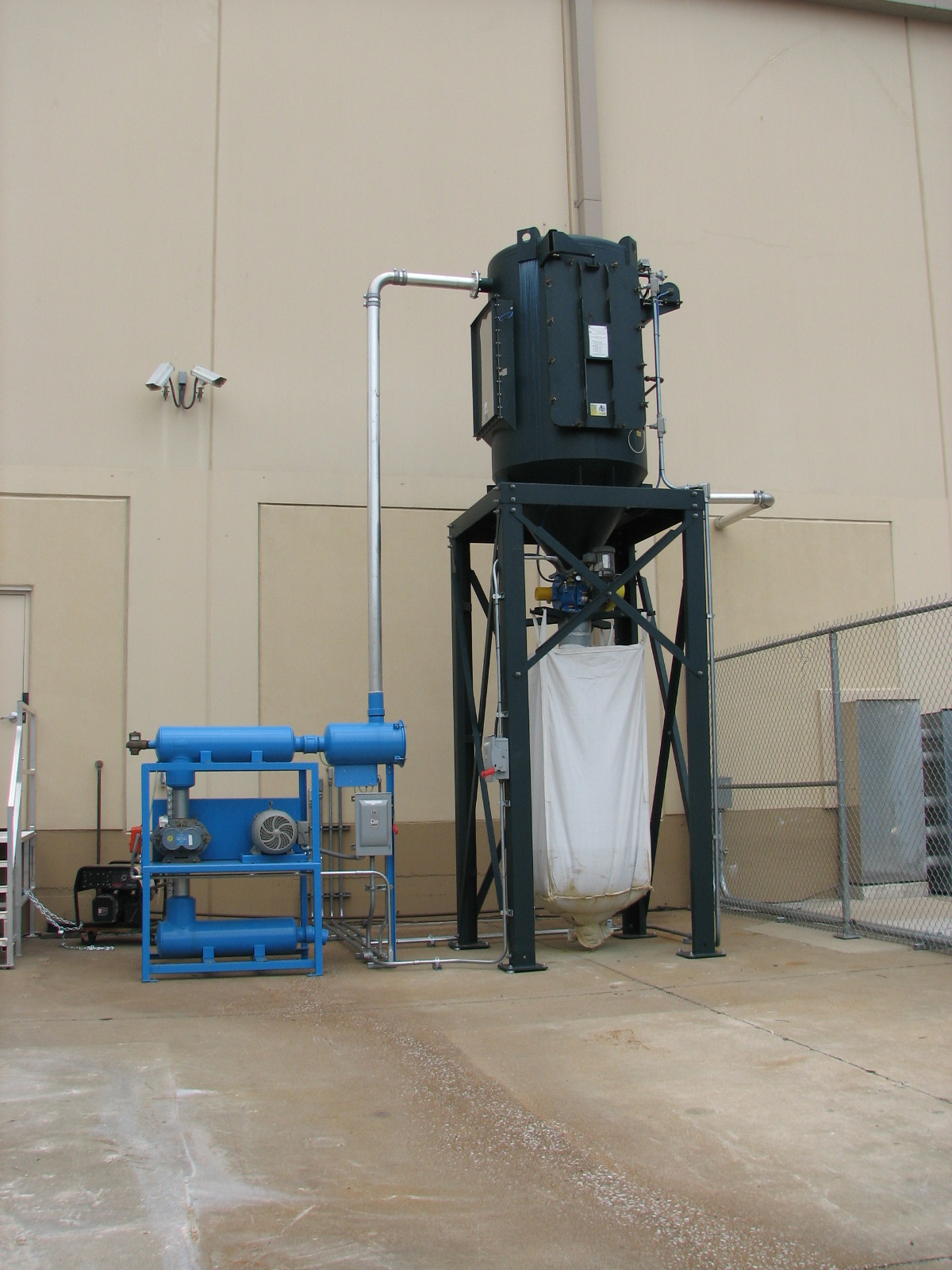

– Camfil/Farr Dust Collector System w/ Smoot Filter & Controls

COOLING TOWER

– Evapco Cooling Tower w/ Structure

PUMPS

– (2) Armstrong Pumps, Mdl: 12x12x17 43TCZ, 4200 GPM, 200Hp 1200 RPM (photos 57B & 57C)

– AMT Submersible Pump (New), Mdl: 5780-98, 1/2 HP, 3450 RPM, Single Phase

AIR COMPRESSORS

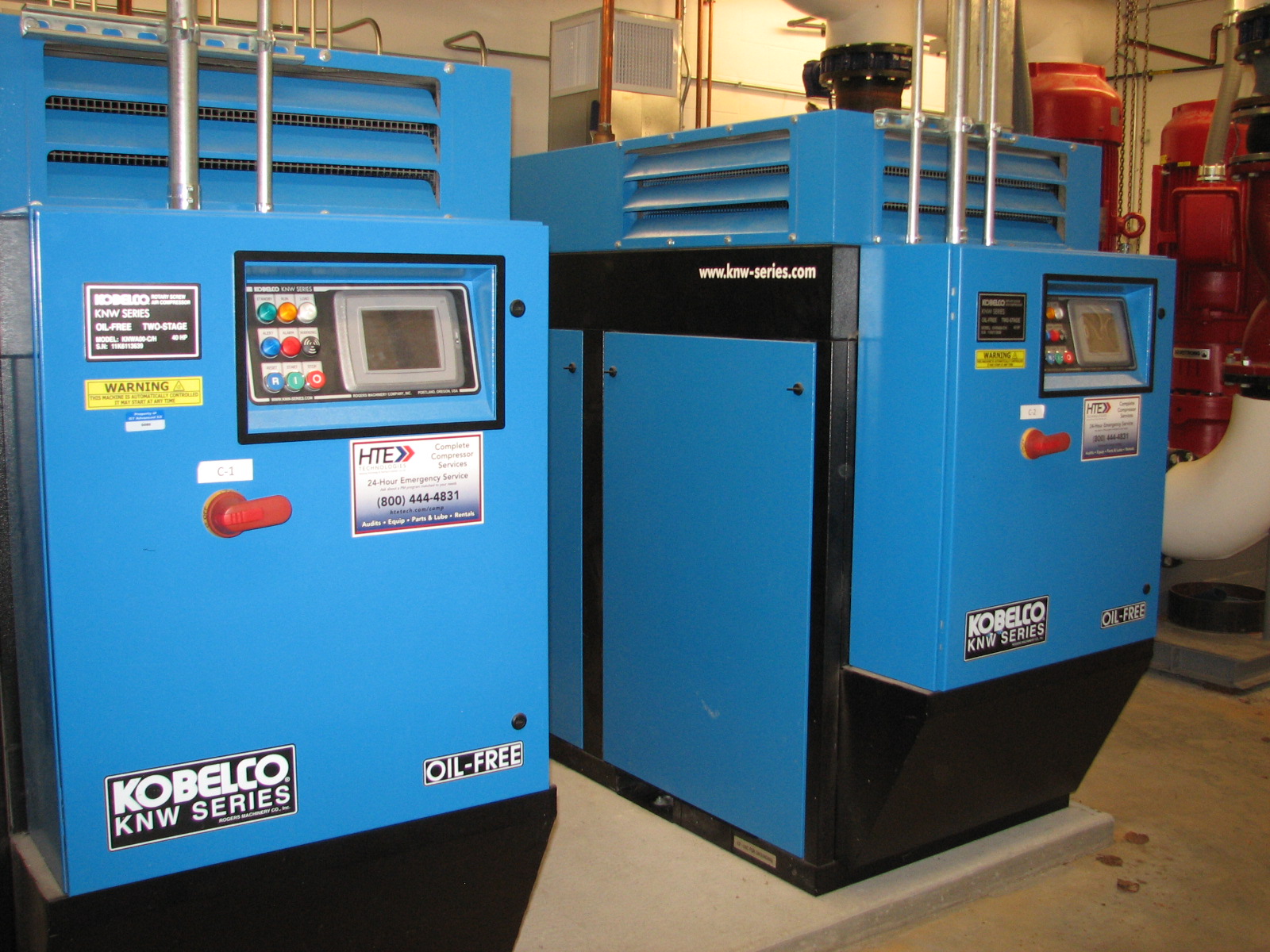

– (2) Kobelco Air Compressors KNW Series Mdl: KNWAOO- CH, 40 Hp S/N 11K6113638 (photos 57D & 57E)

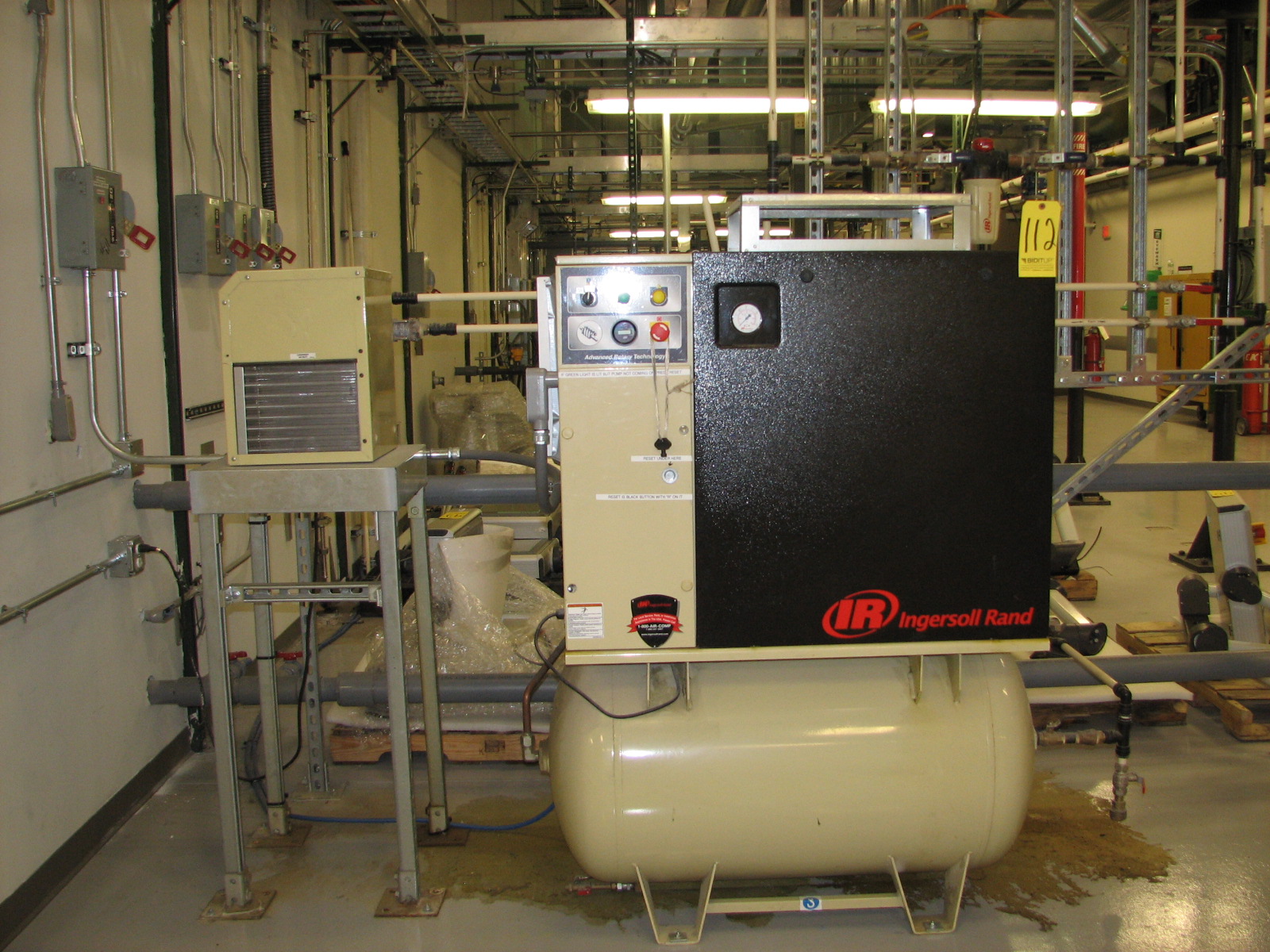

– Ingersoll Rand Air Compressor, Mdl: UP6-5-125, S/N UQ3109U10265, w/ Dryer

FILTRATION SYSTEM

– Lakos Filtration System, Mdl: TCX- 0525-ABV/PE

AIR CONDITIONERS

– (4) Trane Air Conditioners Mdl: GEVE06041E01AOTL0010000

– (3) Friedrich Air Conditioners

TRANSFORMERS

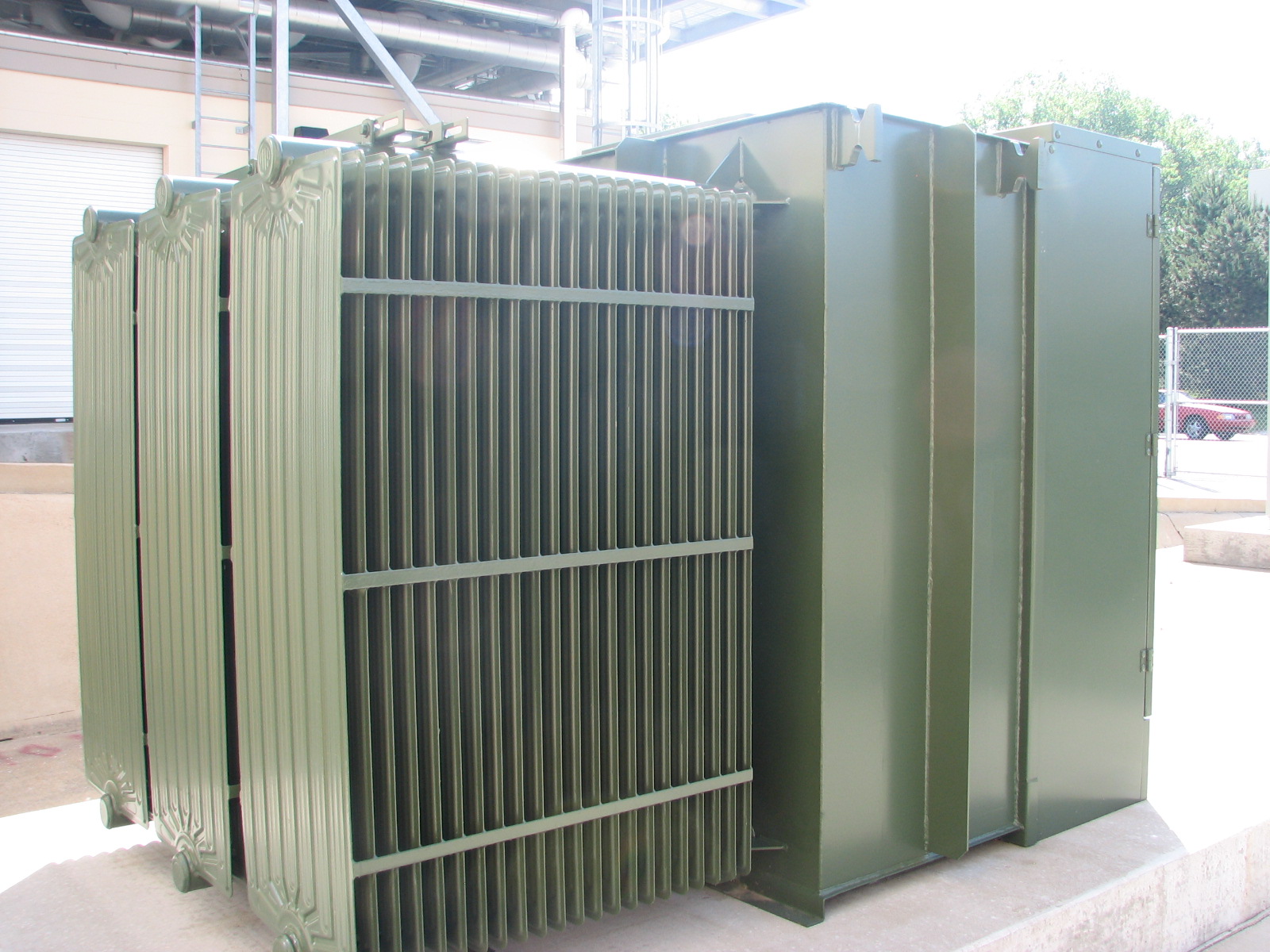

– 7500 KVA 3 Phase Pad Mounted Transformer

– 3000 KVA 3 phase Pad Mounted Transformer

– 2000 KVA 3 Phase Pad Mounted Transformer

– (2) Siemens 75 KVA Transformers, 480 primary, 280Y/120V Secondary (Electrical Folder)

Square D 30 KVA Transformer NVA 480, LV 208Y/120(Electrical Folder)

ELECTRICAL

– (2) (2011) Siemens Main Breaker Panel

– (2) (2011) Nepsi 480 Harmonic Filter Bank

– (2) (2011) Siemens 4 Section Switch Board

– (2) (2011) Siemens 5 Section Switch Board

– (2011) Emerson ASCO Power Transfer Switch

– (2011) Siemens 2 Section Switch Board

– (2011) Siemens Main Breaker Panel

– (3) (2011) Siemens Panel Board Type P3

– (2011) Siemens Panel Board Type P1

– GE Evolution Series E900 MCC,2 Sections, 9 Buckets, 600 Amp

– Siemens 7 Section MCC Tiastar

– Siemens 5 Section MCC Tiastar

– (2) (2011) Siemens Tiastar 3 Sec. MCC’s, 12 Buckets

– Siemens Tristar MCC

– (18) 150KW SCR Controlled DC Power Supply

– (40)Siemens Heavy Duty Safety Switches, 30A, 600 VAC, 250 VDC

– (4) 100 Amp Safety Switches – 2 Siemens & 2 GE

– (5) 60 Amp Safety Switches – 4 GE & 1 Square D

– (6) GE 30 Amp Safety Switches

– (2) HICZ Inverter Panels

ROLLING STOCK

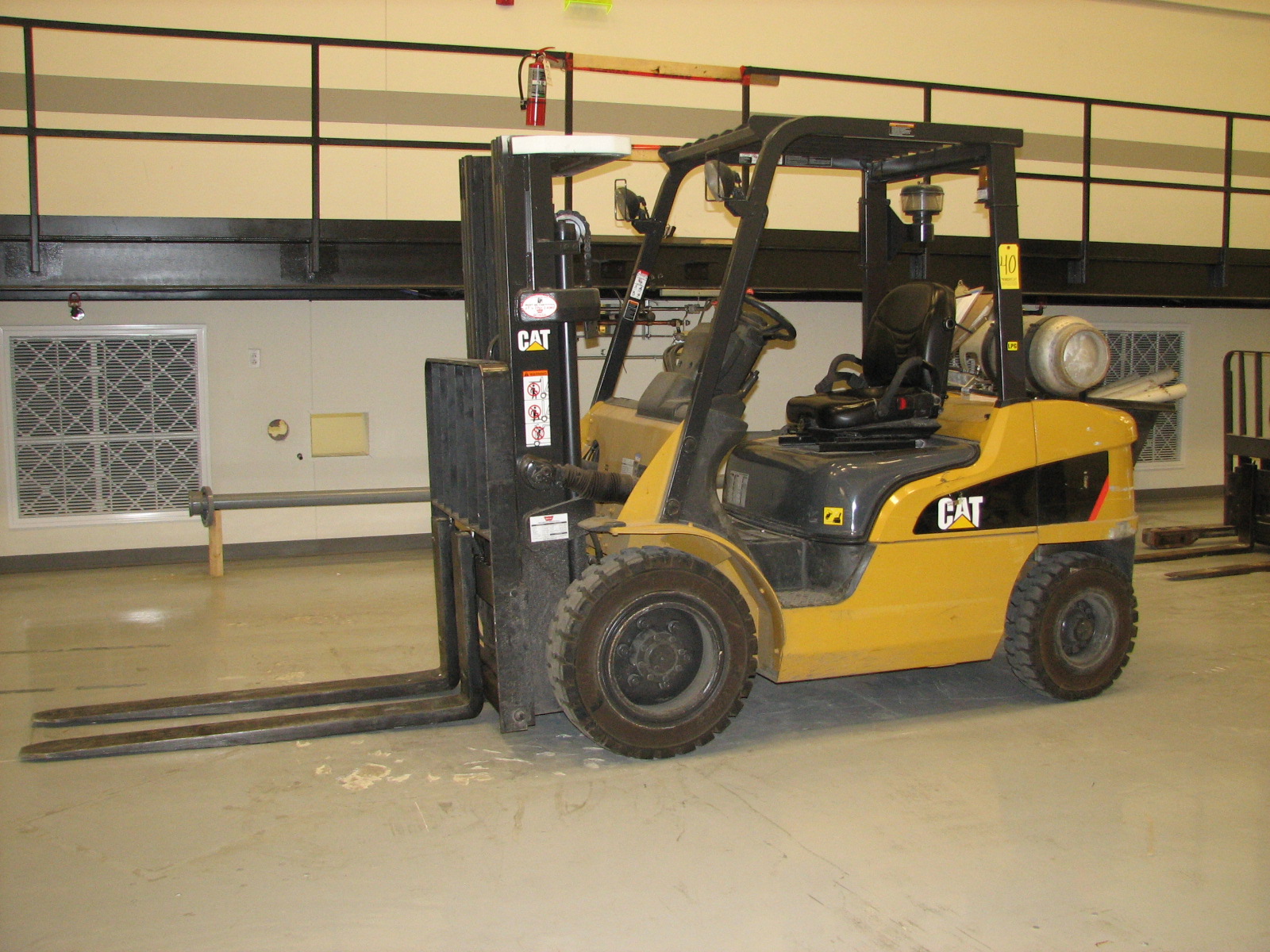

– Cat Forklift, Mdl: P6000-LP, S/N AT13F11356, 3-Stage, 171 Hgt, Solid Tire, Lp, Side Shift, 60″ x 5″ Forks, 3700Hrs

– Crown Order Picker, Mdl: RD3040-30-S, S/N 1A133117, Extending Forks, Side Shift, 42″ x 4″ Forks w/ Hobart Accu-Charger

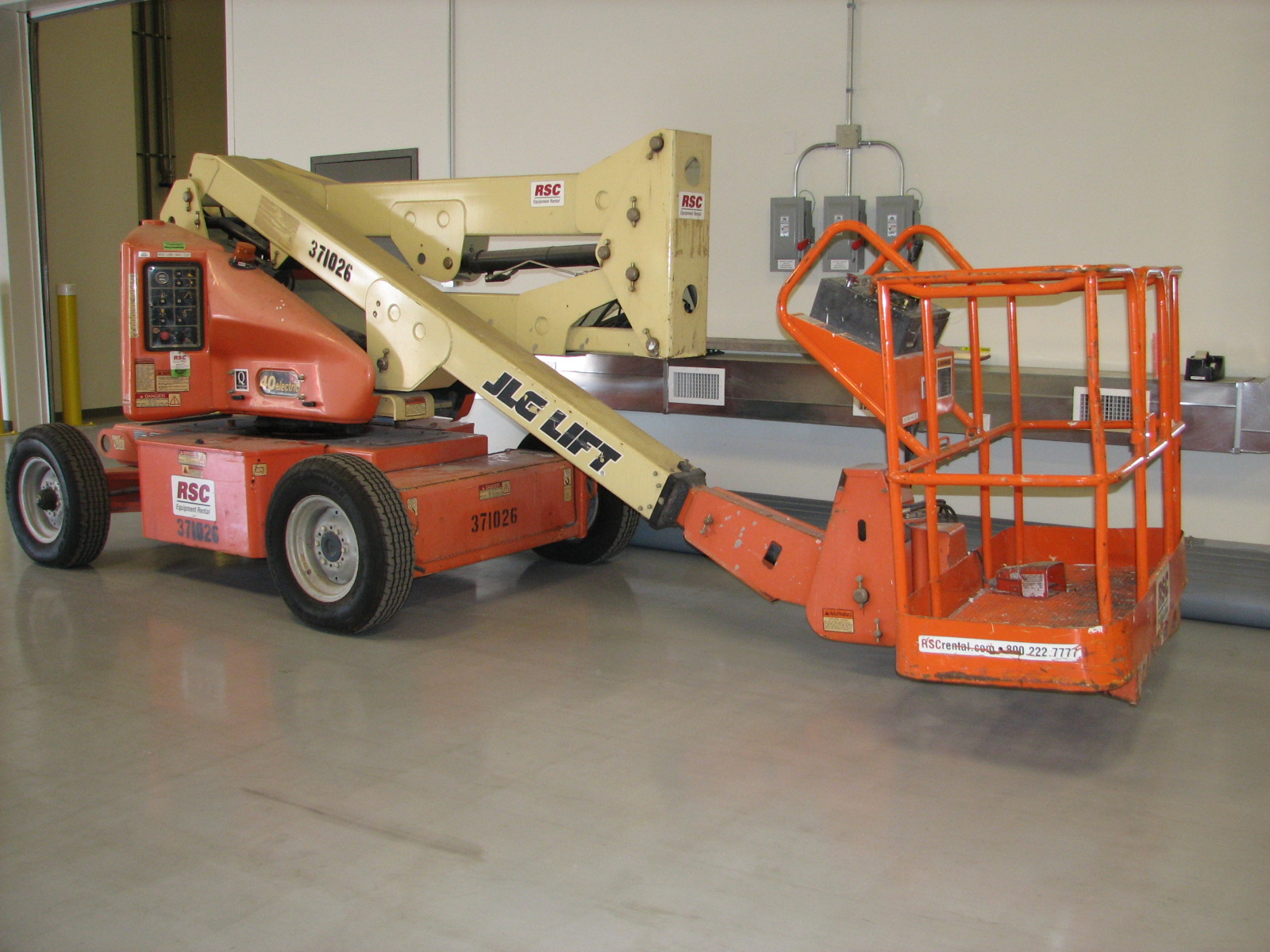

– JGL Man Lift, Mdl: 40-Electric, S/N 03000 56220, Approx. 1600Hrs (Needs New Front Drive Motor)

– Genie GS-262 Scissor Lift, Electric, Approx. 500Hrs

– Yale Walk Behind Pallet Lift, Electric, Mdl: MSN030SCN12TV092, S/N B820N02671W, 12 Volt, Side Shift, 42″ x 4″ Forks

– Jungheinrich Electric Walk Behind Pallet Lift, Mdl: EJE120, 45″ x 7″ Forks

– Big Joe Electric Walk Behind Pallet Lift, Mdl: PD1-2024-P6, S/N: 4413093, 2000# Cap, 72″ Lift Hgt

– (3) Central Hydraulic Scissor Table Carts, 1000# Cap, 11″ – 34 1/2″ Hgt, 32″ x 19″ Table (Tops Added For Use As Roller Conveyor)

– CE 6600# Pallet Jack, 21″ Wide, 48″ x 6″ Forks

– TUV 5500# Cap Pallet Jack, 27″ Wide, 48″ x 6″ Forks

CRANES

– Jet Hydraulic Shop Crane, Mdl: JHC-200X, 4000# Cap

– Central Machinery Gantry Crane, Mdl: 66273 w/ Chicago Electric 1100# Cap Electric Hoist, Single Phase

– Gorbel Free Standing Crane System, 1000# Cap w/ Harrington 1/2 Electric Hoist, Single Phase, 35′ x 25′

– 2-Ton Chainfall w/ Trolly + Beam

VACUUM & BLOWER SYSTEMS

– (2) Tuthill Vacuum & Blower Systems, Mdl: KT500

 MISC

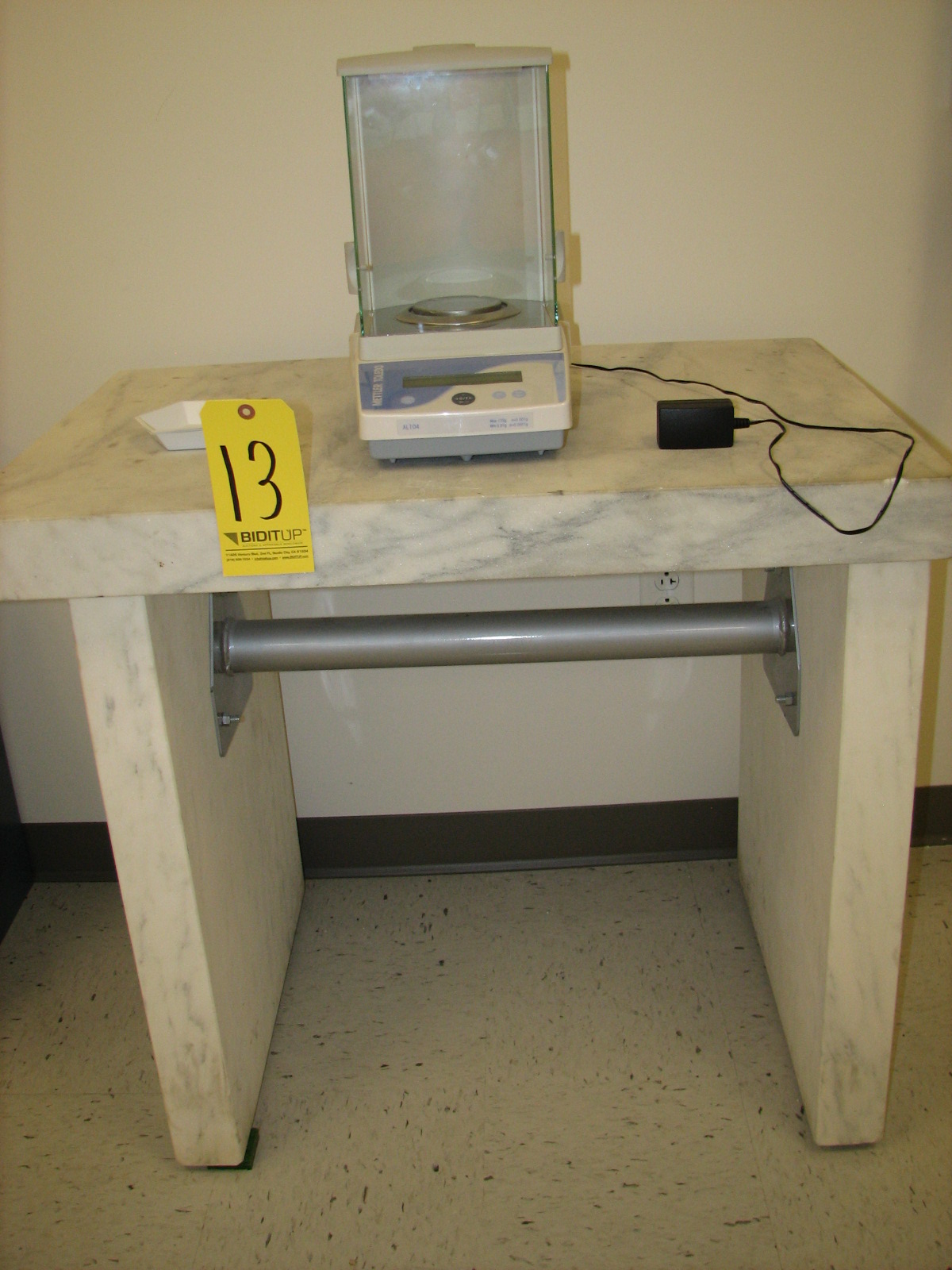

(20+) Control Cabinets; Craftsman Rolling Tool Box; (7) Husky Rolling Tool Boxes; Milwaukee Sander, Mdl: 9096; Craftsman 5/8” Scroller Saw; Black & Decker Scroller Saw; Mettler Toledo AL-104 Scale w/ Granite Table; Doran & A & D Scales; Hytrol Roller Conveyor; Cotterman & Ballymore Rolling Stairs, (8) Werners Double Side Step Ladders; Flame Cabinets



AND MUCH MORE!!!
