Global Private Treaty Sale #2 By Order of Phillips Respironics

(1) Alliance Aquamaster CB-1800E Conveyorized Parts Cleaning System and (2) FANUC Robodrills Alpha D21MiA5.

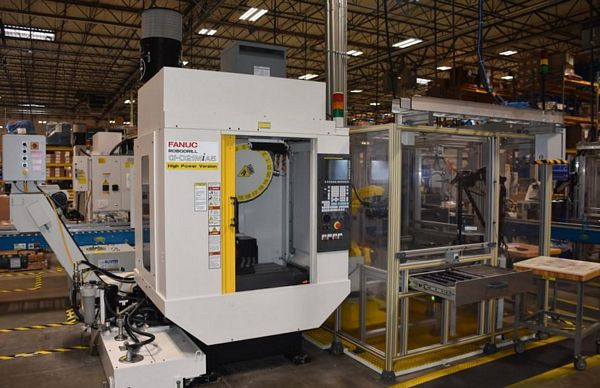

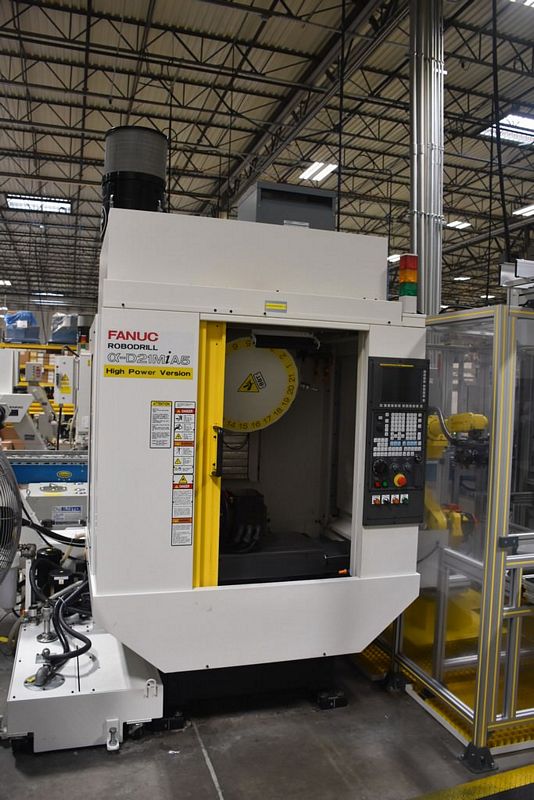

2016 Alpha D21MiA56 – QTY: 2

  • Fanuc 31i-B5 CNC Control:
  • 24,000 RPM High Torque Spindle:
  • Fanuc DDR 4th Axis High Speed Indexer:
  • 21-Station Automatic Toolchanger:
  • Automation Package:

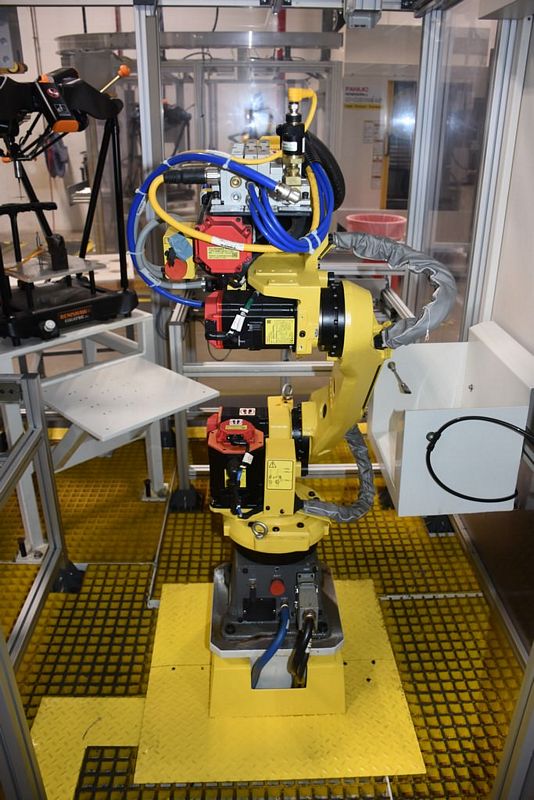

  • Fanuc M-10iA 6-Axis Robot with R-30iB Controller:

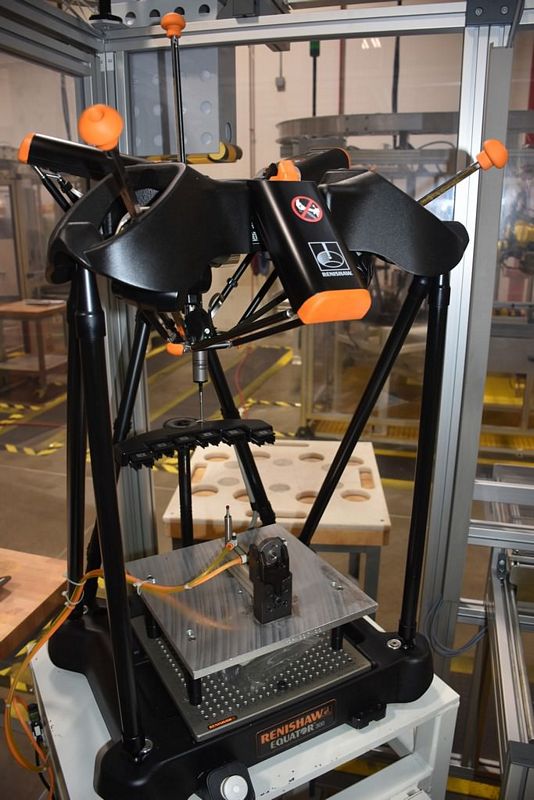

  • Renishaw Equator Gauge:
  • Fanuc IRVision 2D Camera:



Capacity

  • X-Axis Travel: 19.68″
  • Y-Axis Travel: 15.74″
  • Z-Axis Travel: 12.9″
  • Table Working Surface: 15.7″ x 25.6″
  • Max Table Load: 660 Lbs
  • Max Distance Spindle to Table Top: 18.9″
  • Spindle Speeds, Inf Variable: 100-24,000 RPM
  • Max Spindle Speed for Tapping: 5,000 RPM
  • Spindle Taper: BBT30 (BIG PLUS)
  • Rapid Traverse (X,Y,Z-Axes): 2125 IPM
  • Feed Rate (X,Y,Z-Axes): 1181 IPM
  • Tool Changer: 21 ATC
  • Tool Change Time: 1.6 Sec Tool-To-Tool

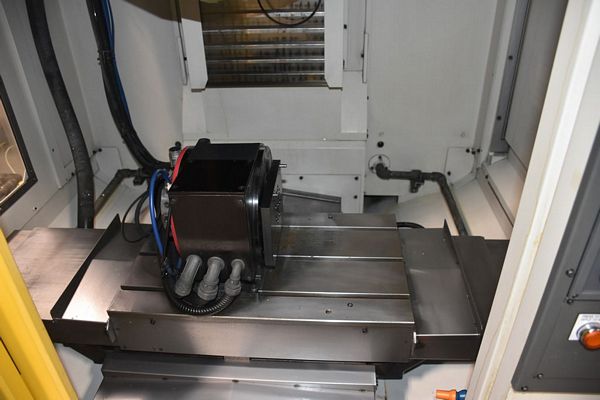

FANUC DDR 4TH AXIS HIGH SPEED INDEXER

  • Maximum Speed: 200 RPM
  • Drive System: Direct Drive
  • Indexing: .001 Degree
  • Index Accuracy: .0028 Degree
  • Clamp System: Compressed Air and Spring
  • Clamp Torque: 500 Nm
  • Load Capacity (Horizontal): 100 kg
  • Center Height: 5.90″
  • Weight: 145.2 Lbs



EQUIPPED WITH:

  • Fanuc 31i-B5 5-Axis CNC Control

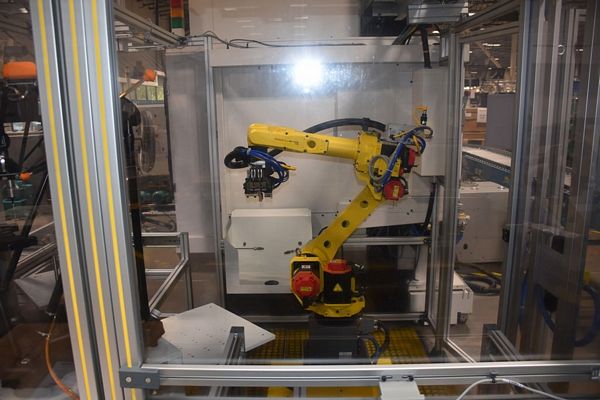

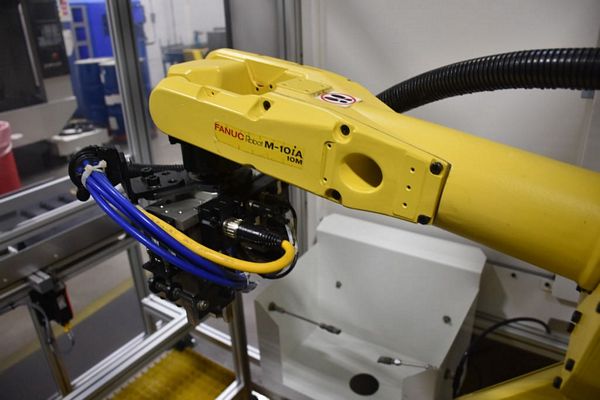

  • Automation Package: (1) Fanuc M-10iA/10M Robot with R-30iB Controller, Side
    by Side Part Infeed/Outfeed Drawer, (1) Fanuc iR Vision 2D Camera with
    Stand, Renishaw Equator, Full Guardingn, 2 Part End of Arm Tool
  • Fanuc DDR High Speed 4th Axis Indexer with Pneumatic Fixture
  • High Pressure Coolant Thru Spindle (500 PSI)
  • Mist Collector (Royal FX900)
  • Chip Conveyor with 50 Micron Filtration
  • Full Guarding
  • 14 HP Spindle Drive Motor

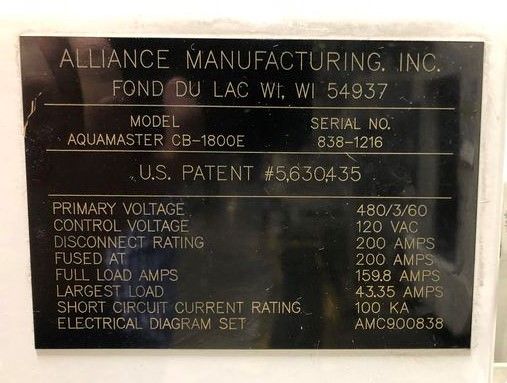

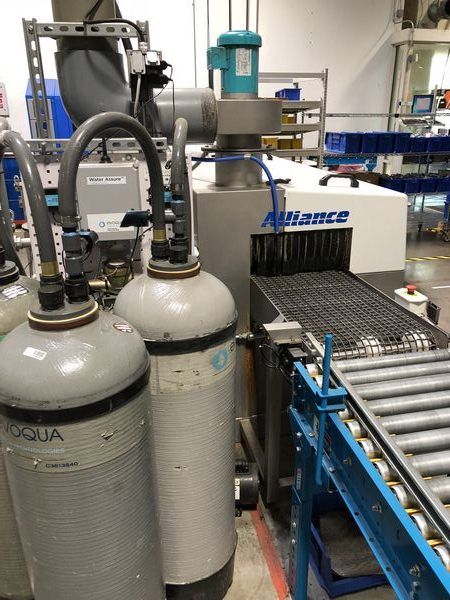

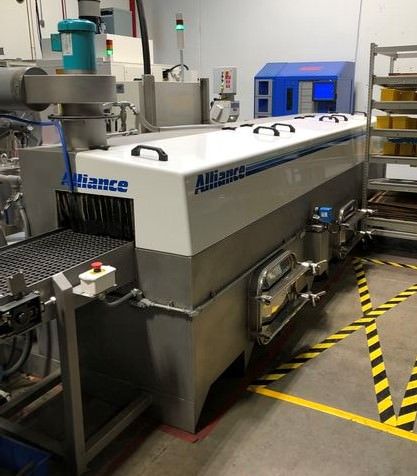

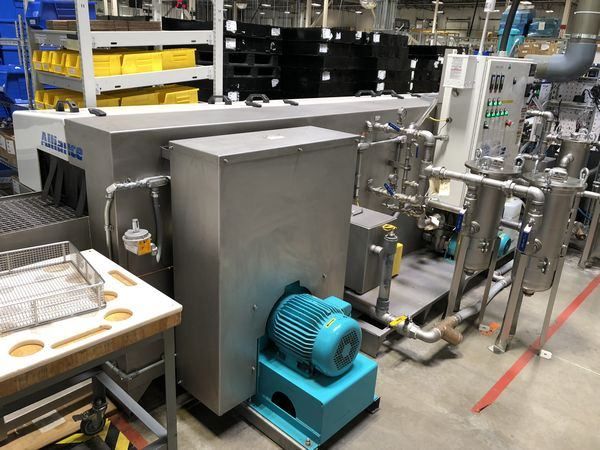

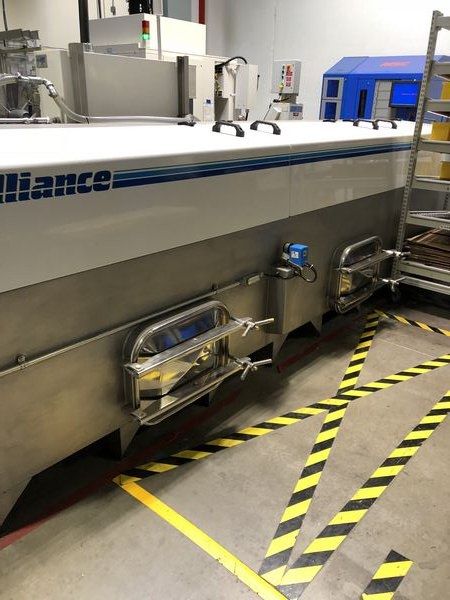

2016 Alliance Aquamaster CB-1800 E

  • Model CB-1800E
  • Age: 2016



FEATURES:

  • Model CB-1800E
  • Age: 2016
  • Wash, Rinse and Heated Blow-Off Modules:
  • Conveyor System:



MACHINE SPECIFICATIONS:

  • Overall Length: 237″
  • Overall Width: 72″
  • Overall Height: 72″
  • Load/Discharge Height: 35″
  • Production Rate (Estimated): 450 Parts/Hour (20-30 Baskets/Hr )
  • Production Rate Belt Speed: 1.0 Feet/Min



CONVEYOR SYSTEM:

  • Width: 18″
  • Type: 1″ x 1″ Stainless Steel Belt
  • Motor: Fractional HP DC Gearmotor
  • Conveyor Speed (Inf Variable): 1-6 FPM



WASH MODULE:

  • Tank Capacity: 185 Gallons
  • Pump: 2 HP
  • Pump Rating: 56 Gallons/Min @ 15 PSI
  • Spray Zone Length: 30″
  • Spray Nozzles (Adjustable): Above, Below and Sides of Conveyor
  • Solution Heat: (3) 18 kW Electric Heating Elements
  • Solution Level Control: 2-Position Level Control
  • Filtration: Removable Chip Basket w/ 1/16″ Holes



RINSE MODULE:

  • Tank Capacity: 165 Gallons
  • Pump: 1.5 HP
  • Pump Rating: 46 Gallons/Minute @ 15 PSI
  • Spray Zone Length: 24″
  • Solution Heat: (2) 18 kW Electric Heating Elements
  • Solution Level Control: 2 Position Level Control
  • Operating Tempature: 130 Degrees – 140 Degrees Fahrenheit



HEATED BLOW-OFF MODULE:

  • Dryer Air System Module Length: 48″
  • Blower Motor: 7.5 HP
  • Blower RPM: 3450 RPM
  • Blower Air Volume Rating: 1510 CFM @ 15.1 w c
  • Air Velocity: 14259 FPM (162 MPH)
  • Heat Source: (1) 18 kW Open Coil Duct Heater



EQUIPPED WITH:

  • Wash, Rinse and Heated Blow-Off Modules
  • Conveyor System
  • Stainless Steel Tank and Fiberglass Canopy
  • Parts to Be Washed in 24″ x 16″ x 4″ Baskets
  • Exhaust Fan System
  • Solution Heat Auto-Timer
  • Chemical Injection System

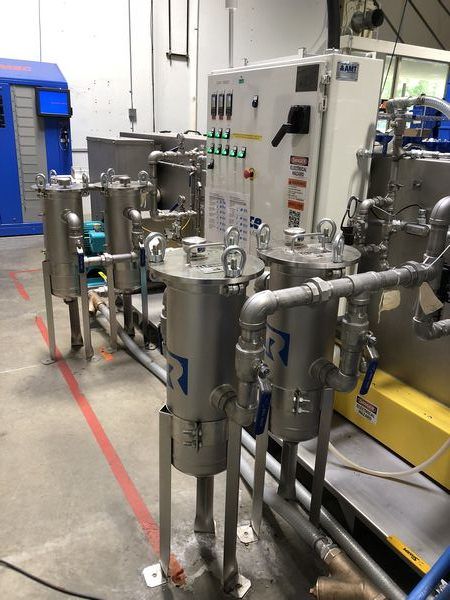

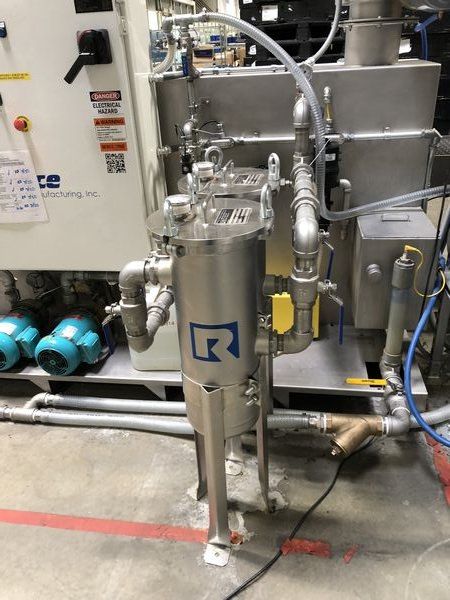

  • Microfiltration, Stainless Steel, Dual Parallel 8″ x 15″ (Wash & Rinse)
  • Oil Skimmer, Belt Type, 1″ Stainless Steel
  • Product Sensor (Photo Eye at Load End)
  • 480/3/60 Electrics
