Key Assets

Never Used/Never Installed Inverters, Transformers, Switchgear, Cable and Wire, Surplus To Operations of Canadian Solar & Recurrent Energy

READY FOR SHIPPING

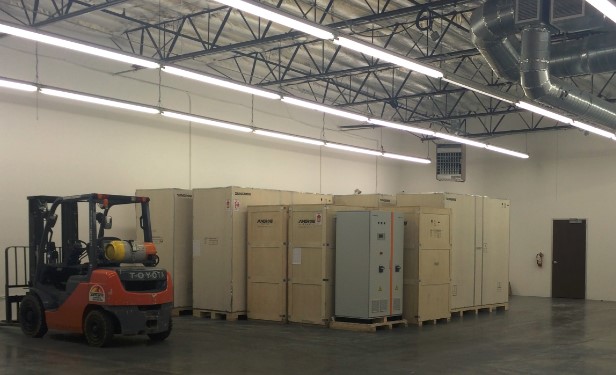

Sungrow Inverters (Milpitas, CA warehouse)

• 6 x 750kW Sungrow Inverters
  Dims: 109”L X 98”H X 45”W
  Weight for each skid: 5,467 lbs

To see a specification sheet for the Sungrow Inverters, please click here:  //www.hgpauction.com/wp-content/uploads/2016/05/PDF-info-sheet-for-HIT-2139355-2139360.pdf

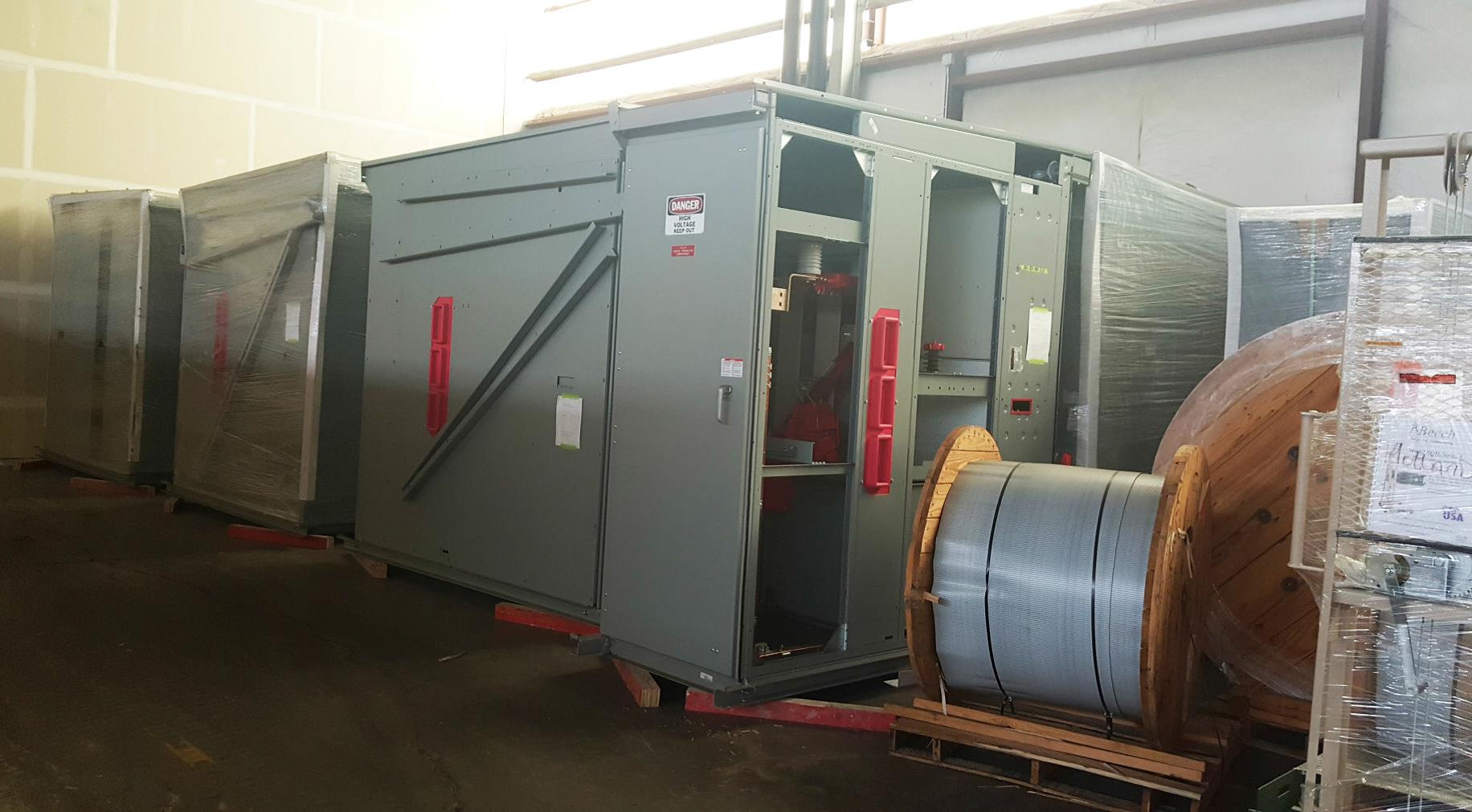

Schneider – MetalClad Switchgear 3 lineups Alternate 1xSEPAM S82 (Pittsburg, CA warehouse)

• Metal enclosed switchgear 1000V HVL
• Breaker lift truck

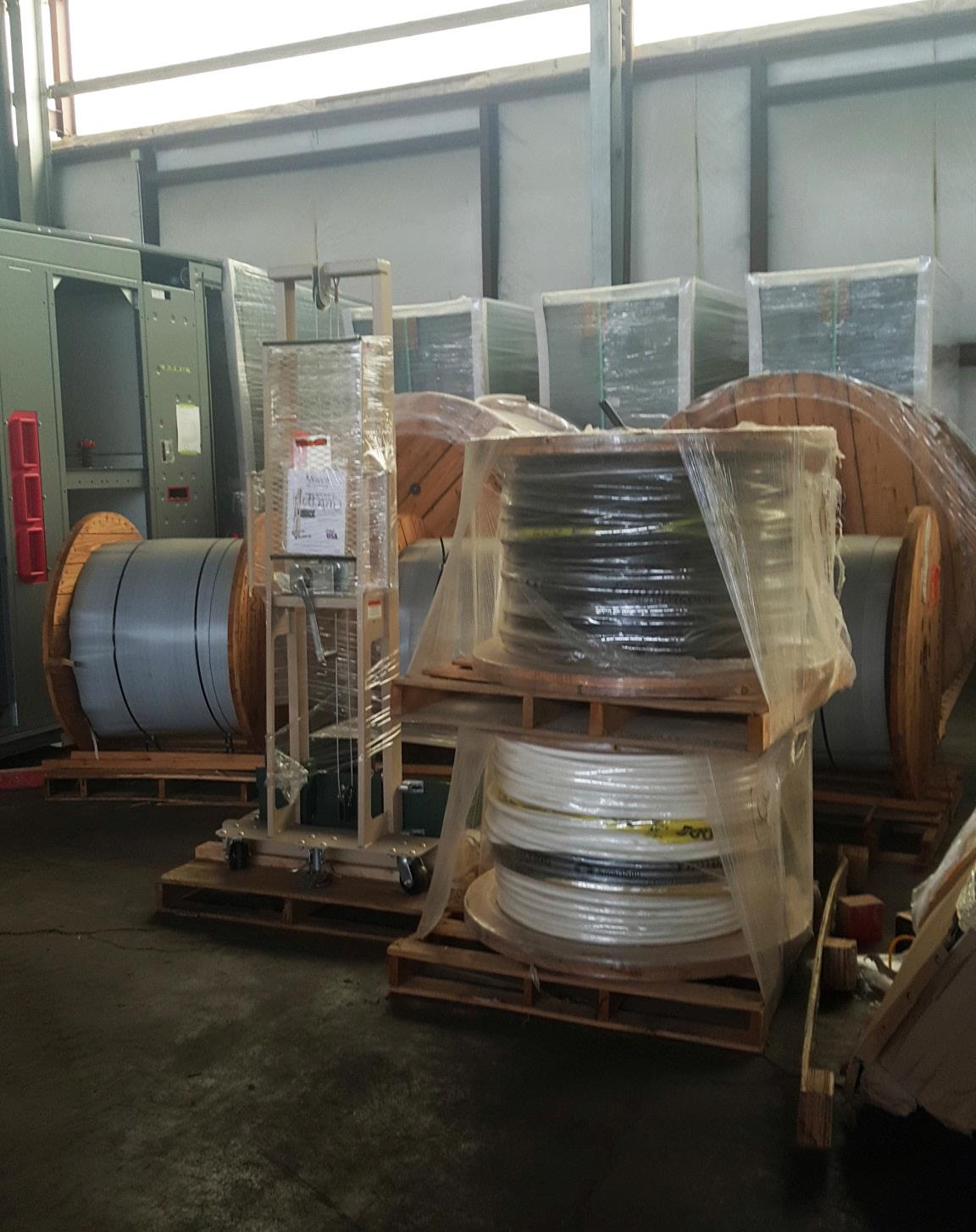

DC Feeders / MV Cable (Pittsburg, CA warehouse)

• #1/0 TYPE MV-105 (AL), CU-CONCENTRIC NEUTRAL – 3 cuts @ 2050’ up to +5% tolerance

• (2) 2kV PV Direct Bury Cable #350 AL – 11,000’ Black, 11,000’ White
• (2) 2kV PV Direct Bury Cable #500 AL – 1365’ Black, 1365’ White

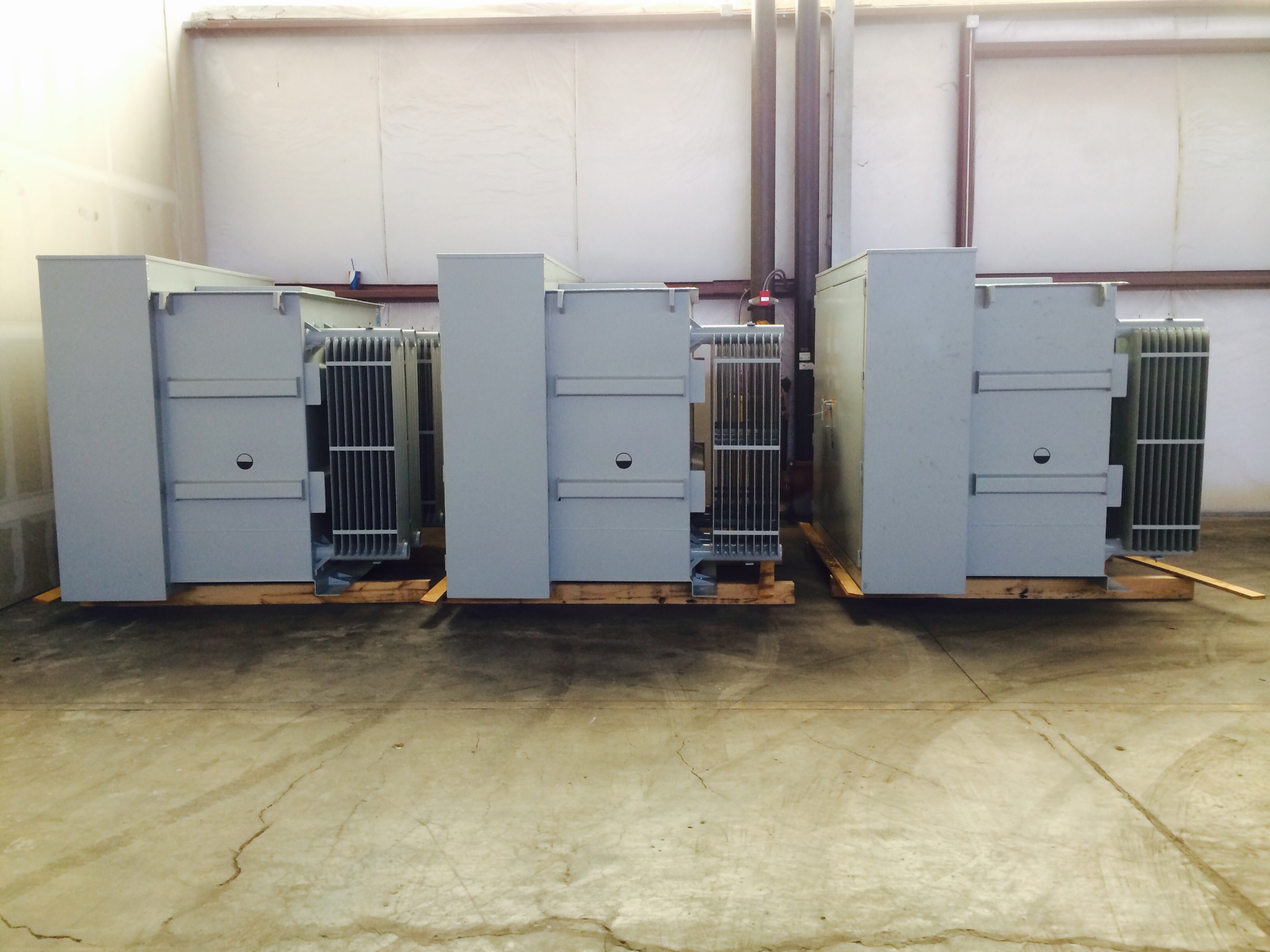

Prolec GE MV Transformers (Pittsburg, CA warehouse)

• 3 x 1500 12 kv Delta – 315Y Dual Winding MV TxFmr
• Serial # M14G23128
• 12000 DELTA – 315Y/182 (2) – 2.5% Above and Below in HV 95 kv BIL 60 Hz
• Dead Front, Loop feed, Six HV Bushing, Staggered LV w/Radiators
• Bayonet Exp. Fuse + Partial Range CLF, Minimum Dims, 24 inch deep Cabinet
• Temp. Rise: 65 °C Bolts: Pentahead IBC Ip 1.5
• Paint Finish: ANSI 70 Gray
• Operation: Step-Up Dual LV Winding Electrostatic Shield:YES Performance: Type of Losses: Guaranteed Pallet:Runners

• NL Watts: 1228 LL Watts: 16175 %Iex: 2.00
• TOC: 37158 Eff 50%: 99.35
• %IZ (HV-LVx): 5.82 %IZ (HV-LVy): 5.87 %IZ (LVx-LVy): 11.72
• Cust Part No: Shipment Est: 9 Weeks Ship To: Georgia
• Accessories: BU: CJ953670 HV: CU LV: AL
  • 1 – Liquid Level Gauge w/Alarm CONTACTS
  • 1 – Handhole 14” x 25”
  • 6 – 200 Amp HV Bushing well removable stud 35KV
  • 6 – 95 kV BIL insert – 200 Amp (15 kV)
  • 4 – 1” Stud type with 8 holes blade 1500A – LV Bushing
  • 4 – 1” Stud type with 4 holes blade 1500A – LV Bushing
  • 1 – Standard Pressure Relief Valve
  • 1 – Thermometer with alarm Contacts
  • 3 – Current Sensing Expulsion Fuse
  • 3 – Partial Range CLF
  • 1 – Vacuum Pressure Gauge w/alarm contacts
  • 1 – 1 inch Drain Valve with 3/8 inch sampler in LV
  • 1 – 1 Switch 2 pos. 300 A
  • 1 – Warning Decal Per Nema fig. 1
  • 2 – Danger Decal Per Nema fig. 2
  • 1 – Standard Nameplate
  • 3 – Flapper Valve
  • 4 – Plastic GRD Connector Plug
  • 1 – Nitrogen Blanket
  • 2 – Jacking facilities
  • 1 – Shradder Valve
  • 1 – Touch Up Paint
