Key Assets

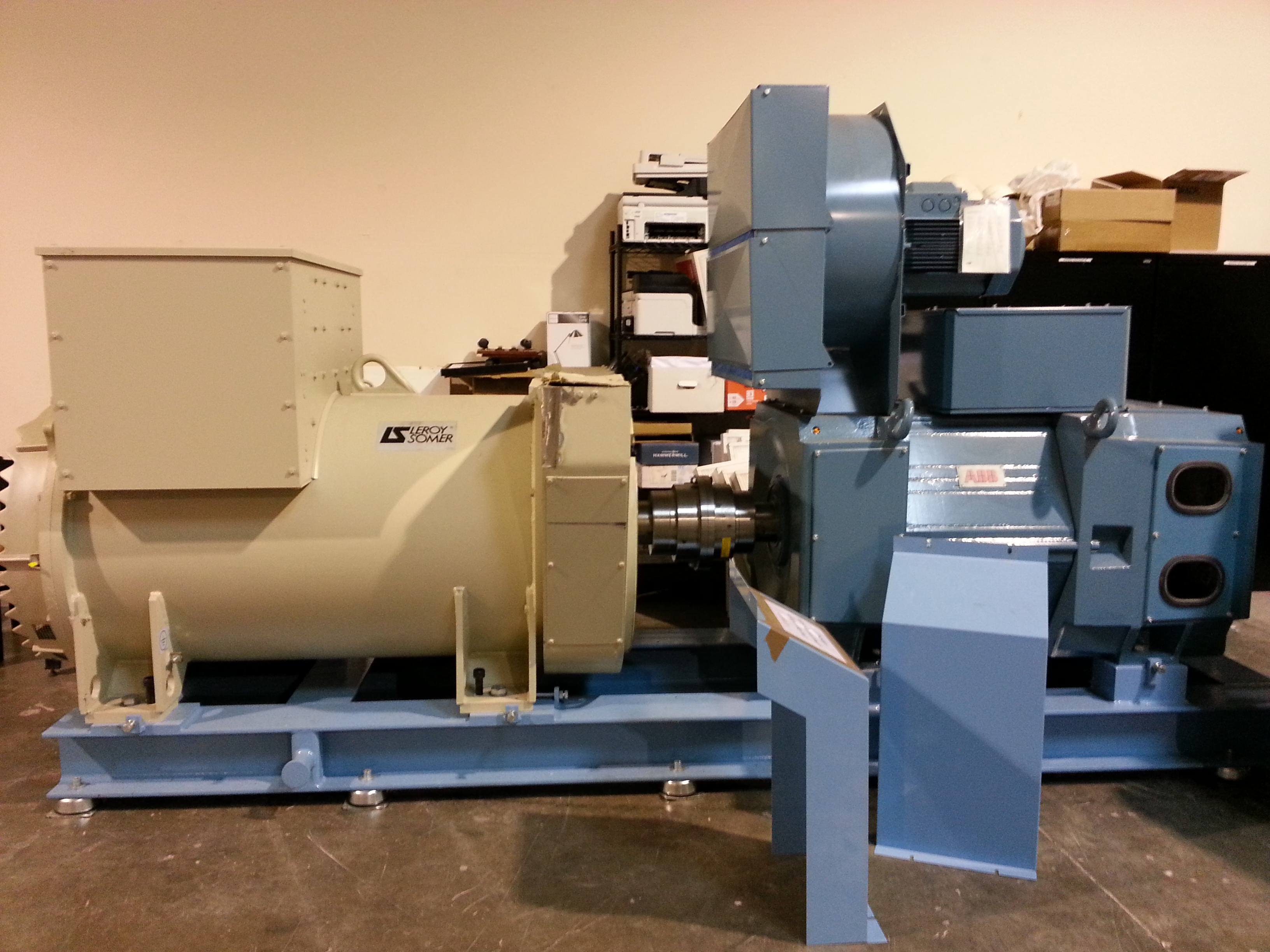

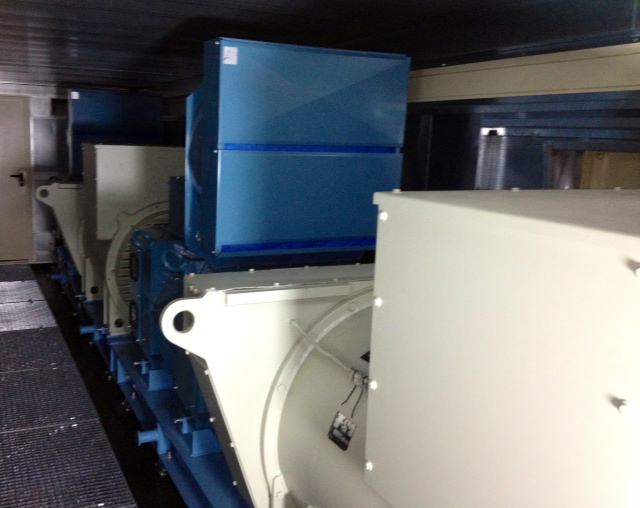

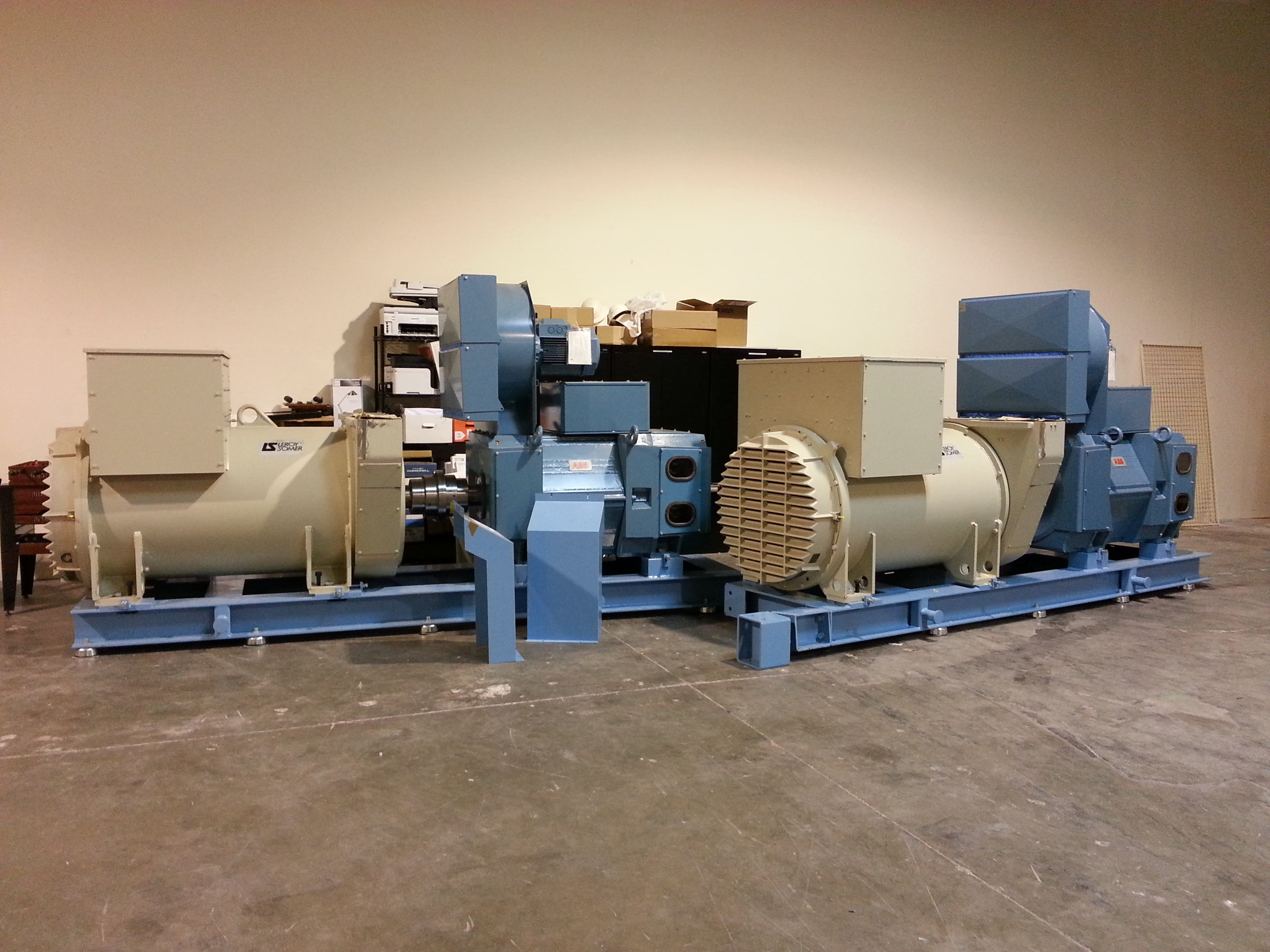

(2) 1250 KW, ABB DMI400T-XJG DC Motor Generator Sets with Leroy Somer LS661-UHE1250KW Synchronous Brushless Revolving Field Generator.

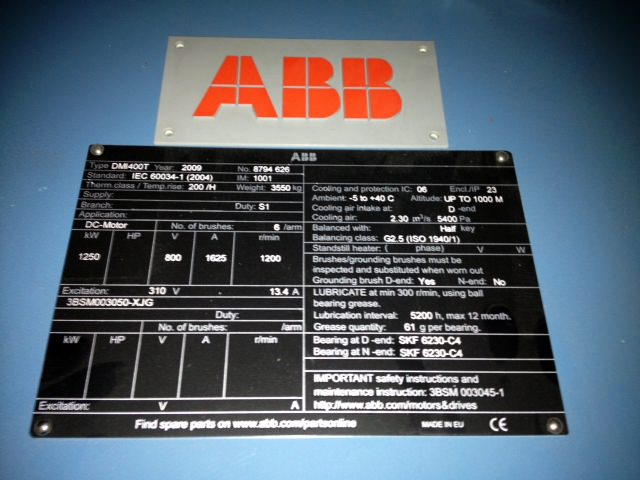

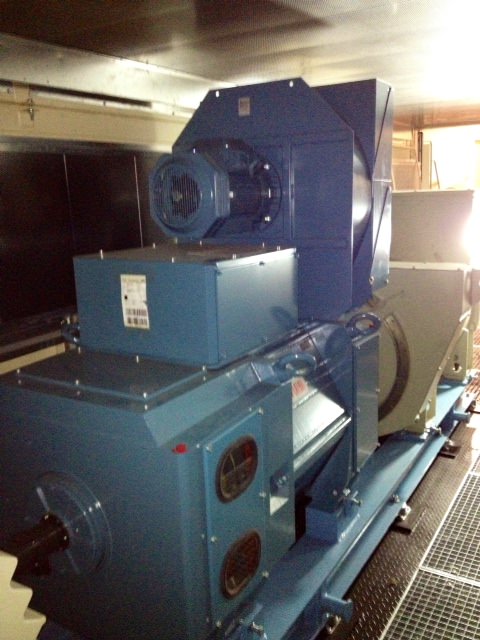

• ABB Motor (2)
  • Type: DMI400T-XJG
  • Catalog No: 3BSM003050-XJG
  • Power: 1250 KW
  • Speed: 1250 min-1
  • Voltage: 800 V
  • Armature: 1625 A
  • Torque: 9947 Nm
  • Efficiency: 95.9%
  • Fan: 2 Speed Mot. 32×440-480v; 60Hz

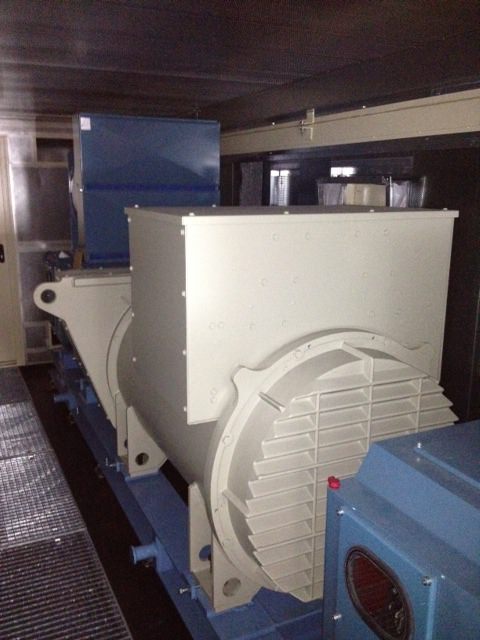

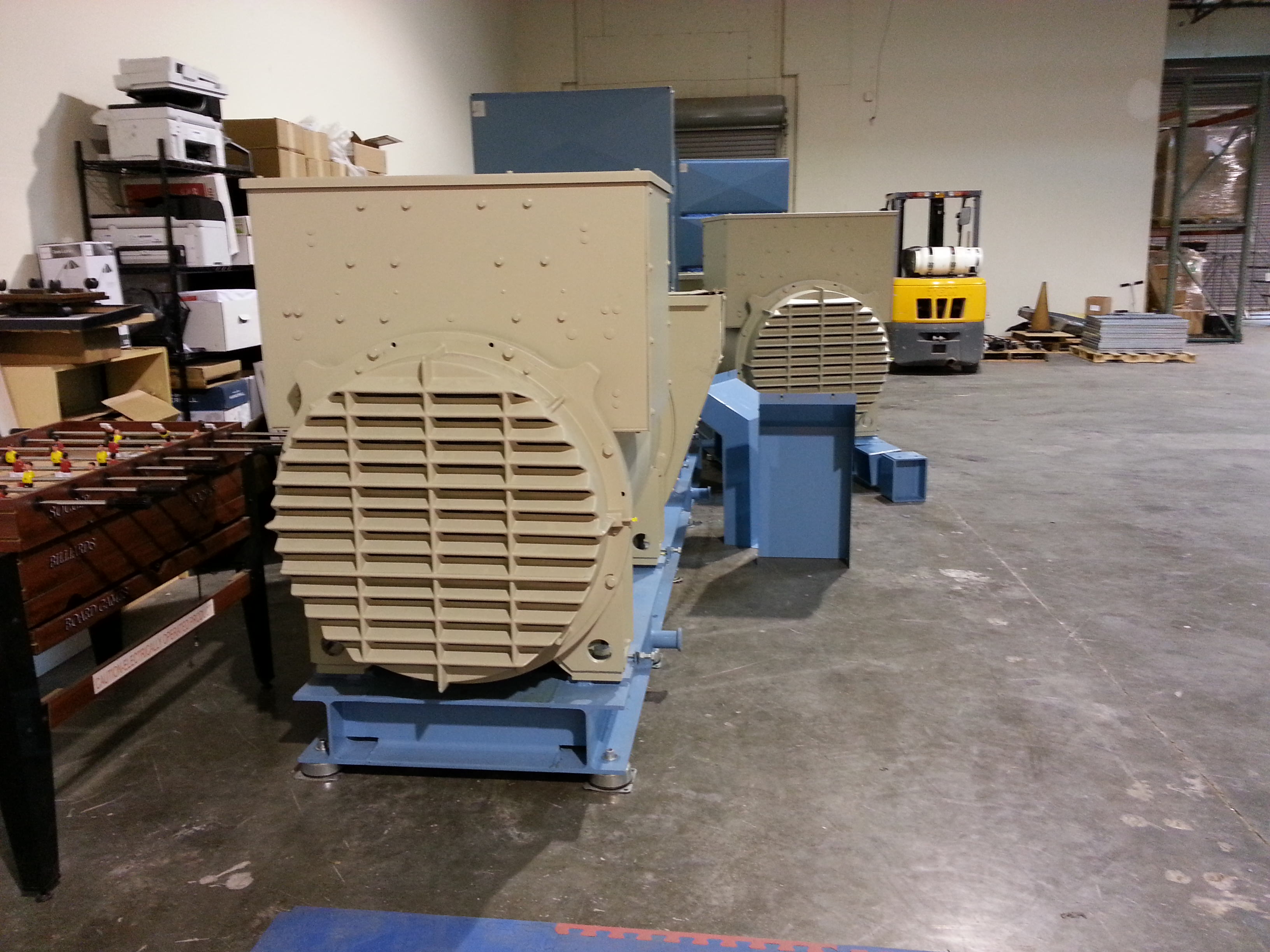

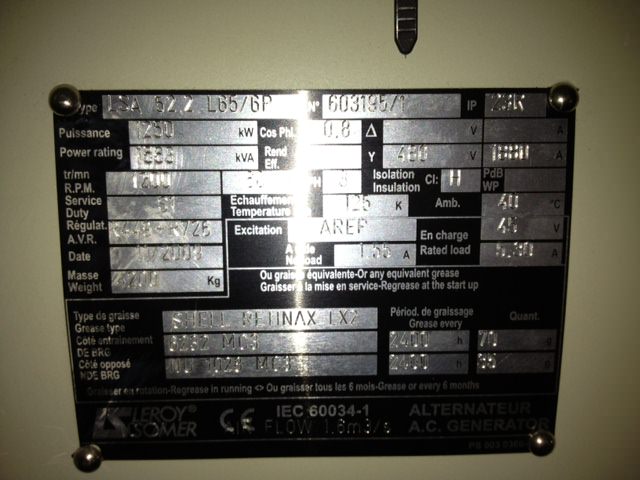

• Leroy Somer Generator (2)
  • Model: LS661-UHE1250KW
  • Type: 6 Pole, 1200 RPM
  • Kilowatts: 1250
  • Power Factor: 0.8
  • KVA: 1562.5
  • Voltage: 480
  • Frequency/ Phase: 60/3
  • Wire/ Connection: 6/ Wye
  • Temperature Rise: 105 C Rise by Res./ 40 C Ambient
  • Duty Cycle: Continuous
  • Insulation Class: Class H
