Key Assets
Complete Tanis Gummy Line!
Including Skids, Vessel Capacities, Process Equipment, Robots, Scales, Lifters, & Supporting Components for Upstream, Cooking, Weighing, Molding, Depositing, Packaging, CIP, Dust Removal, & Cleaning Stages.
Equipment Overview:
- The line includes a full-scale automated gummy production line such as those supplied by Tanis, with individual skids for specific process steps: big bag station, feed screw transporter, buffer and weighing vessels, cookers, vacuumizer, injector/molder, de-stacker and stacker robots, conditioning and de-oiling units, coating (sugar sander), tote tilting, tray washers, and cleaning-in-place (CIP) systems.
- It includes vessel volumes and types (buffer, syrup, acid prep, vitamin, ABS, color, flavor, oil heaters), along with component details for feeding, forming, tracking, conditioning, cleaning, weighing, sorting, and handling that are critical for continuous and efficient gummy manufacturing.
- Utility and support equipment are included: tray washers, dispensing and pallet scales, various hydraulic and vacuum-assist lifters, dust removal vacuums, and condensate return units for process sustainability.
Key Specs Table:
| Skid Description | Equipment Type | Vendor | Capacity/Spec | Code/Model | Building Area |
| Big Bag Station | LIFT | Tanis | – | 2064227-2121-006 | 401 |
| Feed Screw Transporter | FEED | Tanis | 15,000 L/hr | 1.001.0301 | 401 |
| Pre-mix Buffer Vessel | VESS | Tanis | 500 T – 15 DI | T.001.1502 | 401 |
| Syrup Weigher Vessel | VESS | Tanis | 120 T-14 CI | 145700-SYP | 401 |

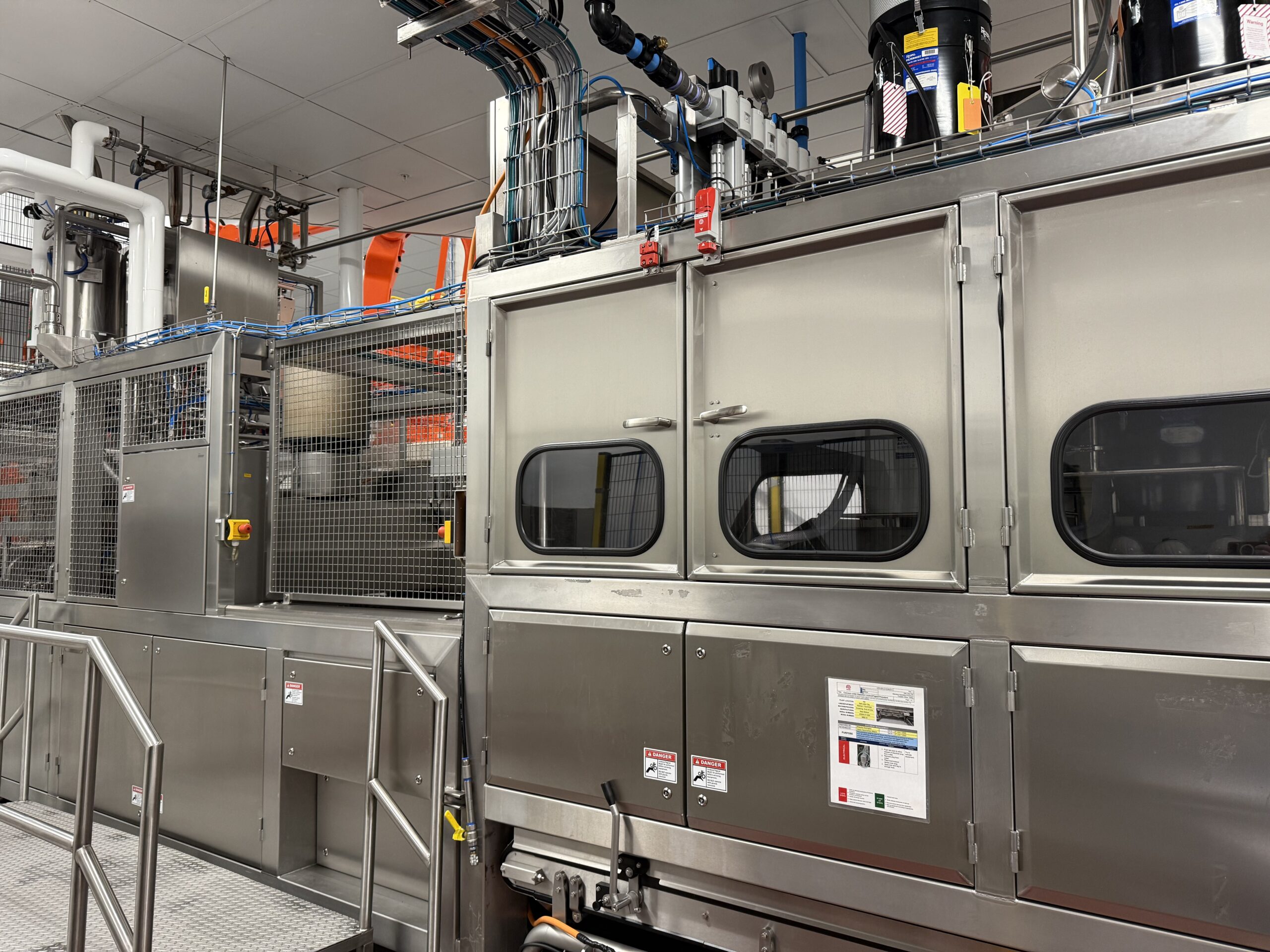

| Gummy Injector Molder | FORM | Tanis | Depositor P-74 | 14570074 | 401 |

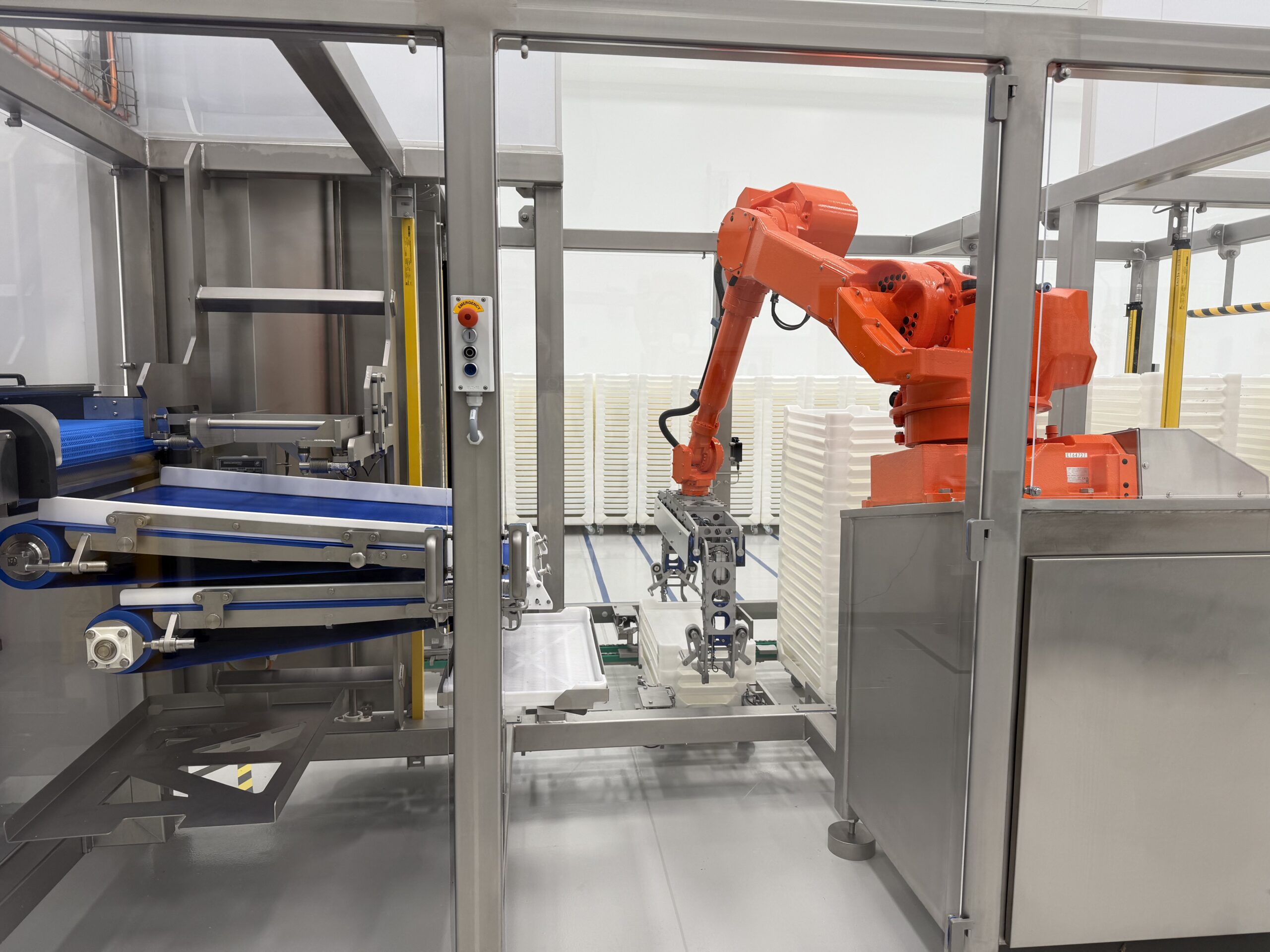

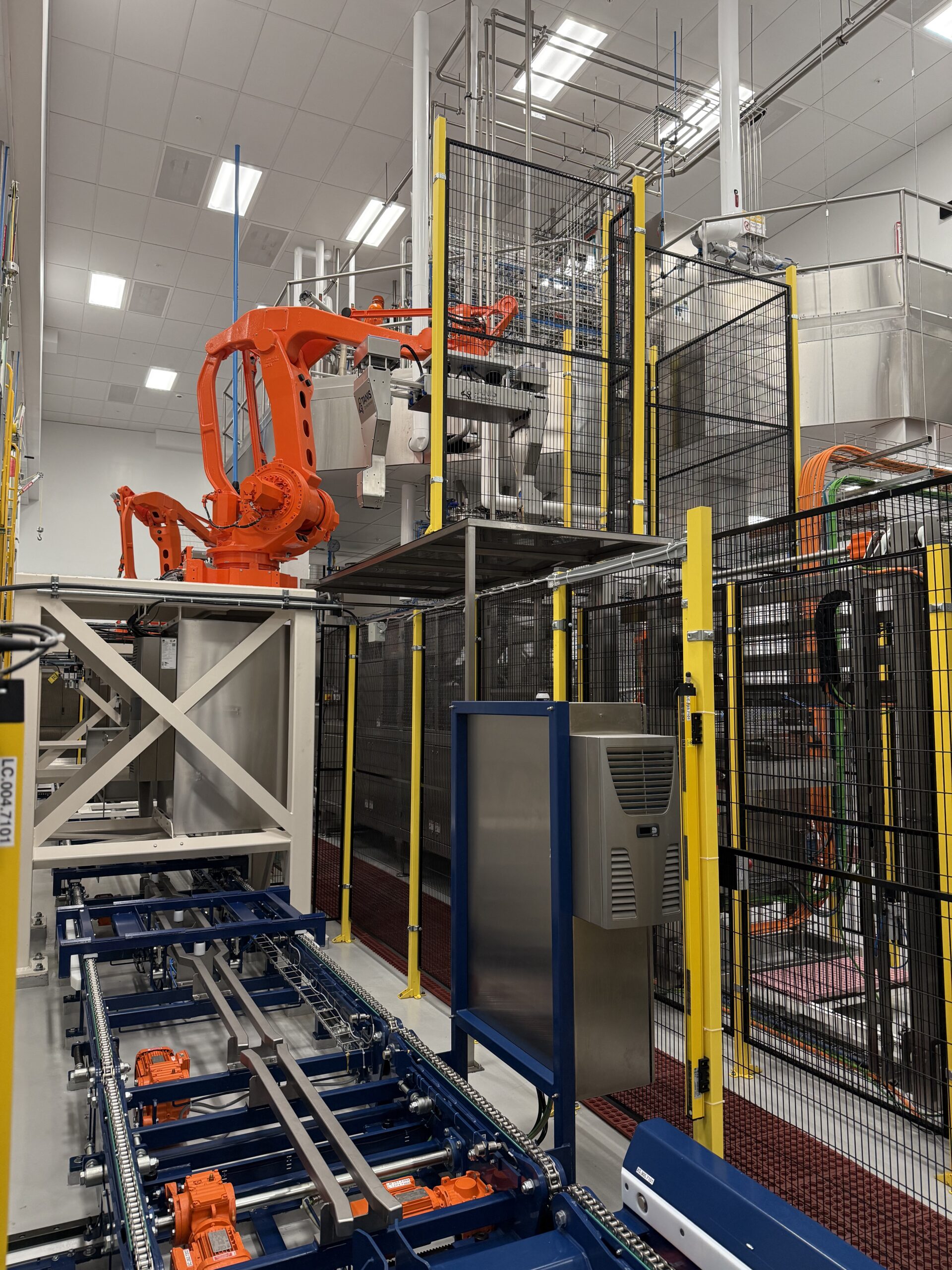

| De-stacker Stacker Robots | RBOT | Tanis | M-410/E146895, M-410 Ic/315/E146896 | – | 401 |
| Gummy Conditioning Room | COMO | Tanis | Conditioning room | 145700-CON | 401 |
| CIP Buffer Vessels | VESS | Tanis | 1,250 / 120 T-15I/T-16 E | T.001.1506+ | 400 |
| Tray Washer | CLEA | Hildebrand | Combiflex B-812 | 15226954 | 413 |
| Scale (dispensing, pallet) | SCALE | A&D, Rice Lake | GX-30k / 480Plus-2A/HE | 14910929, 000040893Z | 409 |
Process Flow Summary:

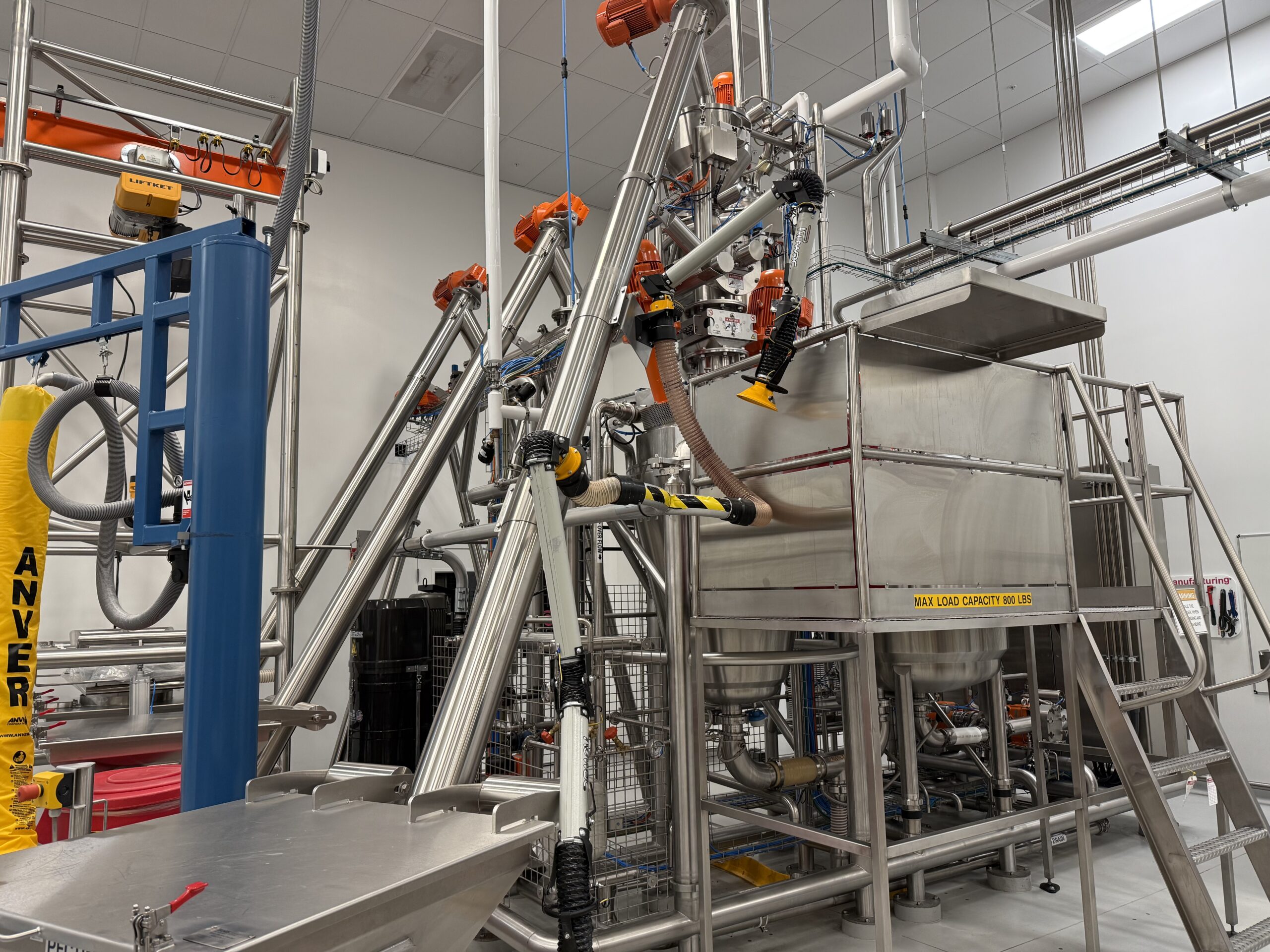

- Ingredient Handling: Big bag station, feed screw transporter, tote tilting, vacuum-assist lifters for powder and liquids.

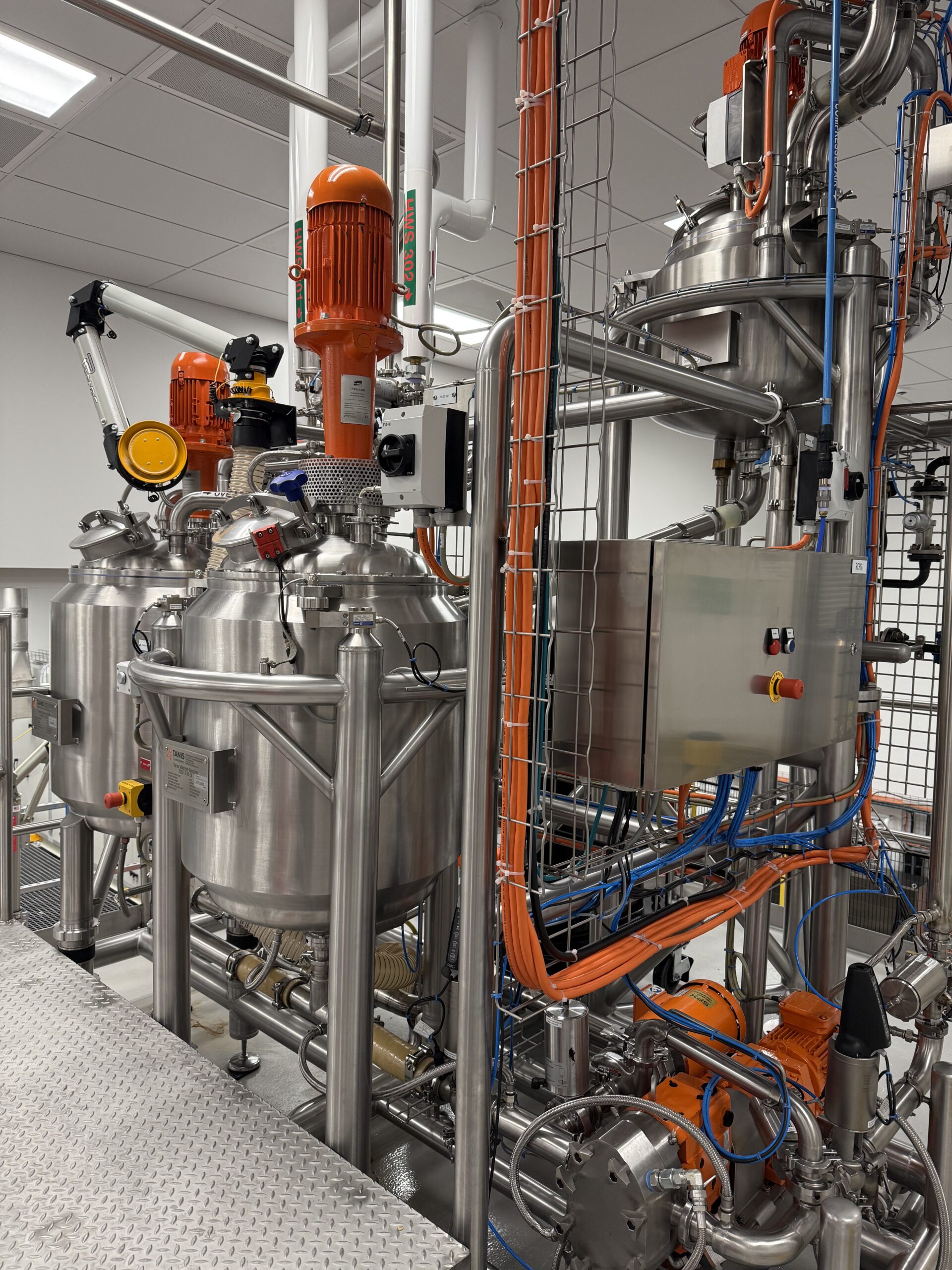

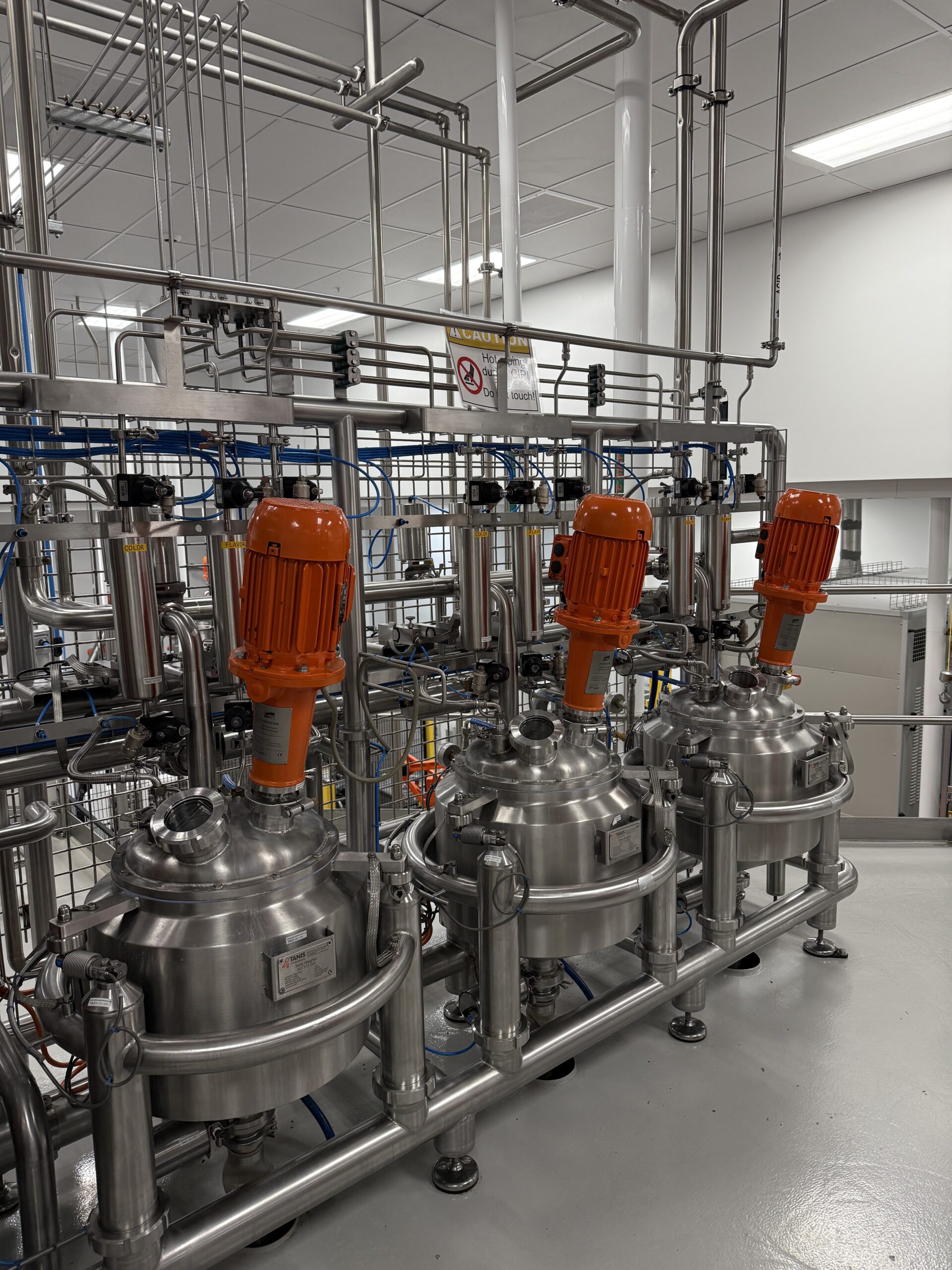

- Mixing and Pre-mix: Buffer and weighing vessels for syrup, acid, vitamins, ABS, color, and flavor, with precision scales for dosing.

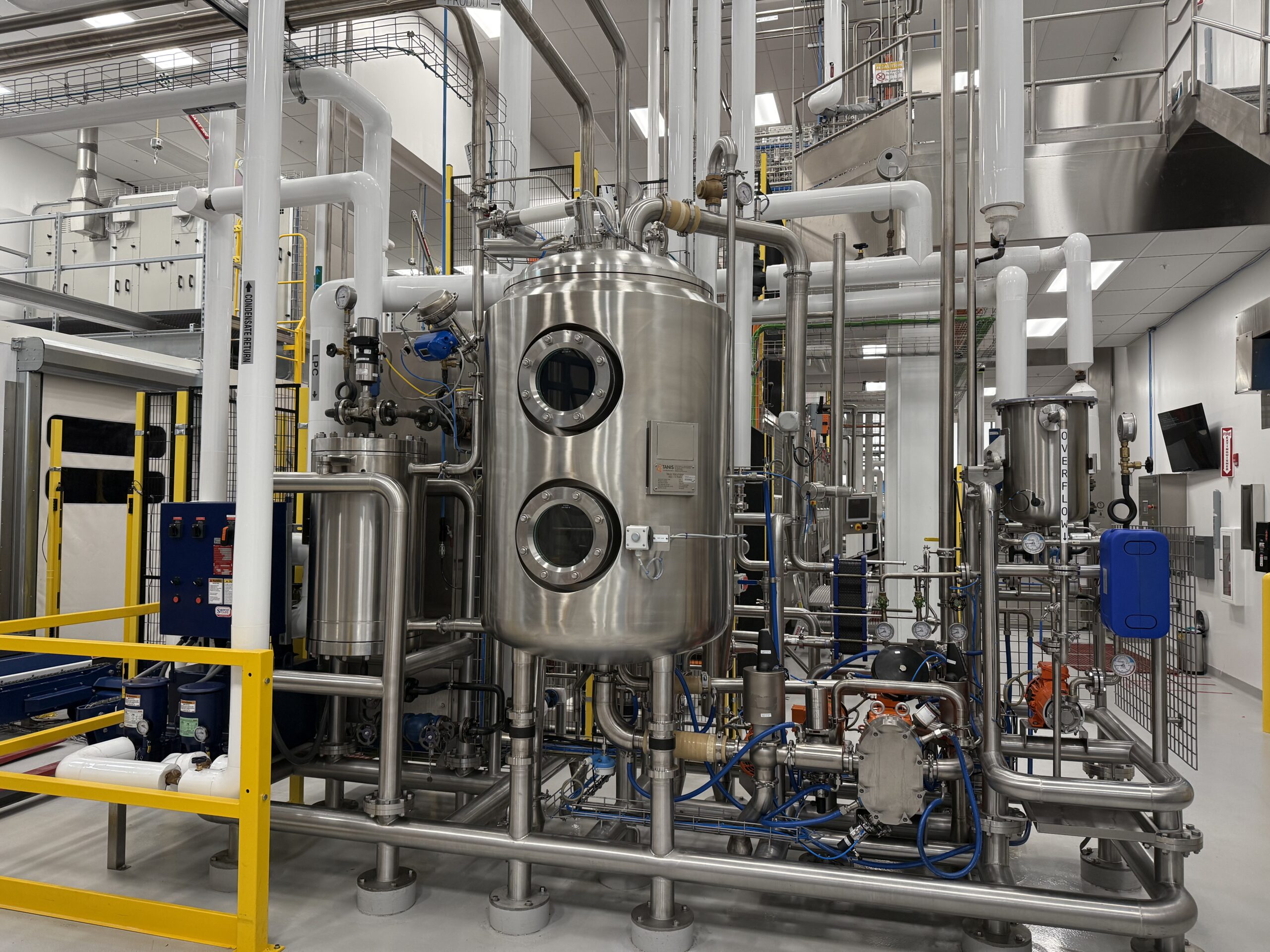

- Cooking/Conditioning: Cookers, oil heaters, tube-in-shell systems, vacuumizer, followed by conveyors, tracks, and conditioning rooms.

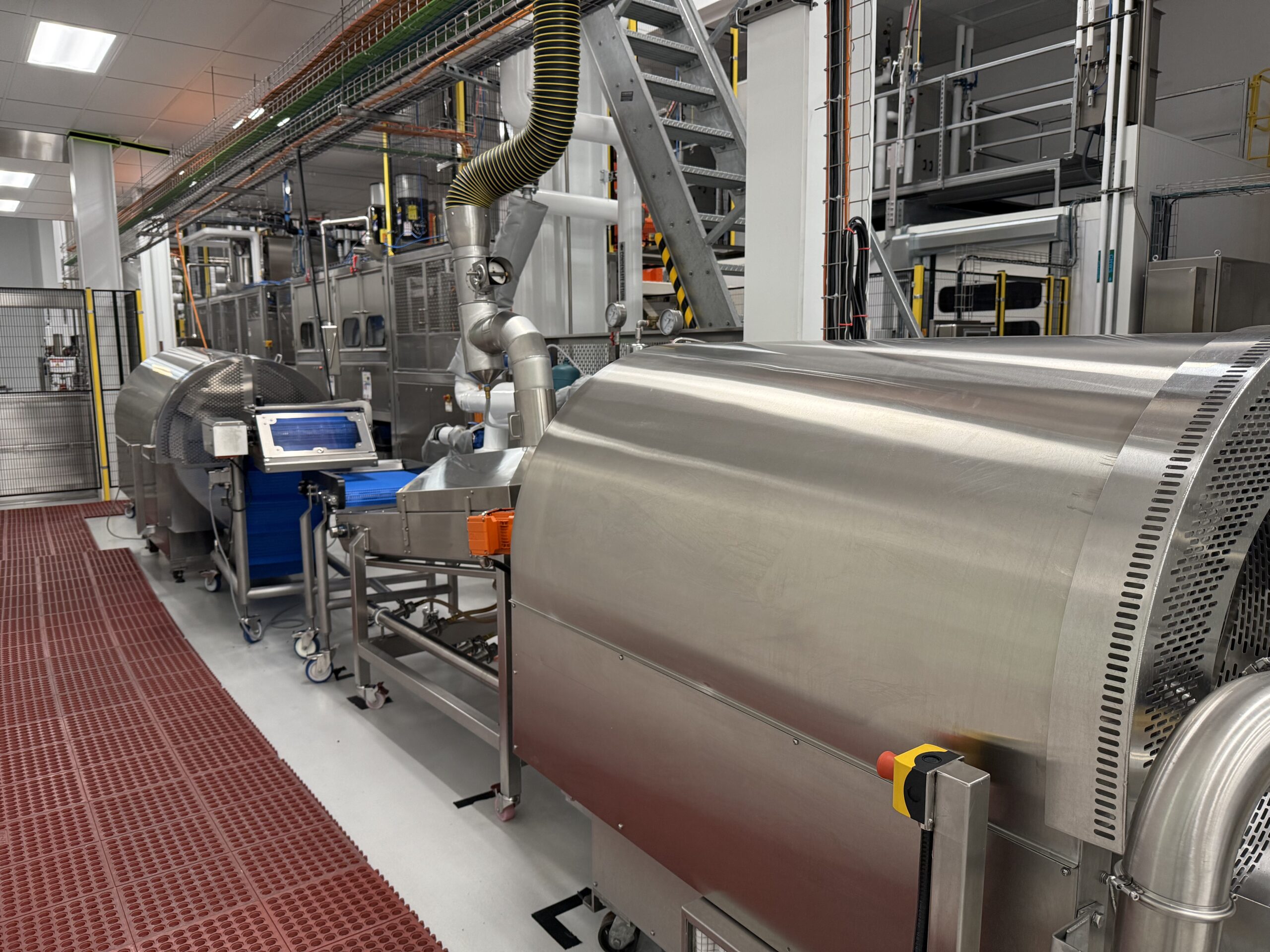

- Forming/Depositing: Automated gummy injector molder, robots for de-stacking, stacking, sugar sander coating, and tray washing processes.

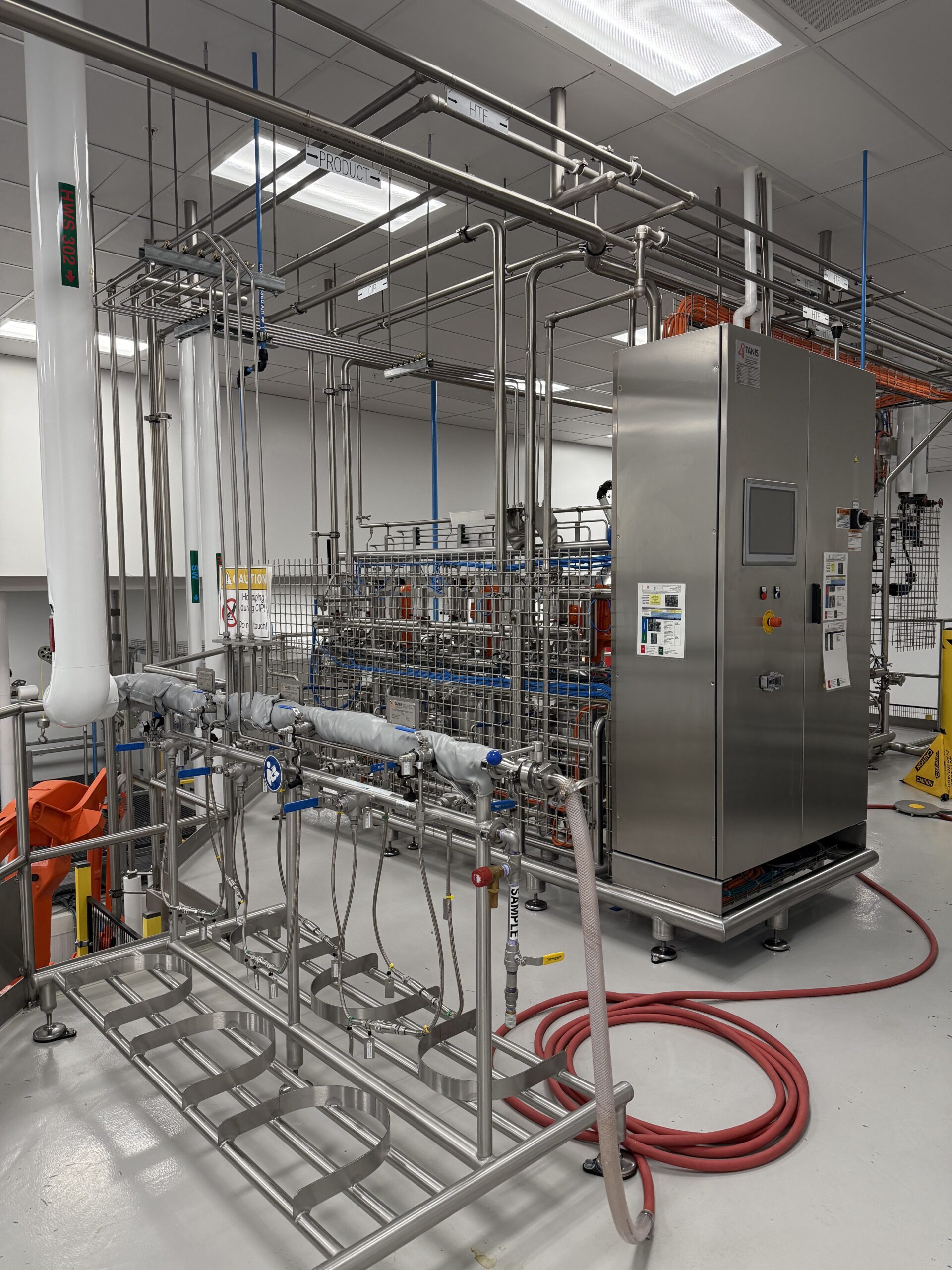

- CIP and Cleaning: Dedicated buffer vessels for cleaning-in-place, dust removal vacuums, and condensate return units ensure hygiene and operational compliance.
–
Notable Features:
- Most skids, vessels, and robots are Tanis equipment, recognized for robust continuous gummy production solutions.
- Support equipment from Hildebrand (tray washing), A&D/Rice Lake (scaling), Servolift (lift), Anver (bag lifters), and Ruwac (dust removal vacuums) highlight the integration of specialized third-party devices for ancillary processing.
- Item numbers, capacities, and codes are listed for precise identification, inventory control, and system configuration in the manufacturing environment.
- High-Capacity: Scalable to 15,000 liters/hour with buffering and batching options for any production size.
- End-to-End Automation: From bulk ingredient intake to finished gummy packing, maximize your output with minimal manual intervention.
- Smart Integration: Works seamlessly with auxiliary equipment—robotics, lifters, scales, and cleaners for the most efficient factory setup.
–
