Key Assets
Global Private Treaty Sale

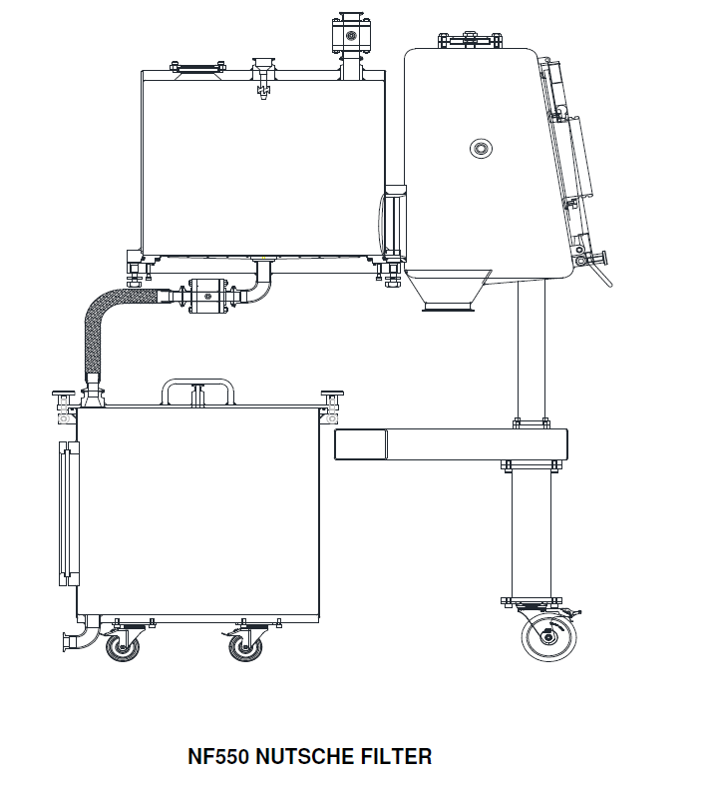

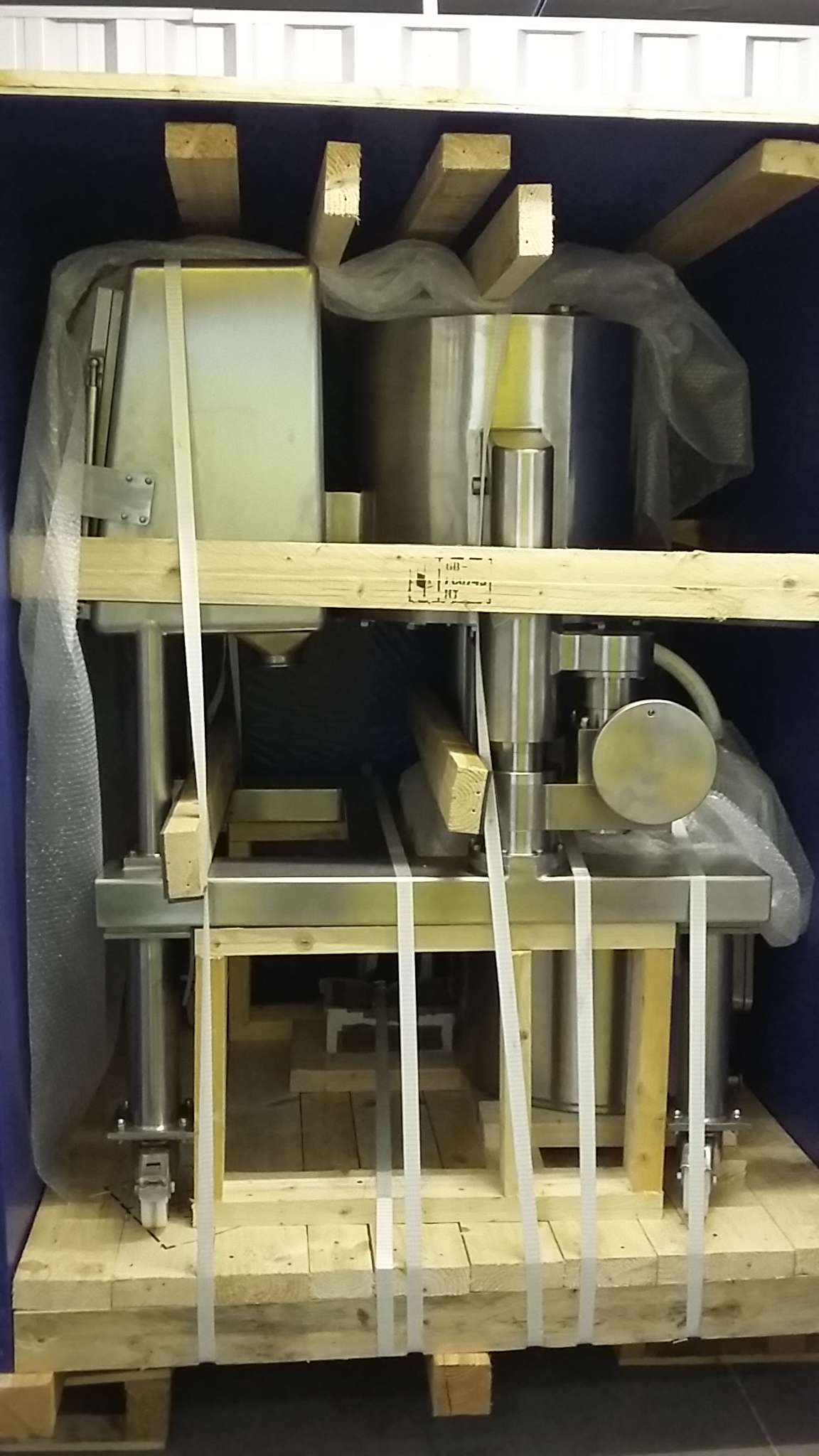

Crated & Never Used GL Filtration NF550-316L Nutsche Filter
Including:

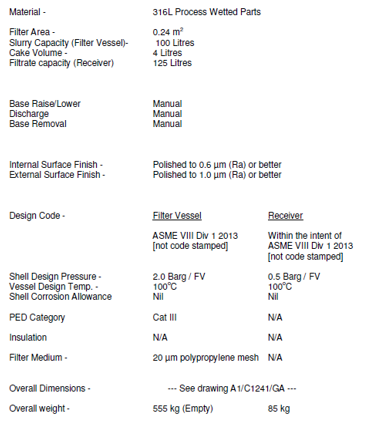

- Material – 316L Process Wetted Parts
- Filter Area – 0.24 m2
- Slurry Capacity (Filter Vessel) – 100 Litres
- Cake Volume – 4 Litres

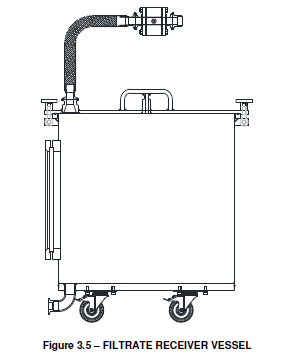

- Filtrate capacity (Receiver) – 125 Litres

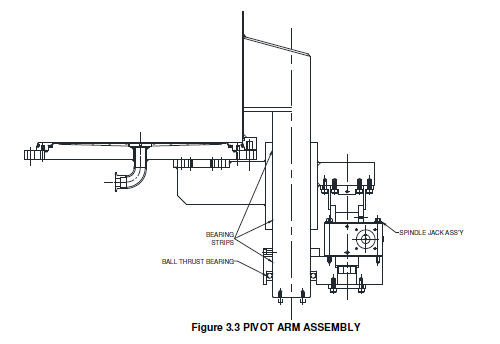

- Base Raise/Lower – Manual

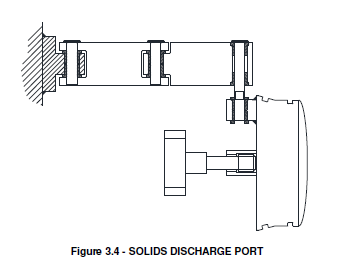

- Discharge – Manual via Glovebox for Containment

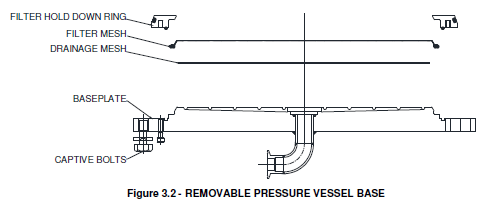

- Base Removal – Manual
- Internal Surface Finish – Polished to 0.6 μm (Ra) or better
- External Surface Finish – Polished to 1.0 μm (Ra) or better
| Design Code – | Filter Vessel | Receiver | ||
| ASME VIII Div 1 2013 [not code stamped] | Within the intent of ASME VIII Div 1 2013 [not code stamped] |
|||
| Shell Design Pressure – | 2.0 Barg / FV | 0.5 Barg / FV | ||
| Vessel Design Temp. – | 100oC | 100oC | ||
| Shell Corrosion Allowance | Nil | Nil | ||
| PED Category | Cat III | N/A | ||
| Insulation | N/A | N/A | ||
| Filter Medium – | 20 μm polypropylene mesh | N/A | ||
| Overall weight – | 555 kg (Empty) | 85 kg |
