Global Private Treaty Sale #1 By Order of Phillips Respironics: (2) FANUC Robodrills Alpha D21MiA5

For Immediate Sale

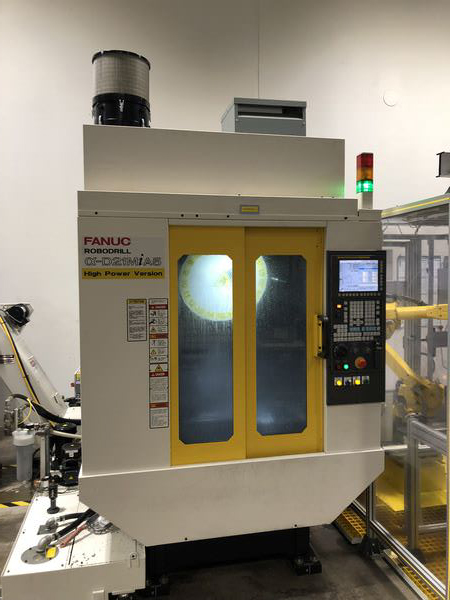

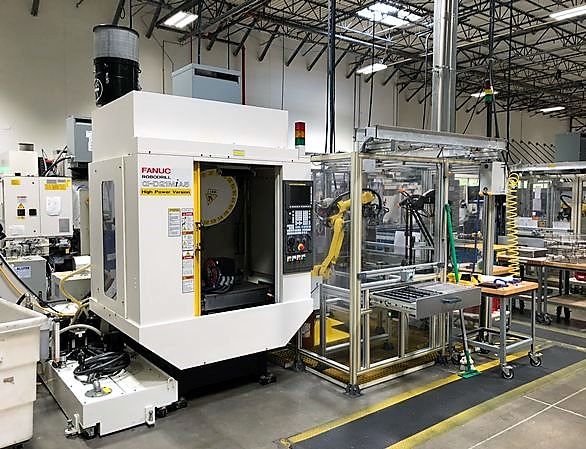

2016 Alpha D21MiA56

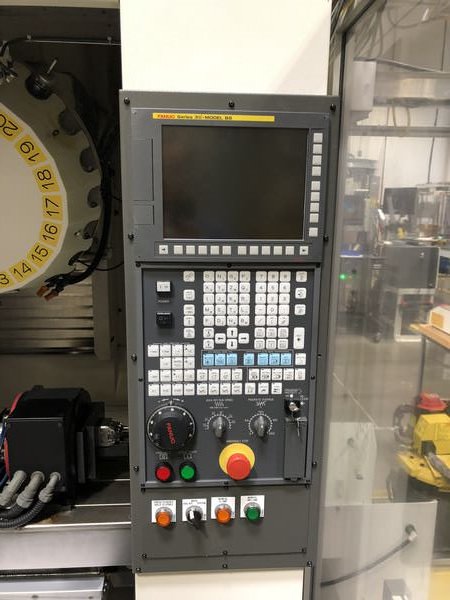

  • Fanuc 31i-B5 CNC Control:
  • 24,000 RPM High Torque Spindle:
  • Fanuc DDR 4th Axis High Speed Indexer:

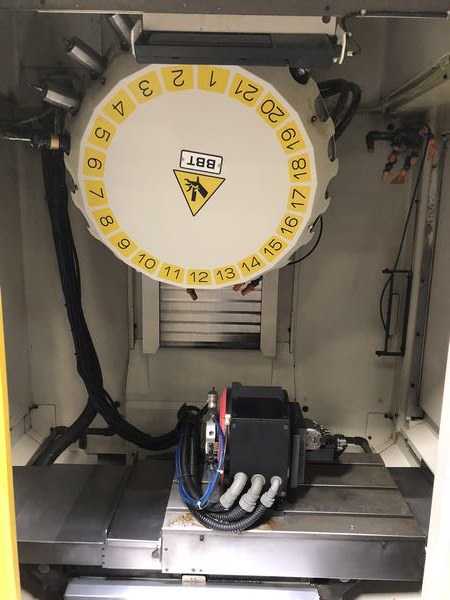

  • 21-Station Automatic Toolchanger:

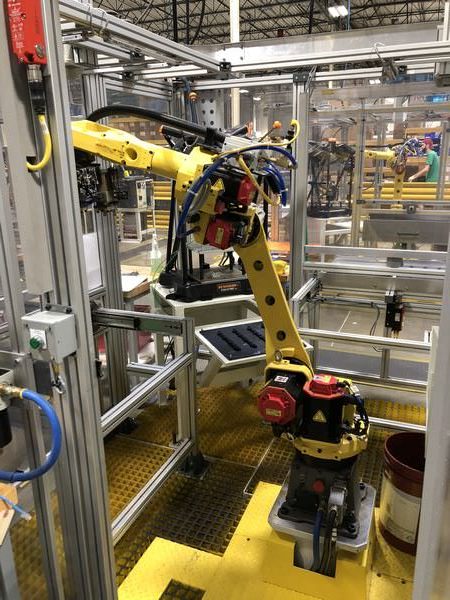

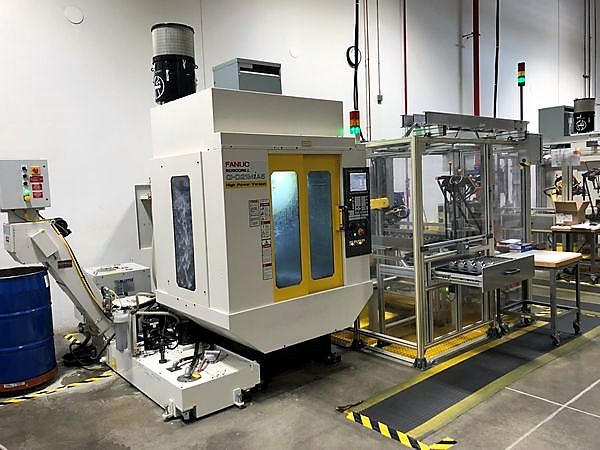

  • Automation Package:

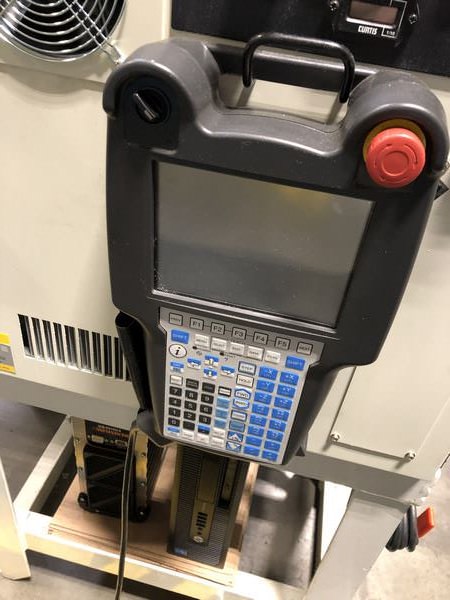

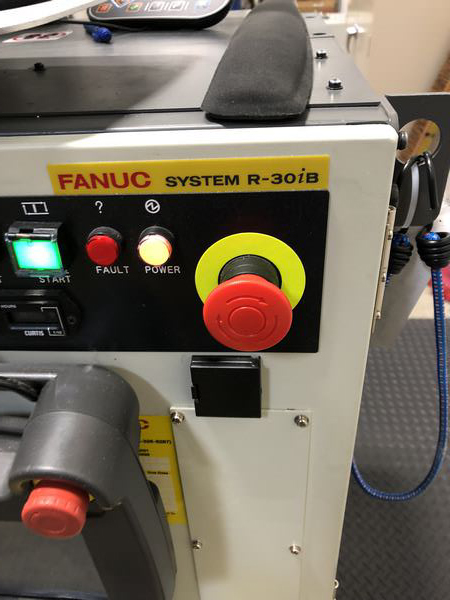

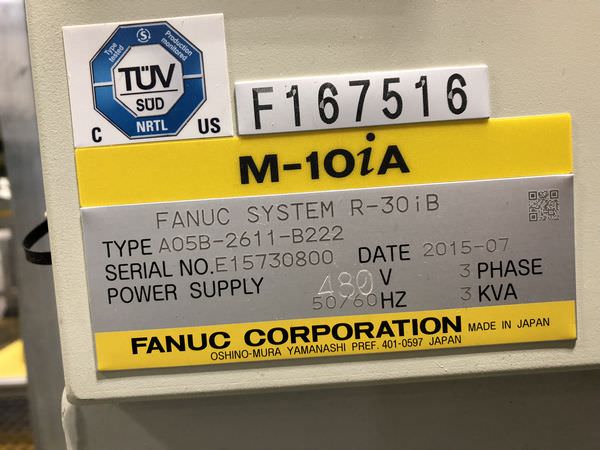

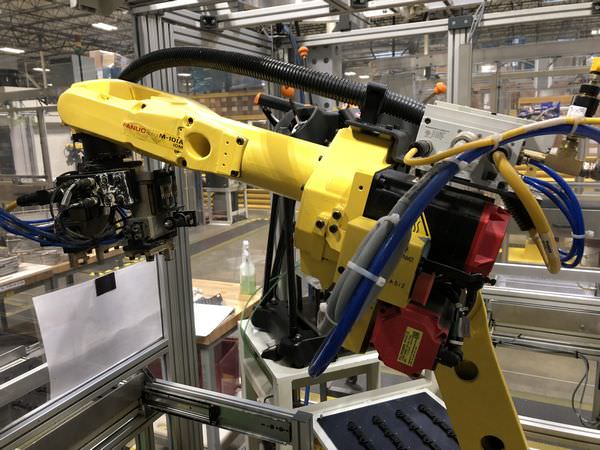

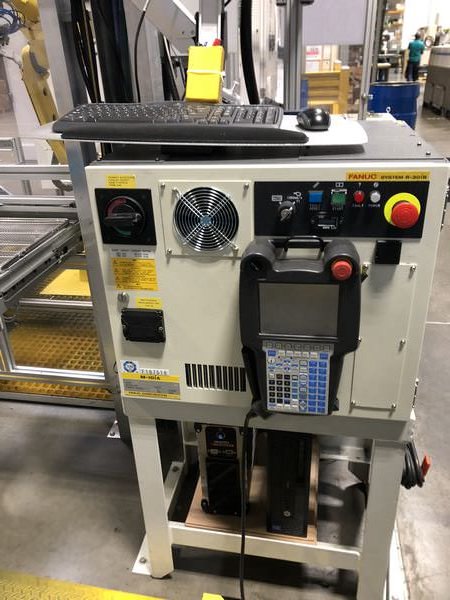

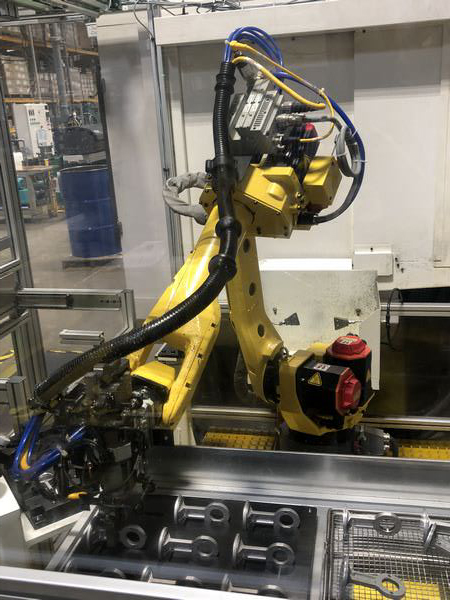

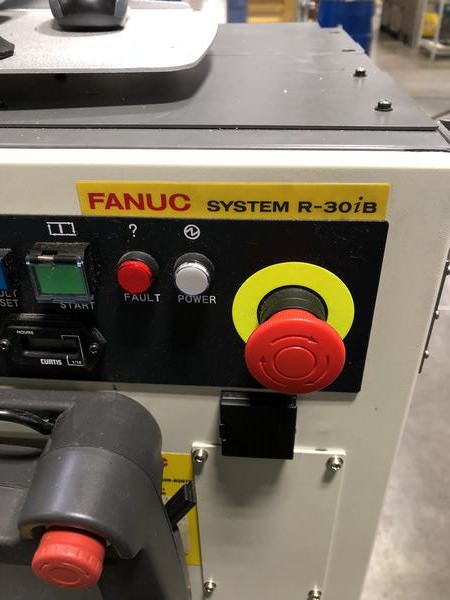

  • Fanuc M-10iA 6-Axis Robot with R-30iB Controller:

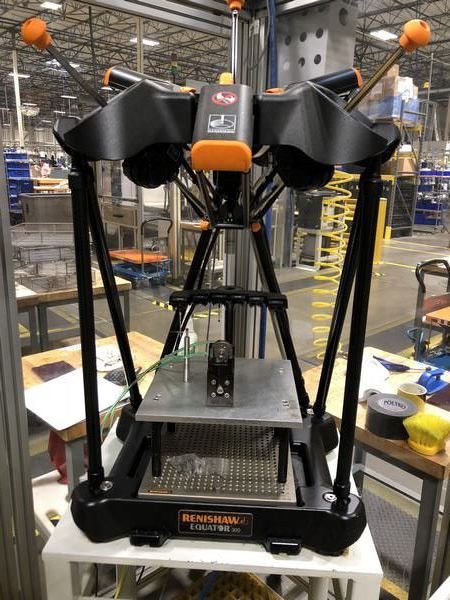

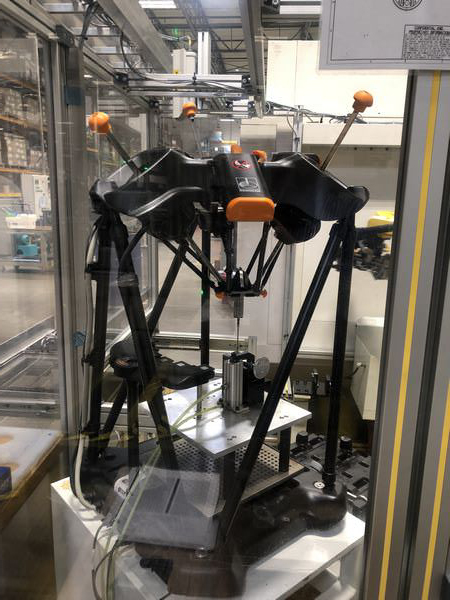

  • Renishaw Equator Gauge:

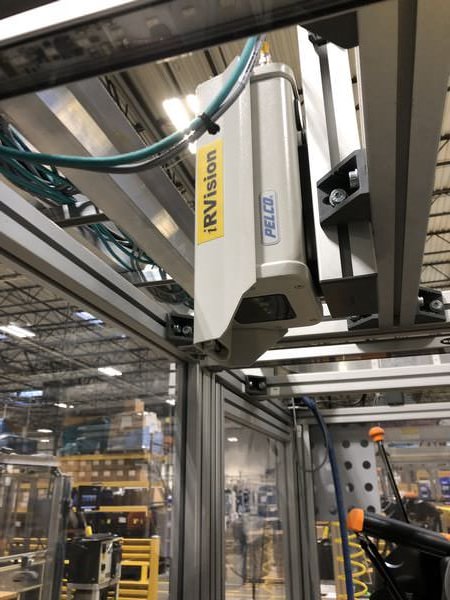

  • Fanuc IRVision 2D Camera:


Capacity

  • X-Axis Travel: 19.68″
  • Y-Axis Travel: 15.74″
  • Z-Axis Travel: 12.9″
  • Table Working Surface: 15.7″ x 25.6″
  • Max Table Load: 660 Lbs
  • Max Distance Spindle to Table Top: 18.9″
  • Spindle Speeds, Inf Variable: 100-24,000 RPM
  • Max Spindle Speed for Tapping: 5,000 RPM
  • Spindle Taper: BBT30 (BIG PLUS)
  • Rapid Traverse (X,Y,Z-Axes): 2125 IPM
  • Feed Rate (X,Y,Z-Axes): 1181 IPM
  • Tool Changer: 21 ATC
  • Tool Change Time: 1.6 Sec Tool-To-Tool

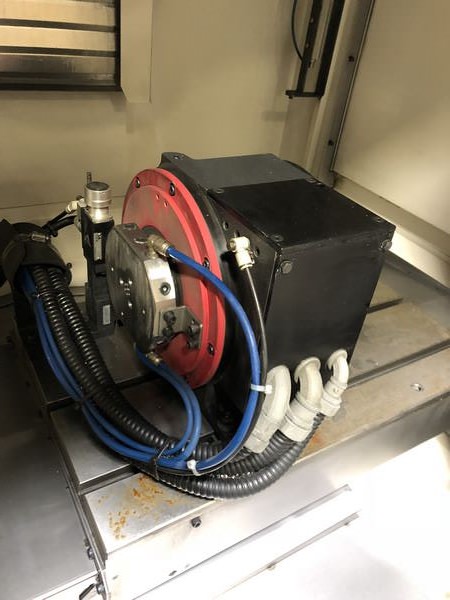

FANUC DDR 4TH AXIS HIGH SPEED INDEXER

  • Maximum Speed: 200 RPM
  • Drive System: Direct Drive
  • Indexing: .001 Degree
  • Index Accuracy: .0028 Degree
  • Clamp System: Compressed Air and Spring
  • Clamp Torque: 500 Nm
  • Load Capacity (Horizontal): 100 kg
  • Center Height: 5.90″
  • Weight: 145.2 Lbs

EQUIPPED WITH:

  • Fanuc 31i-B5 5-Axis CNC Control
  • Automation Package: (1) Fanuc M-10iA/10M Robot with R-30iB Controller, Side
    by Side Part Infeed/Outfeed Drawer, (1) Fanuc iR Vision 2D Camera with
    Stand, Renishaw Equator, Full Guardingn, 2 Part End of Arm Tool

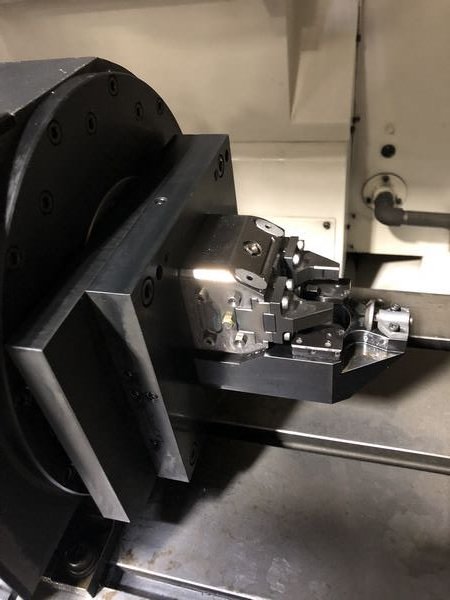

  • Fanuc DDR High Speed 4th Axis Indexer with Pneumatic Fixture

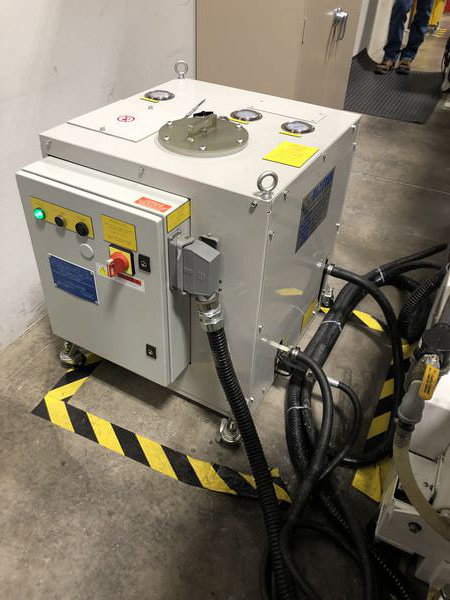

  • High Pressure Coolant Thru Spindle (500 PSI)

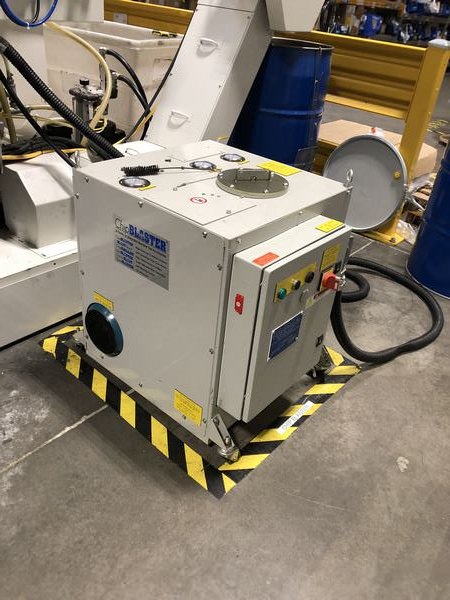

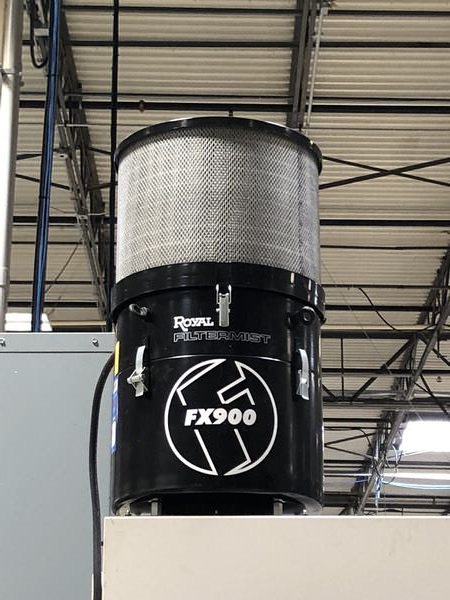

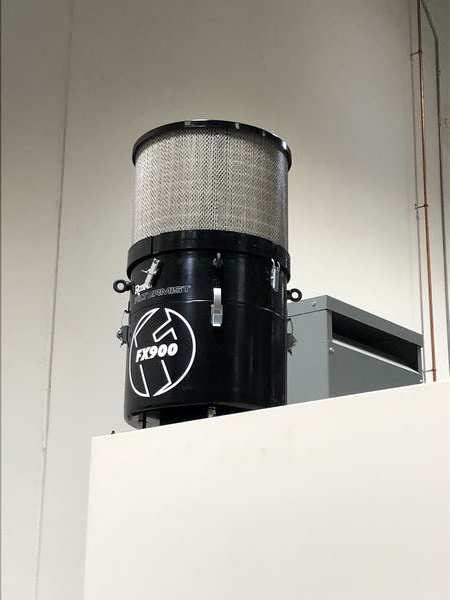

  • Mist Collector (Royal FX900)

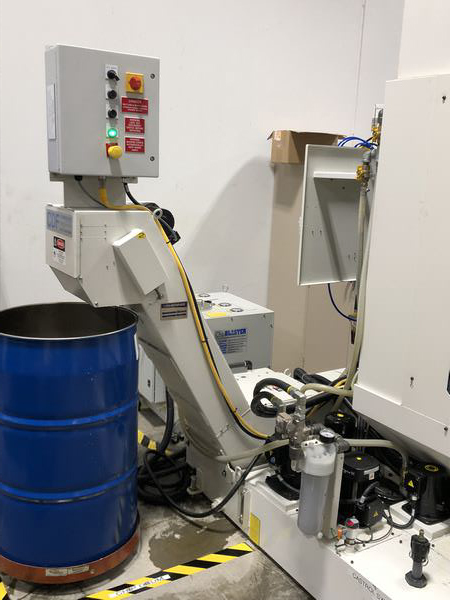

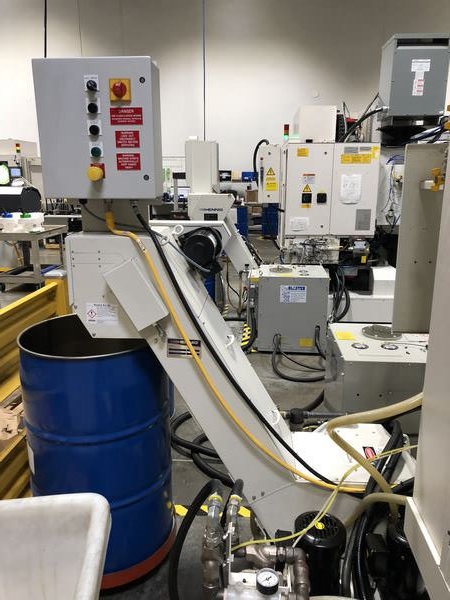

  • Chip Conveyor with 50 Micron Filtration
  • Full Guarding
  • 14 HP Spindle Drive Motor

2016 Alpha D21MiA5

  • Fanuc 31i-B5 CNC Control:
  • 10,000 RPM High Torque Spindle:
  • Fanuc DDR 4th Axis High Speed Indexer:
  • 21-Station Automatic Toolchanger:
  • Automation Package:
  • Fanuc M-10iA 6-Axis Robot with R-30iB Controller:
  • Renishaw Equator 300:
  • Fanuc IRVision 2D Camera:

Capacity:

  • X-Axis Travel: 19.68″
  • Y-Axis Travel: 15.74″
  • Z-Axis Travel: 12.9″
  • Table Working Surface: 15.7″ x 25.6″
  • Max Table Load: 660 Lbs
  • Max Distance Spindle to Table Top: 18.9″
  • Spindle Speeds, Inf Variable: 100-10,000 RPM
  • Max Spindle Speed for Tapping: 5,000 RPM
  • Spindle Taper: BBT30 (BIG PLUS)
  • Rapid Traverse (X,Y,Z-Axes): 2125 IPM
  • Feed Rate (X,Y,Z-Axes): 1181 IPM
  • Tool Changer: 21 ATC
  • Tool Change Time: 1.6 Sec Tool-To-Tool

FANUC DDR 4TH AXIS HIGH SPEED INDEXER:

  • Maximum Speed: 200 RPM
  • Drive System: Direct Drive
  • Indexing: .001 Degree
  • Index Accuracy: .0028 Degree
  • Clamp System: Compressed Air and Spring
  • Clamp Torque: 500 Nm
  • Load Capacity (Horizontal): 100 kg
  • Center Height: 5.90″
  • Weight: 145.2 Lbs

EQUIPPED WITH:

  • Fanuc 31i-B5 5-Axis CNC Control
  • Automation Package: (1) Fanuc M-10iA/10M Robot with R-30iB Controller, Side
    by Side Part Infeed/Outfeed Drawer, (1) Fanuc iR Vision 2D Camera with
    Stand, Perimeter Guarding, 2 Part End of Arm Tool
  • Fanuc DDR High Speed 4th Axis Indexer with Pneumatic Fixture
  • Renishaw Equator Gauge
  • High Pressure Coolant Thru Spindle (500 PSI)
  • Mist Collector (Royal FX900)
  • Chip Conveyor with 50 Micron Filtration
  • Full Guarding
  • 14 HP Spindle Drive Motor
