Key Assets

Global Private Treaty Sale #3 By Order of Phillips Respironics: 2016 Alliance Aquamaster CB-1800 E

For Immediate Sale

Features Include:

• Model CB-1800E
• Age: 2016
• Wash, Rinse and Heated Blow-Off Modules:
• Conveyor System:

MACHINE SPECIFICATIONS:

• Overall Length: 237″
• Overall Width: 72″
• Overall Height: 72″
• Load/Discharge Height: 35″
• Production Rate (Estimated): 450 Parts/Hour (20-30 Baskets/Hr )
• Production Rate Belt Speed: 1.0 Feet/Min

CONVEYOR SYSTEM:

• Width: 18″
• Type: 1″ x 1″ Stainless Steel Belt
• Motor: Fractional HP DC Gearmotor
• Conveyor Speed (Inf Variable): 1-6 FPM

WASH MODULE:

• Tank Capacity: 185 Gallons
• Pump: 2 HP
• Pump Rating: 56 Gallons/Min @ 15 PSI
• Spray Zone Length: 30″
• Spray Nozzles (Adjustable): Above, Below and Sides of Conveyor
• Solution Heat: (3) 18 kW Electric Heating Elements
• Solution Level Control: 2-Position Level Control
• Filtration: Removable Chip Basket w/ 1/16″ Holes

RINSE MODULE:

• Tank Capacity: 165 Gallons
• Pump: 1.5 HP
• Pump Rating: 46 Gallons/Minute @ 15 PSI
• Spray Zone Length: 24″
• Solution Heat: (2) 18 kW Electric Heating Elements
• Solution Level Control: 2 Position Level Control
• Operating Tempature: 130 Degrees – 140 Degrees Fahrenheit

HEATED BLOW-OFF MODULE:

• Dryer Air System Module Length: 48″
• Blower Motor: 7.5 HP
• Blower RPM: 3450 RPM
• Blower Air Volume Rating: 1510 CFM @ 15.1 w c
• Air Velocity: 14259 FPM (162 MPH)
• Heat Source: (1) 18 kW Open Coil Duct Heater

EQUIPPED WITH:

• Wash, Rinse and Heated Blow-Off Modules
• Conveyor System
• Stainless Steel Tank and Fiberglass Canopy
• Parts to Be Washed in 24″ x 16″ x 4″ Baskets
• Exhaust Fan System
• Solution Heat Auto-Timer
• Chemical Injection System

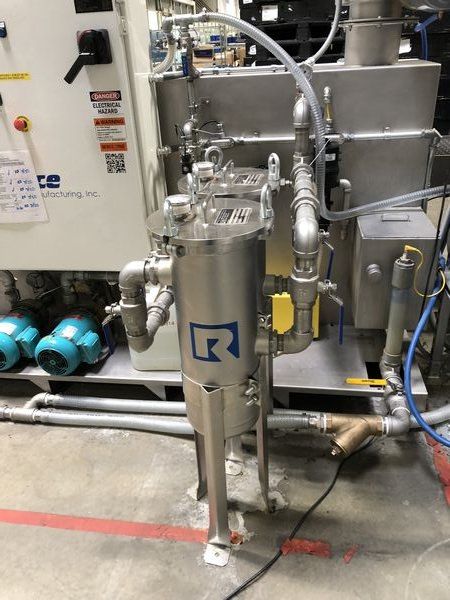

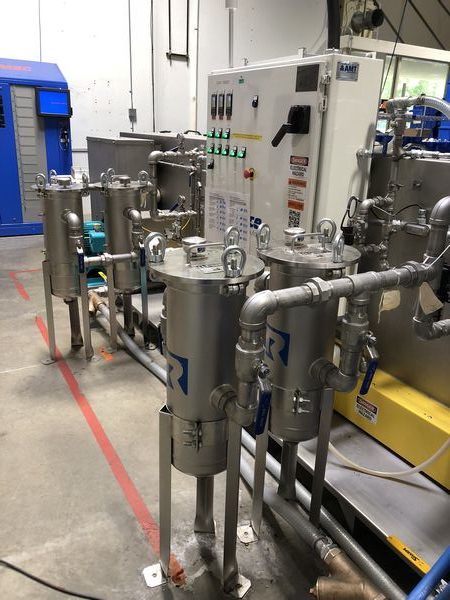

• Microfiltration, Stainless Steel, Dual Parallel 8″ x 15″ (Wash & Rinse)
• Oil Skimmer, Belt Type, 1″ Stainless Steel
• Product Sensor (Photo Eye at Load End)

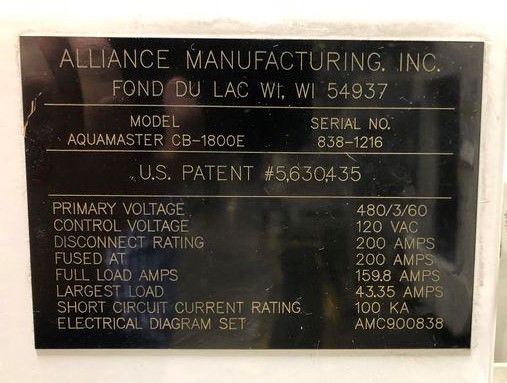

• 480/3/60 Electrics
