Global Webcast Auction On Behalf Of Danone

Complete, State of the Industry Modern Yogurt Plant.

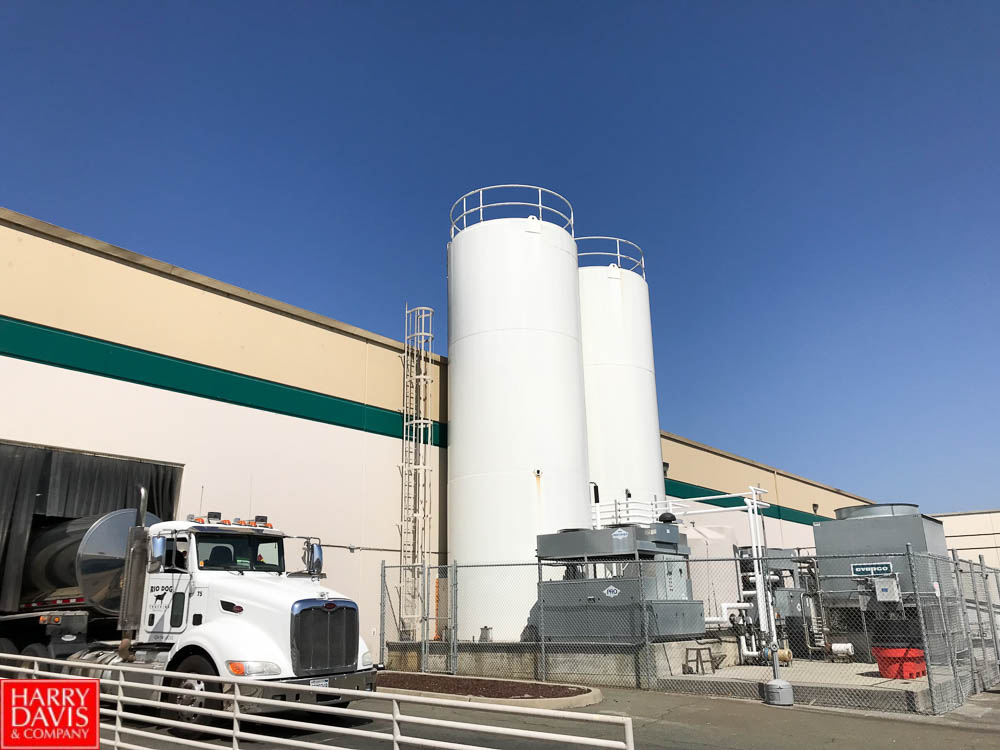

Including S/S SILOS:

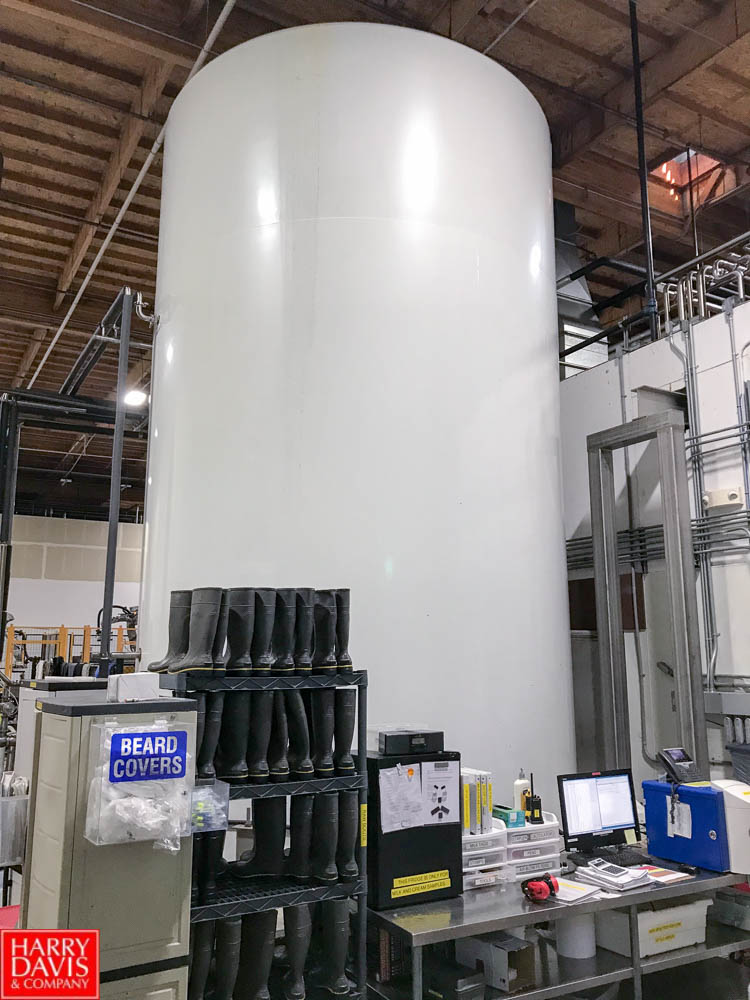

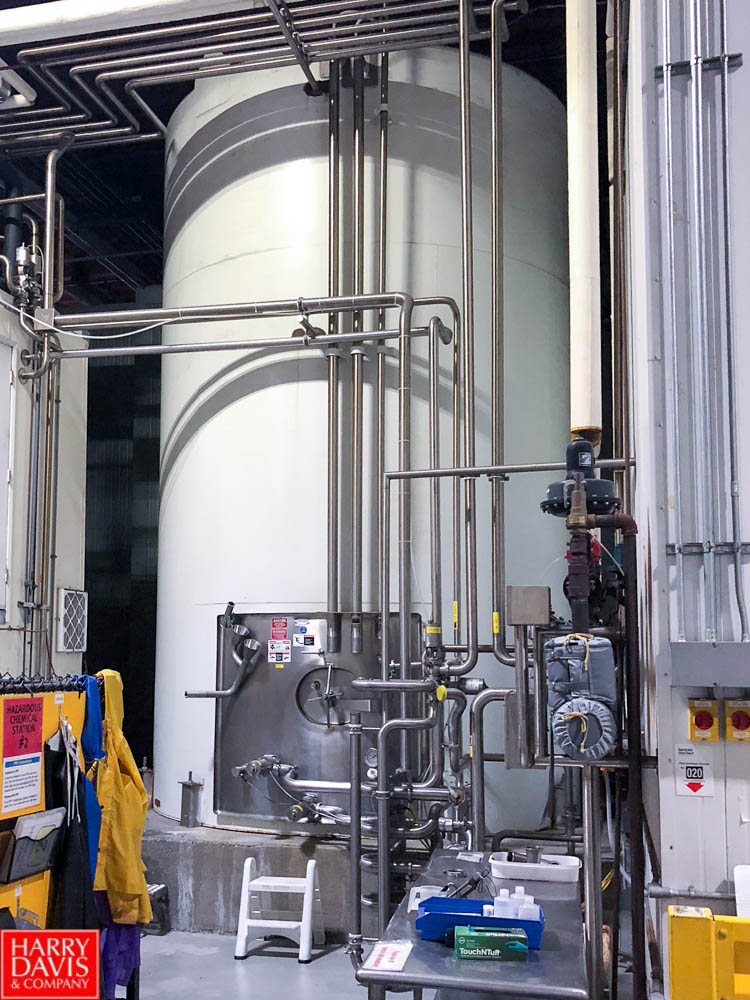

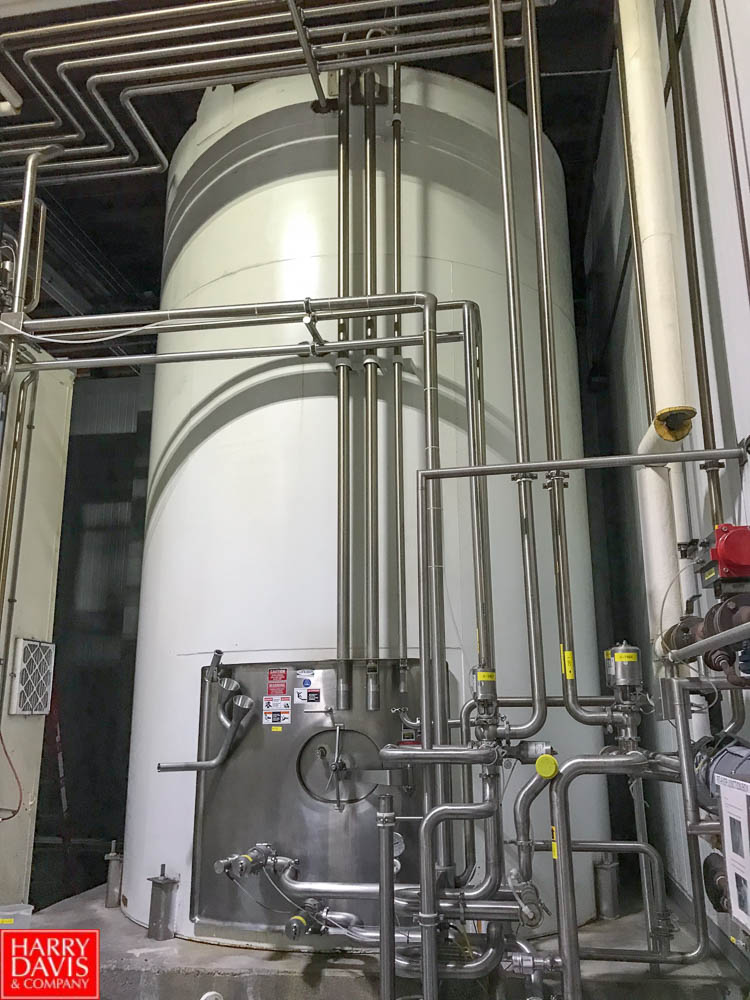

• (2) Walker 25,000 Gal. Vertical Jacketed Silos with Horizontal Agitators, Level and Temperature Sensors, and Waukesha Tank Inlet and Outlet Valves.
• (2) Walker 12,000 Gal. Vertical Jacketed Silo with Vertical Agitators, Level and Temperature Sensors, and Waukesha Tank Inlet and Outlet Valves.
• (2) Walker 6,000 Gal. Vertical Jacketed Silo with Vertical Agitators, Level and Temperature Sensors, and Waukesha Tank Inlet and Outlet Valves.

S/S FERMENTATION TANKS

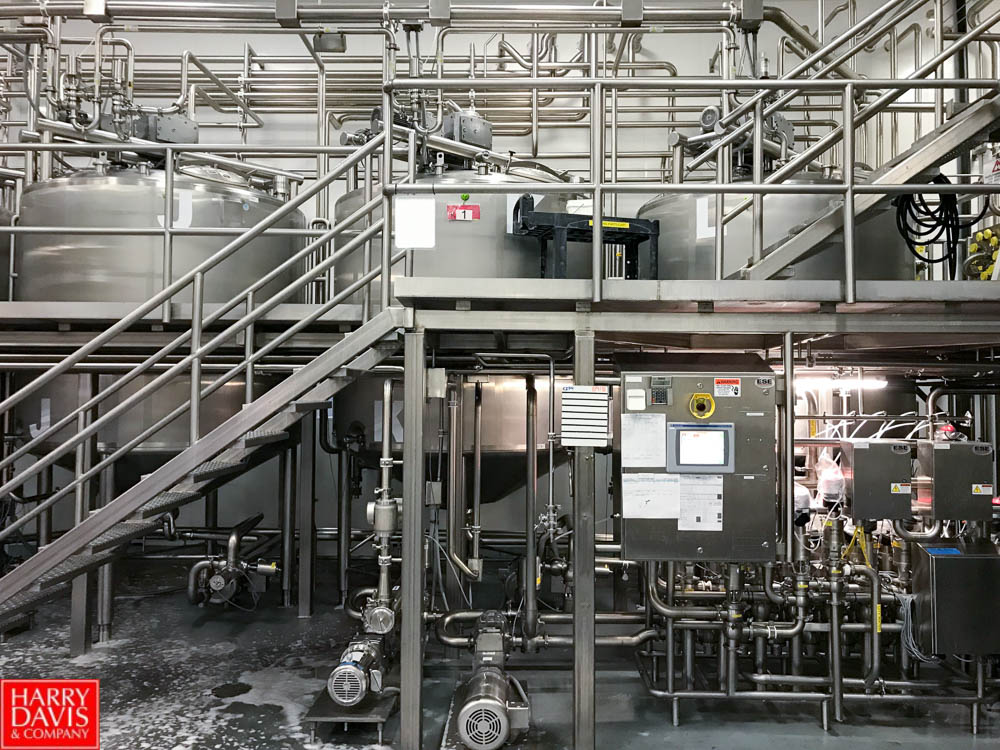

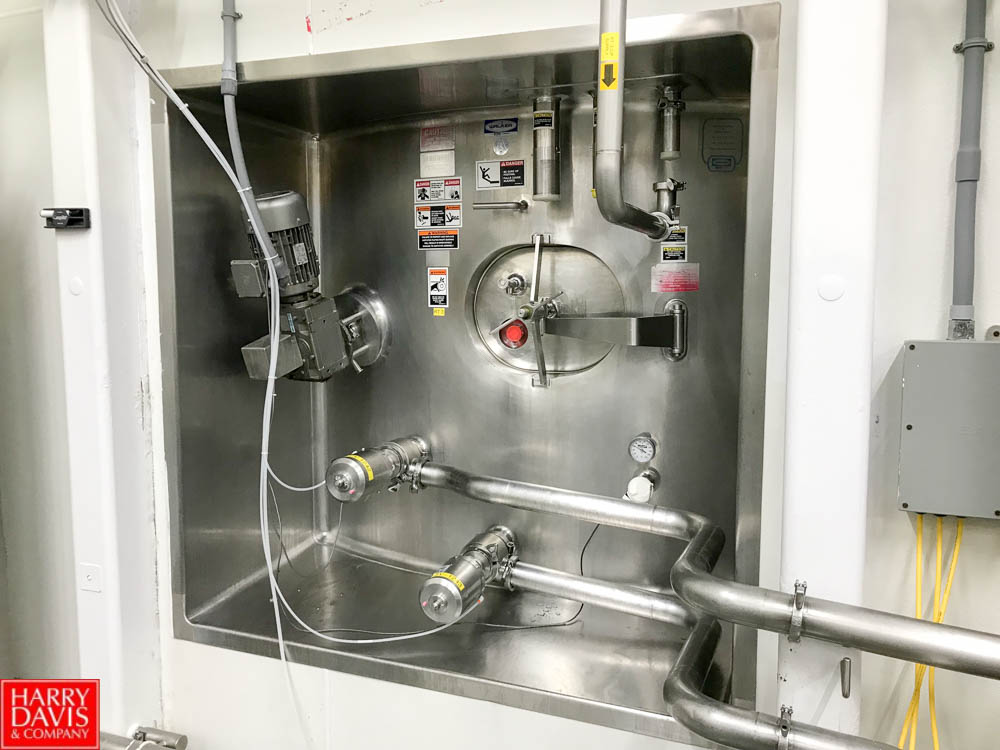

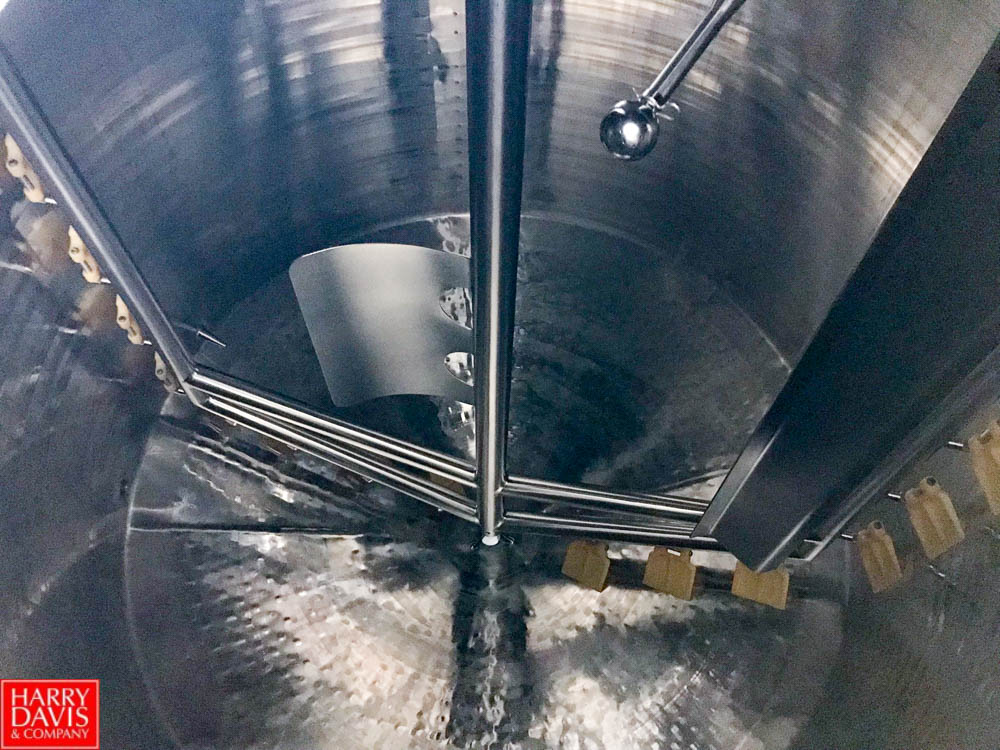

• (6) 2017 Walker PZ-CB-K 4250 Gal. Vertical Jacketed S/S Processing Tanks with Scrape. Surface and Turbine Agitator, Cone Bottom and Leak Detect Outlet Valve.

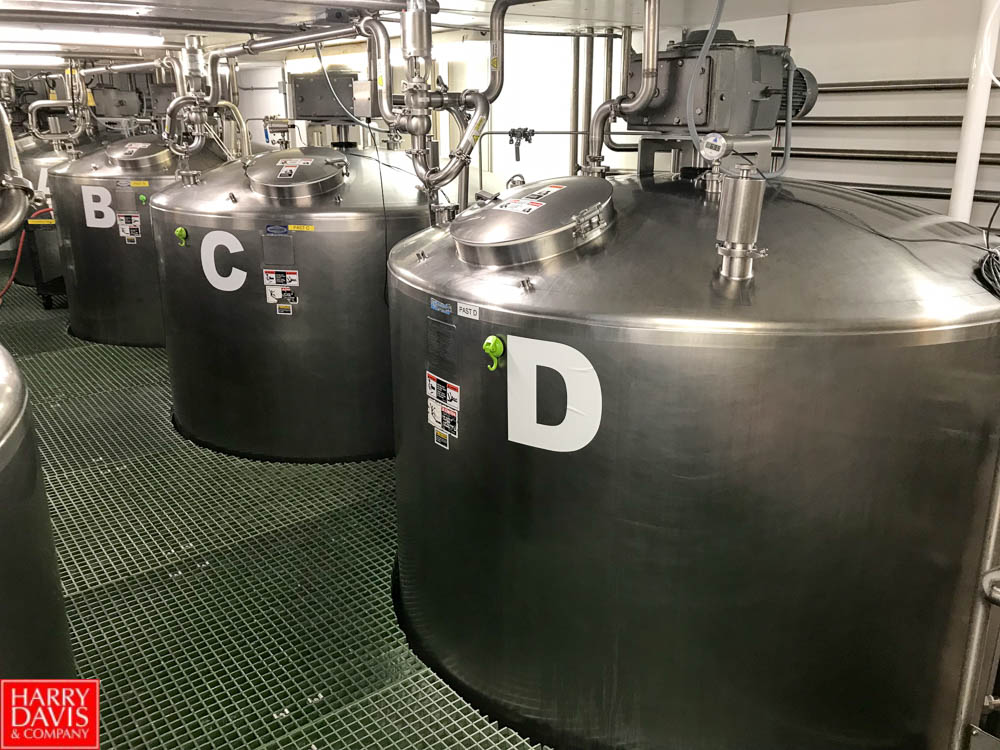

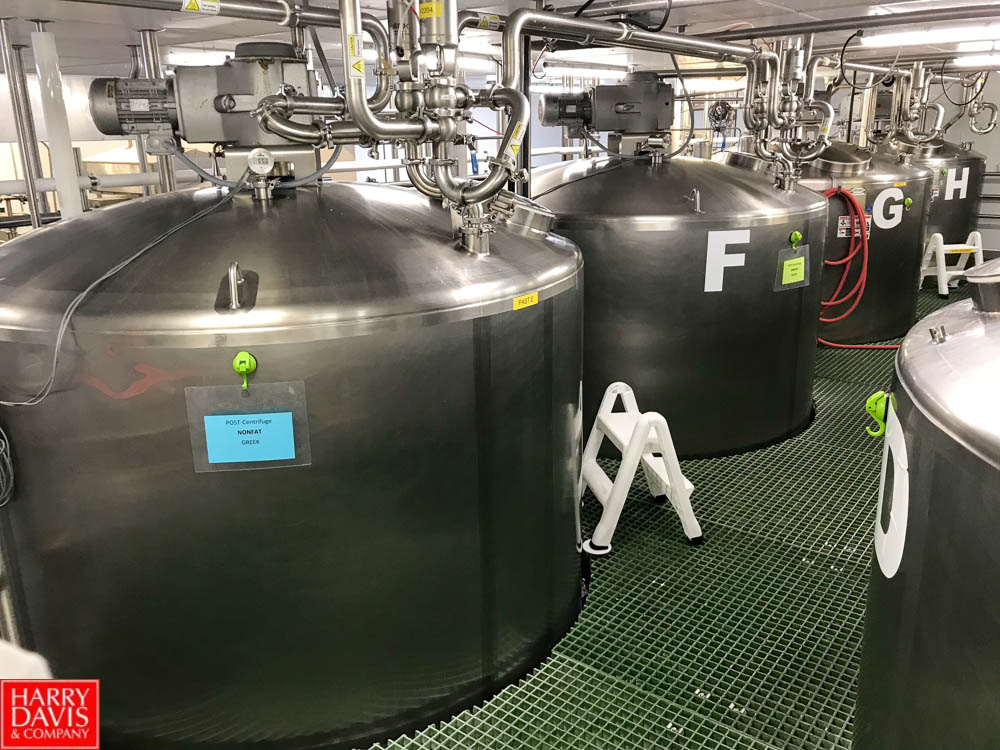

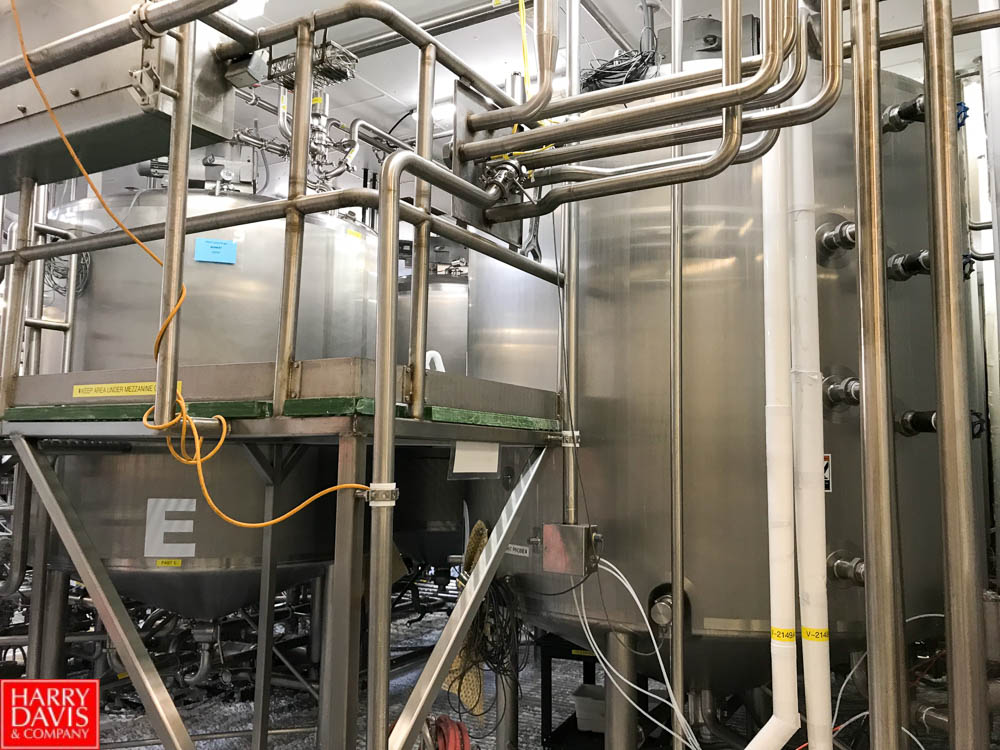

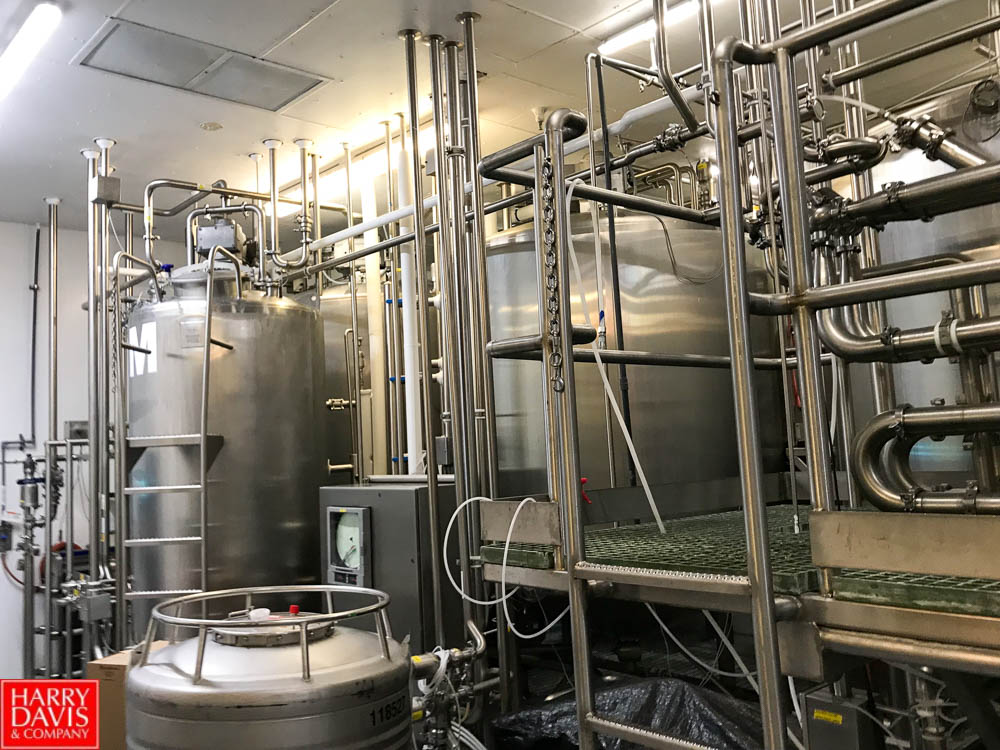

• (12) Walker 1,800 Gal. Vertical Jacketed S/S Processing Tanks, Model: PZ-CB with Scrape. Surface Agitator, Cone Bottom and Leak Detect Outlet Valve with Pumps, Valves, Flow. Meters, RTD’s, S/S Piping, etc.
• Sprinkman 300 Gal. Vertical Jacketed S/S Processing Tank with Scrap Surface Agitator, Cone Bottom, Leak Detect Outlet Valve, and Pipe Ladder with Rest Platform; Sprinkman 700 Gal. Stainless Steel Vertical Recovery Tank.
• (30) SPX WCB S/S Centrifugal Pumps.
• (20) SPX WCB S/S Positive Displacement Pumps, Models: 130U2, 60U2 & 18U2.

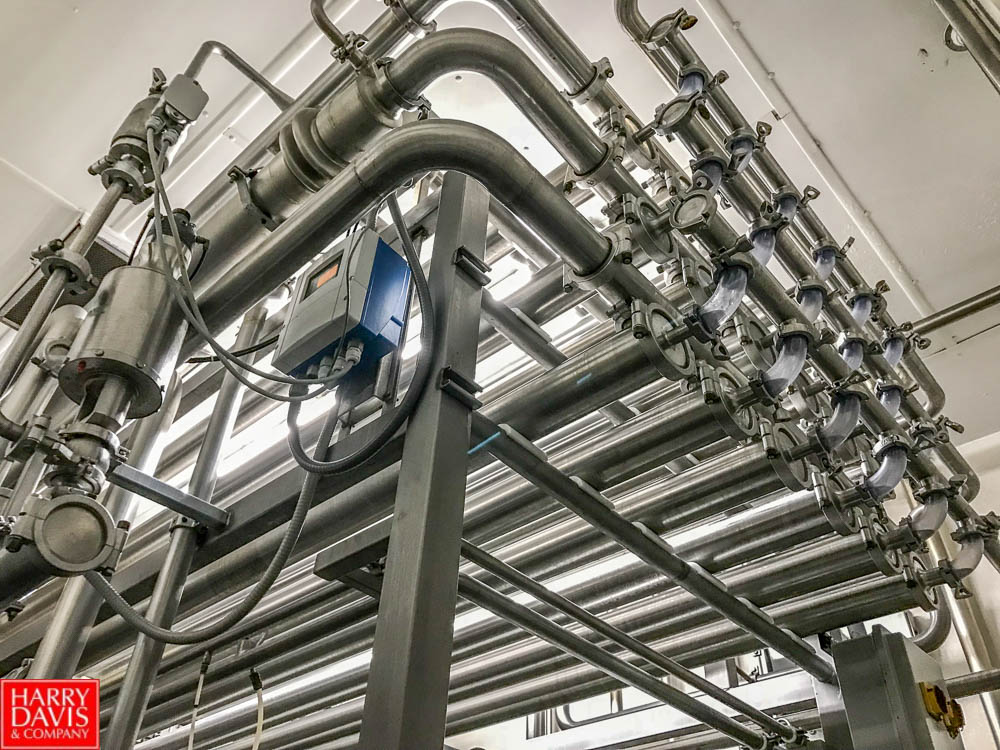

• (100’s) WCB Mix Proof & Other S/S Air Valves.
• Flowverter with (3) 3″ Sanimatic Straight Line End Inlet Strainer Assemblies, Kpatent Inline Refractometer, Kenics 3 KMR-SAN- 6 Inline Static Mixers.
• (2) E+H Flowmeter, SaniMatic Angle Line End Inlet Strainer, Kpatents Inline Refractometer, Admix 17.3″ OAL 6 Element 2″ Sanitary Static Mixer and Blender.

–

CREAM & GREEK YOGURT SEPARATORS

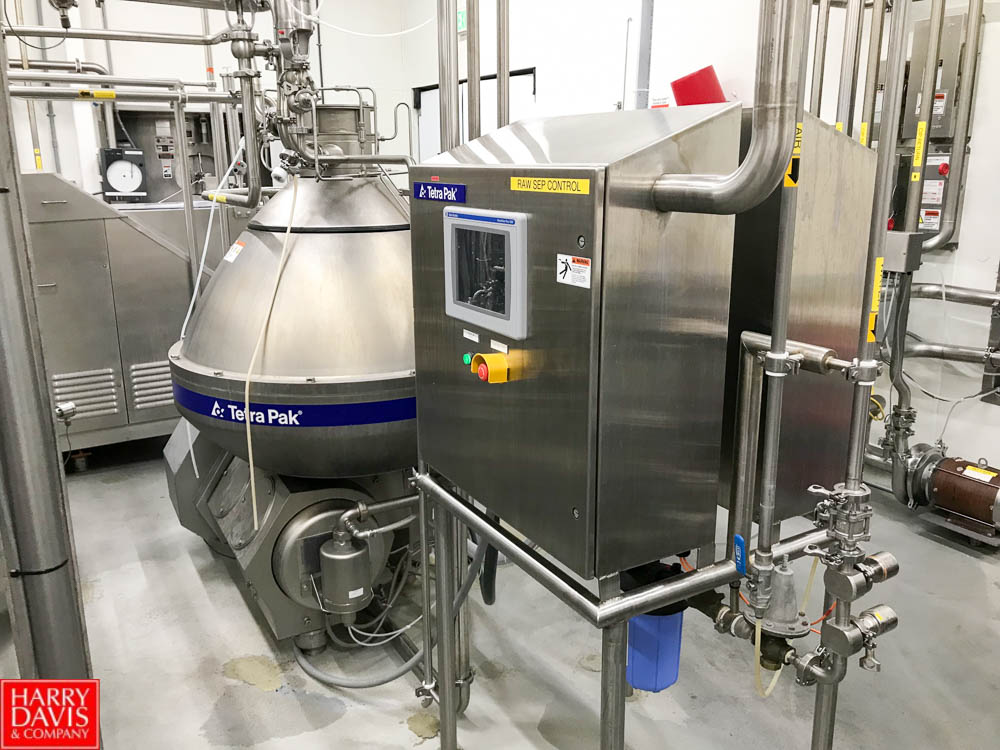

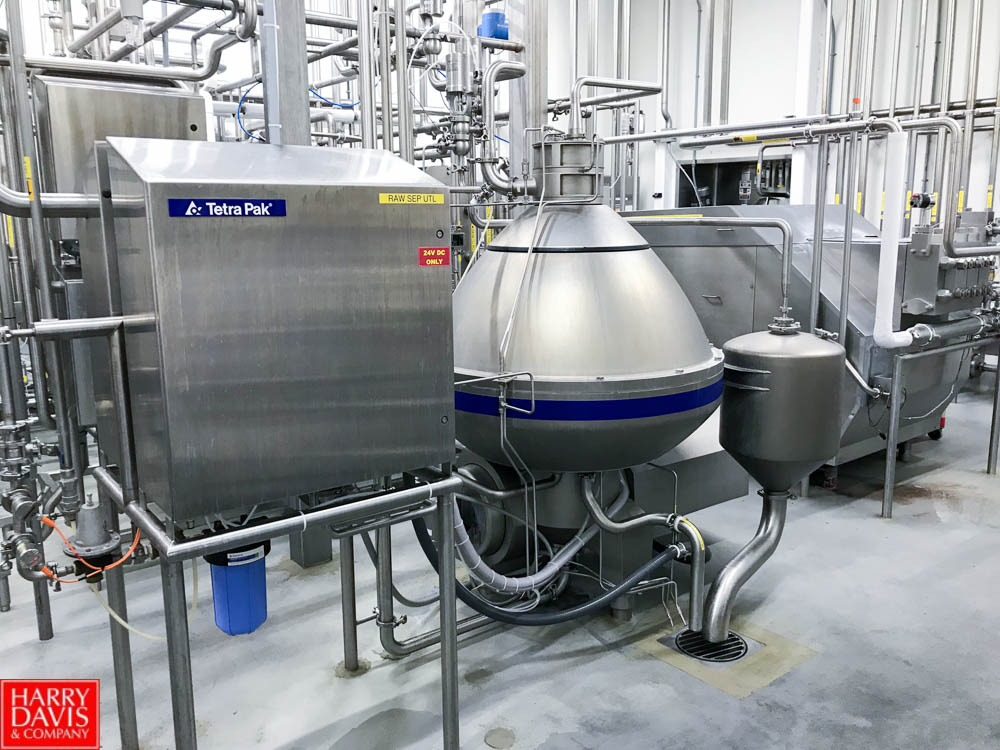

• 2017 Alfa Laval C30 8000 Gal./Hr. Cold Milk Separator with Control Panel, VFD, Spare Motor, Tetrapak C6-SH Plate Heat Exchanger, Cream Heat Treating System including Balance Tank, Level Indicator, Waukesha 2045 and (2) 2065 Centrifugal Pumps, Waukesha Valves, Control Panel, Waukesha 030U2 Positive Displacement Pump, Tetrapak C6-SH Cream Heating and Cooling Plate Heat Exchanger, and Tube Heat Exchanger Skid.
• 2011 GEA Westfalia Soft Cheese KDB 30 Separator with Valve Skid, CIP System, Tube Heat Exchanger, Dual Tetrapak C6-SH Plate Heat Exchangers for Preheating and Cooling, 150 Gal. Surge Tank, Rotork Smoothing Valve, Control Panels, Waukesha 2045, 2065, 2085 Centrifugal Pumps, and Waukesha 130U2 Positive Displacement Pumps.

–

REVERSE OSMOSIS SYSTEM

• Filtration Engineering Reverse Osmosis (RO) System (50 Gal./Min. capacity) with 3 Loops, Feed and Concentrate Tanks, Alfa Laval LKH-25 Pump, Fristam FPX174-205, FM312-175, FM312-150 Pumps, Waukesha 2045 and 2065 Centrifugal Pumps, E+H Flowmeters, Turbidity Sensor, and CIP System with Tube Heat Exchanger.

–

POWDER BLENDING TABLE

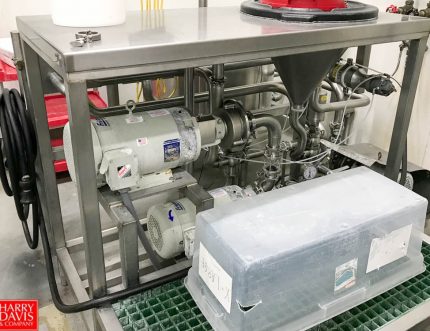

• Fristam Powder Mixing System with Balance Tank, Fristam FS 3522 and FZX 2150 Pumps, and Waukesha 2065 Centrifugal Pump. Blends more than 150 Lbs./Min. at 50 Gal./Min. Lightly Used.

–

REBUILT HOMOGENIZER & CREAM PASTEURIZER

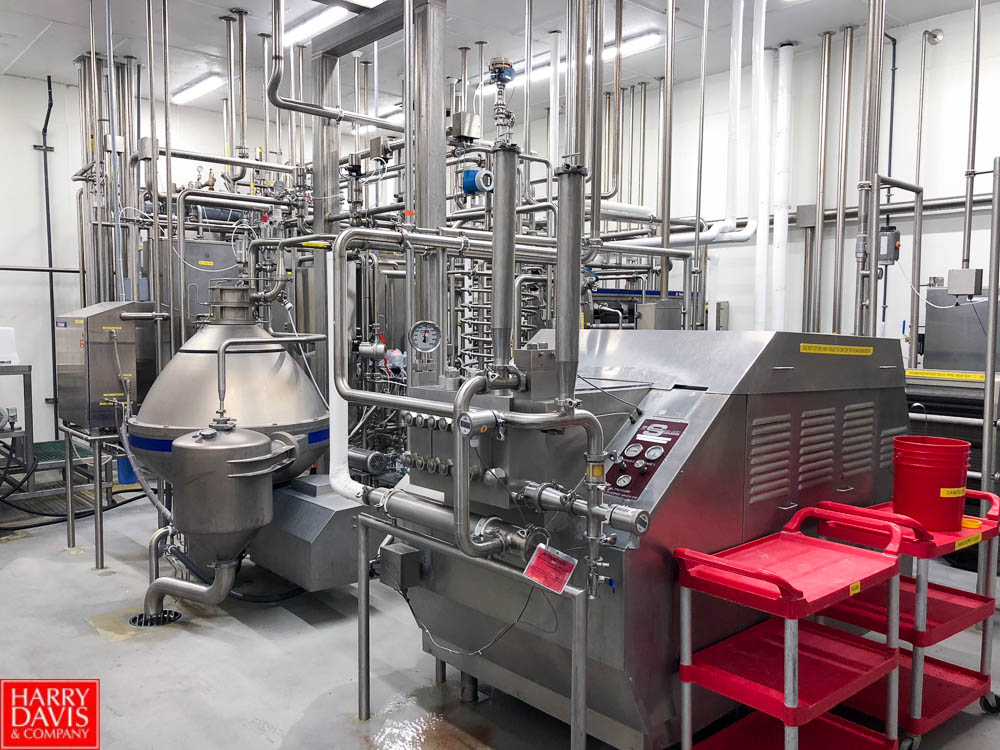

• Rebuilt APV Homogenizer Model: MS45-3TPS, 2 Stage, 3 Cylinder, Tapered Poppet Valve Spring with Allen Bradley Powerflex 400 VFD and Spare WEG 75hp Motor.

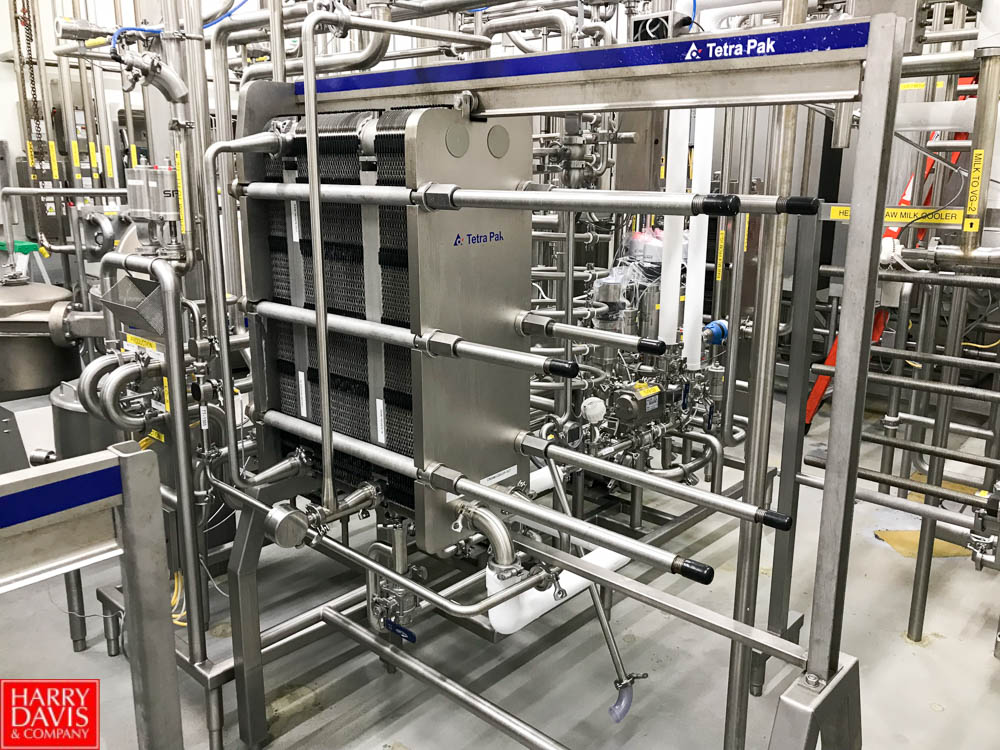

• Tetra Pak Cream Pasteurizer with Tetra C6-SH Plate Heat Exchanger, Holding Tube, Balance Tank, Pumps, Valves, Hot Water Set and Allen Bradley Controls.
• (6) AGC & Tetra Plate Heat Exchangers for Cooling Raw & Pasteurized Milk.

–

CIP SYSTEMS

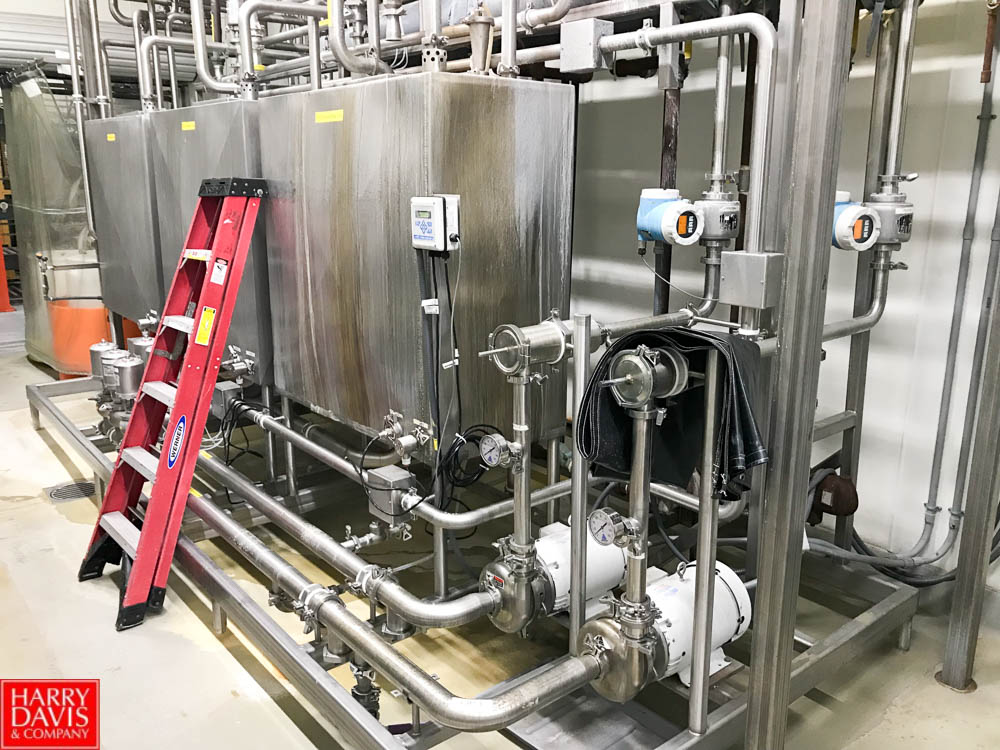

• Multitank CIP System with 250 Gal. Wash/Rinse/Reclaim Tanks, Valves, Shell and Tube Heat Exchanger, Waukesha 2065 Supply Pump, and Rosemount Conductivity Meter.
• Multi-Circuit CIP System With 250 Gal. Wash/Rinse/Reclaim Tanks, Valves, Dual Shell and Tube Heat Exchangers, Dual Waukesha 2065 Supply Pumps, and Rosemount Conductivity Meter.
• Multitank CIP System With 500 Gal. Wash/Rinse/Reclaim Tanks, Valves, Shell and Tube Heat Exchanger, Waukesha 2065 Supply Pump, and Rosemount Conductivity Meter.

–

(6) YOGURT CUP/DRINKABLE BOTTLE FILLING/BULK FILLING LINES

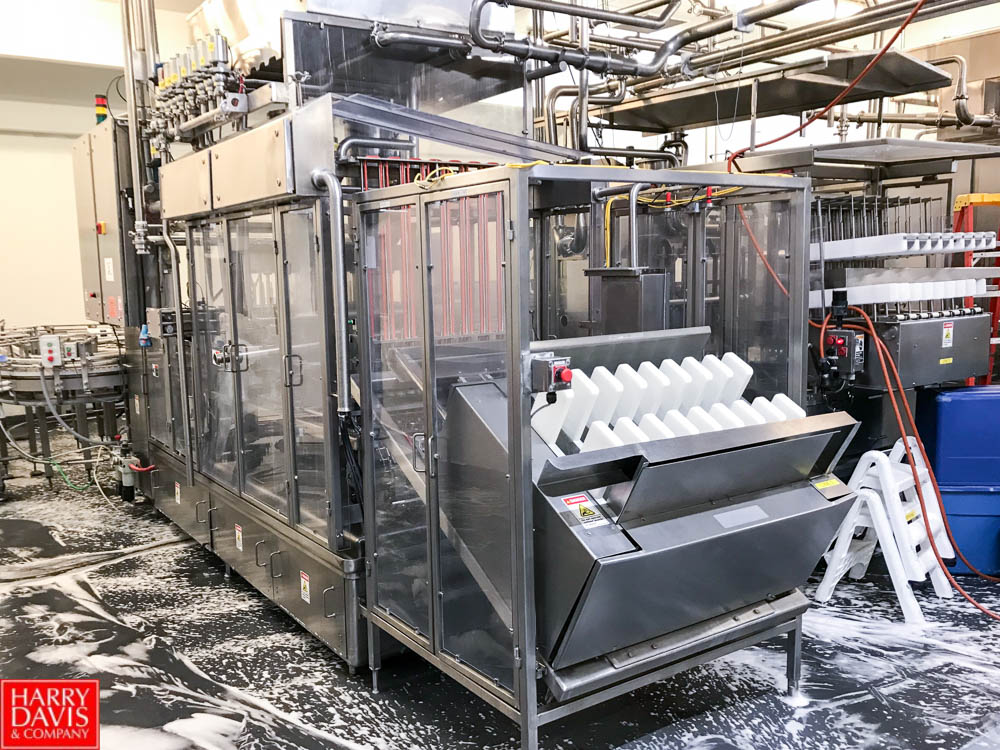

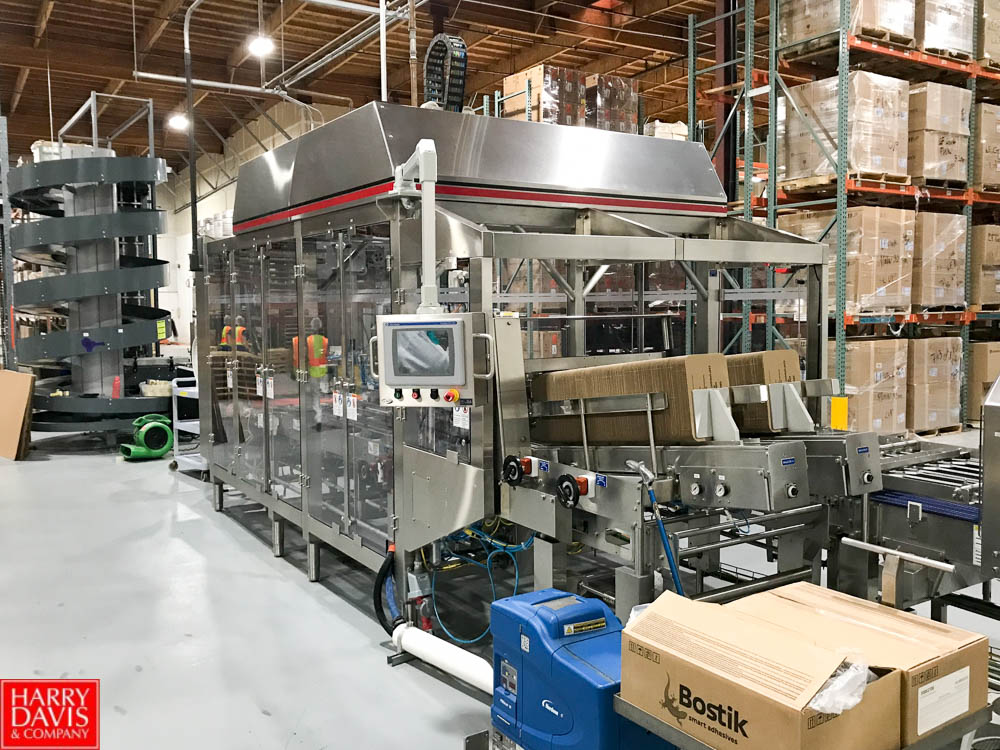

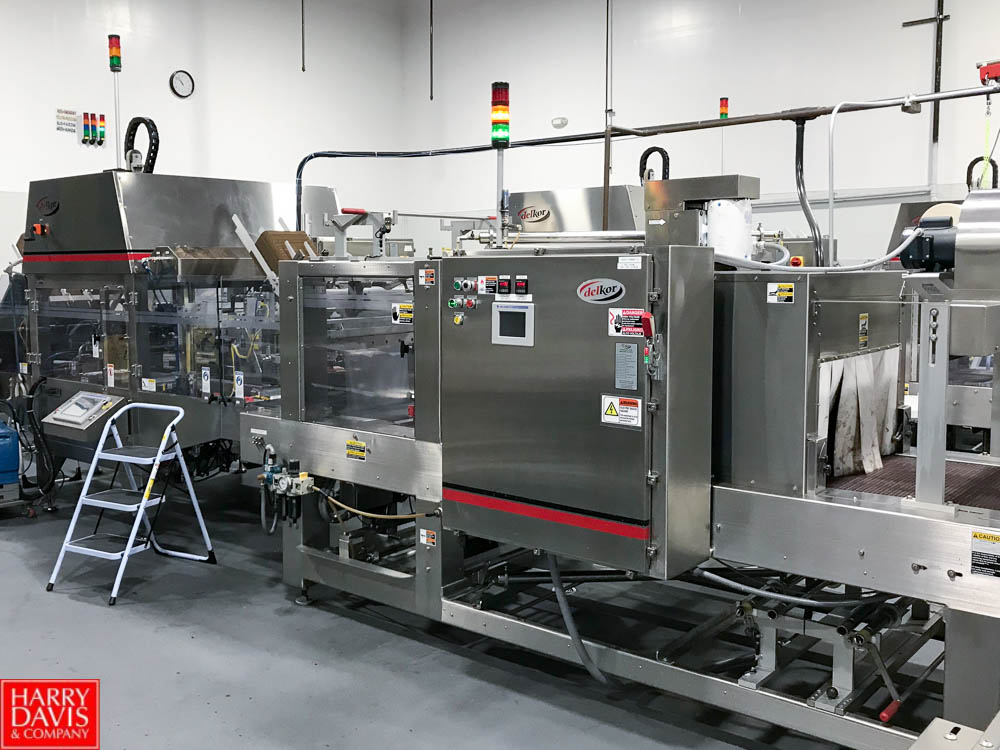

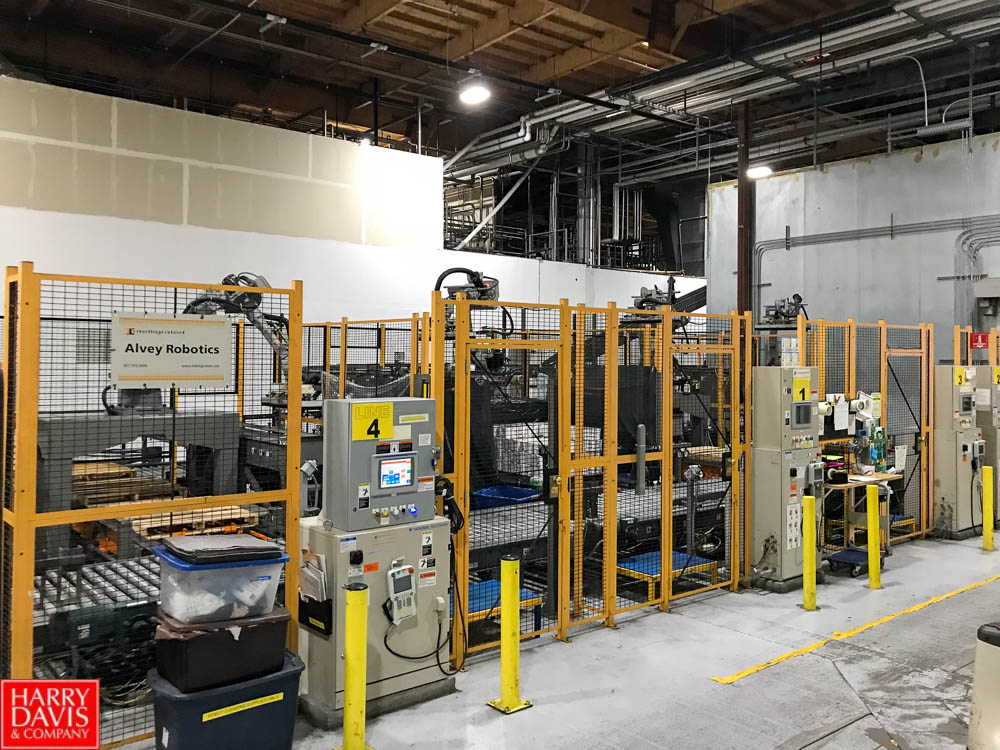

• Line 1 – 2011 Modern Packaging SL1X4 – 4-Lane Large Cup (10, 16, 32 oz) Product Filling Machine with Cup Dispenser, Film Cutter, Heat Sealer, Lidder, and Definox CIP Valves – Filler Designed for 40 Cycles Per Minute; Delkor SP500i Spot Pak Rigid Case Packer Shrink Wrap Machine – Capable of Double Stacking with Delkor 25TW-28 SS Heat Tunnel, Side Film Loader, Nordson Problue 10 Glue Unit, and 90 Degree Turn Conveyor; Robotic Palletizing System with Motoman Model EPL-80 Robot with 176 Lb. Capacity, Motoman NX100 Controller with Memory For 60,000 Steps, 10,000 Instructions, Robot Work Cell, and Safety Fence.

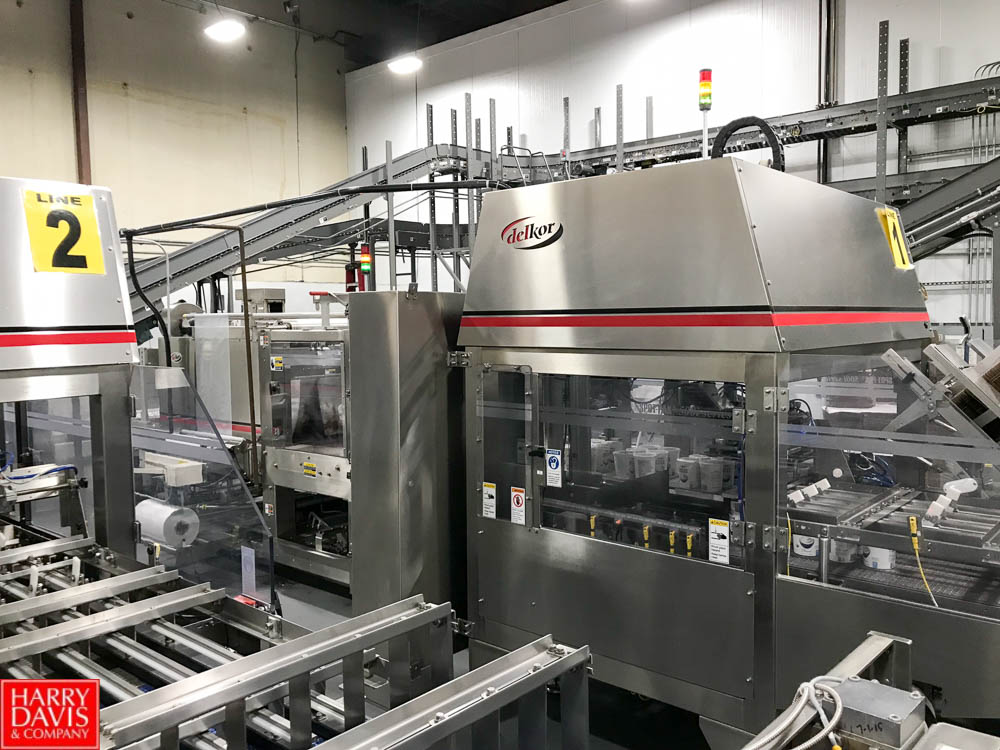

• Line 2 – Modern Packaging SL1x8 – 8-Lane Small Cup (6 oz) Product Filling Machine with Cup Dispenser, Foil Placer, Heat Sealer, and Definox CIP Valves – Filler Designed for 40 Cycles Per Minute; Delkor SP500i Spot Pak Rigid Case Packer Shrink Wrap Machine – Capable of Double Stacking with Delkor 25TW-28SS Heat Tunnel, Nordson Problue 10 Glue Unit, and 90 Degree Turn Conveyor; Robotic Palletizing System with Motoman Model EPL-80 Robot with 176 Lb. Capacity, Motoman NX100 Controller with Memory For 60,000 Steps, 10,000 Instructions, Robot Work Cell, and Safety Fence.
• Line 3 – Modern Packaging SL1x8 – 8-Lane Small Cup (6 oz) Product Filling Machine with Cup Dispenser, Foil Placer, Heat Sealer, and Definox CIP Valves – Machine Designed for 40 Cycles Per Minute, Delkor SP500i Spot Pak Rigid Case Packer Shrink Wrap Machine – Capable of Double Stacking with Delkor 25TW-28 SS Heat Tunnel, Nordson Problue 10 Glue Unit, and 90 Degree Turn Conveyor; Robotic Palletizing System With Motoman Model EPL-80 Robot with 176 Lb. Capacity, Motoman NX100 Controller with Memory For 60,000 Steps, 10,000 Instructions, Robot Work Cell, and Safety Fence.
• Line 4 – 2012 Oystar Autoprod FP1x8 – 8-Lane Single and Split Cup Product Filling Machine with Cup Dispenser, Prefiller Hopper, Filler Hopper, Foil Placer, Heat Sealer, GEA CIP Valves, and Fristam FZX 57.5 Hp Drain Pan Pump – Machine Designed for 40 Cycles Per Minute; Dynac 6400 Single File Accumulator with High Pressure CAT 7CP6110 Pump for Conveyor Cleaning; Delkor SP65Oi Spot Pak Rigid Case Packer Shrink Wrap Machine – Capable of Double Stacking with Delkor 25TW-28 SS Heat Tunnel, Nordson Problue 10 Glue Unit, and 90 Degree Turn Conveyor; Robotic Palletizing System with Motoman Model MPL-80 Robot with 176 Lb. Capacity, Motoman DX100 Controller with Memory for 60,000 Steps, 10,000 Instructions, Robot Work Cell, and Safety Fence.
• Line 5 – 2013 Pacific Packaging AF-501-NW 5 Gal. Net Weight Inline Pail Filler with Weigh Station and Lidder – Currently Running at 5-6 Pails Per Minute.

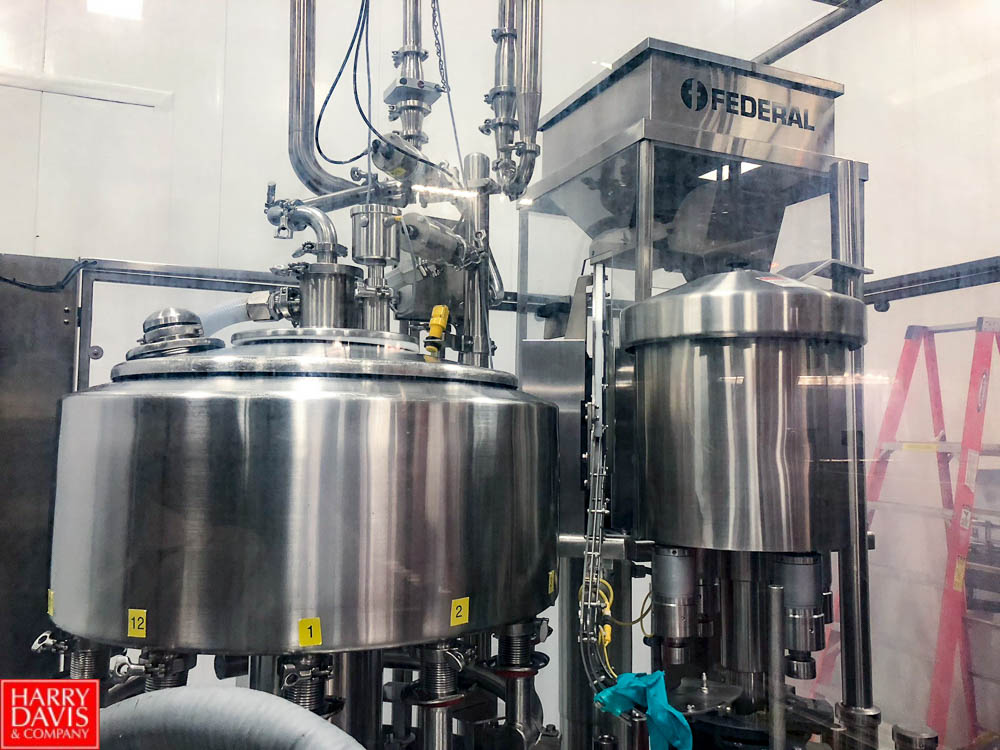

• Line 6 – Federal Manufacturing 2386GWSS2 Rotary Bottle Level Filling Machine With Capper, Dyco Bottle Depalletizer, and Alfa Laval CIP Valves – Machine Designed For 80 bpm, Currently Running At 96 bpm. Tripak MSA 180 Automatic Shrink Sleeve Applicator with 4-1/2″ Stainless Steel Tabletop Conveyor with Timing Screw, Tamp Down Brush Add-On, Tripak ST 1 4.5 Steam Tunnel, and Sterling 4134-JX Condensate Return Pump; 2015 Delkor 48Oi Spot Pak 4-Wide Bottle Case Packer Shrink Wrap Machine – with Delkor 115-CSS-24 Heat Tunnel, and Nordson Problue 10 Glue Unit (2013).
• (14) Diagraph and Markem Cup, Bottle & Case Coders.
• (2) 3M-Matic 700A Adjustable Case Sealer with AccuGlide II Taping Heads for Uniform Sized Boxes – 85 Lb. Max Capacity, 24.5” Max Height, 21.5” Max Width.
• (2) Orion L66-17S Stretch Wrapper – 4000 Lb. Dynamic Weight Capacity with a 14 RPM 20″ Film Delivery System.
• Phoenix PLP-2150 Stretch Wrapper – 5000 Lb. Dynamic Weight Capacity with a 15 RPM 20″ Film Delivery System.

–

RECEIVING BAY

• Tanker Receiving System – Waukesha 2085 7.5 Hp Product Transfer Pump, Tanker Outlet Hose, Flowmeter, Sock Screen, and Waukesha Sanitary Valves.
• Saferack Safety Platform, Model: W/ G4-SAS Style Gangaway for Tanker Truck Access.

–

REFRIGERATION SYSTEMS

• (2) Pro Refrigeration Glycol Chillers, Model: PCAH2/30F12H22SP (760,000 BTU) with Pumps.

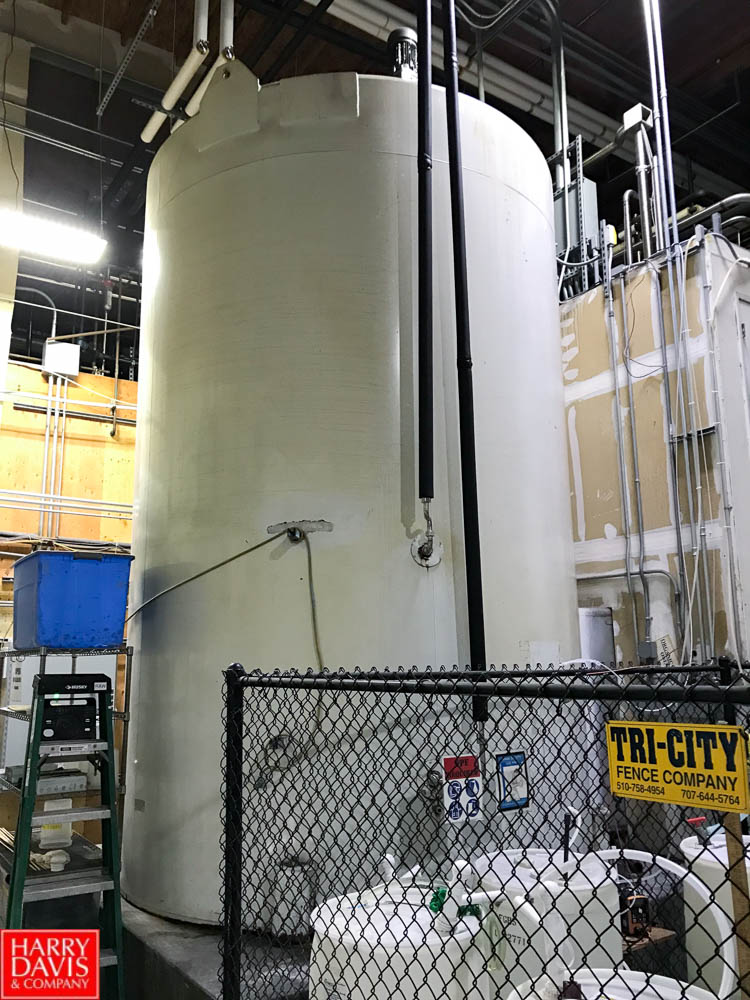

• Polyprocessing 2,500 Gal. Glycol Storage Tank, Model: XLPE with Pumps.
• Evapco Closed Circuit Water Cooling Tower, Model: ATW644I2 with Goulds 3656 Tower Pump.

–
