This Sale is in conjunction with Loeb Winternitz Industrial Auctioneers:
Key Assets
Equipment Description

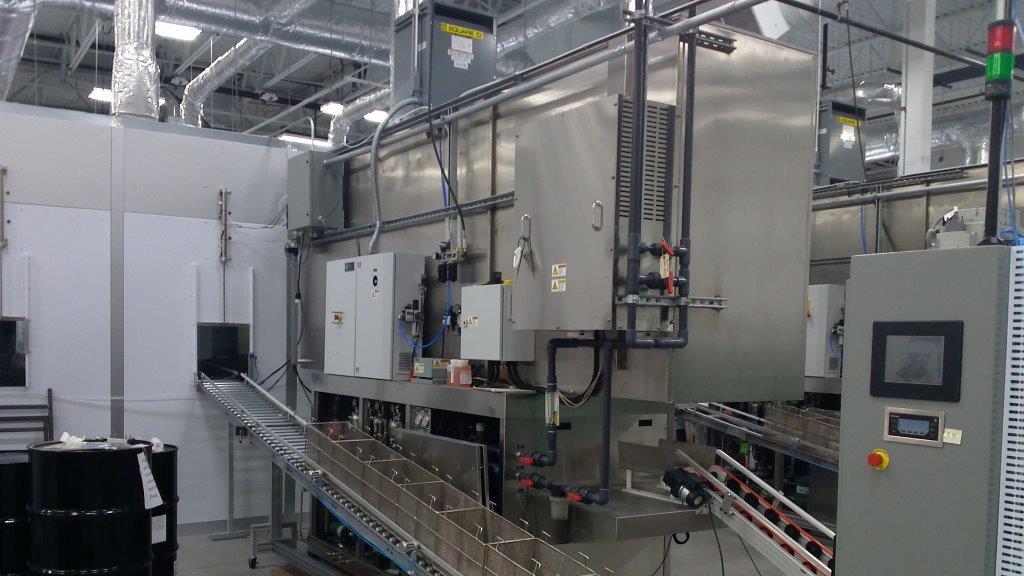

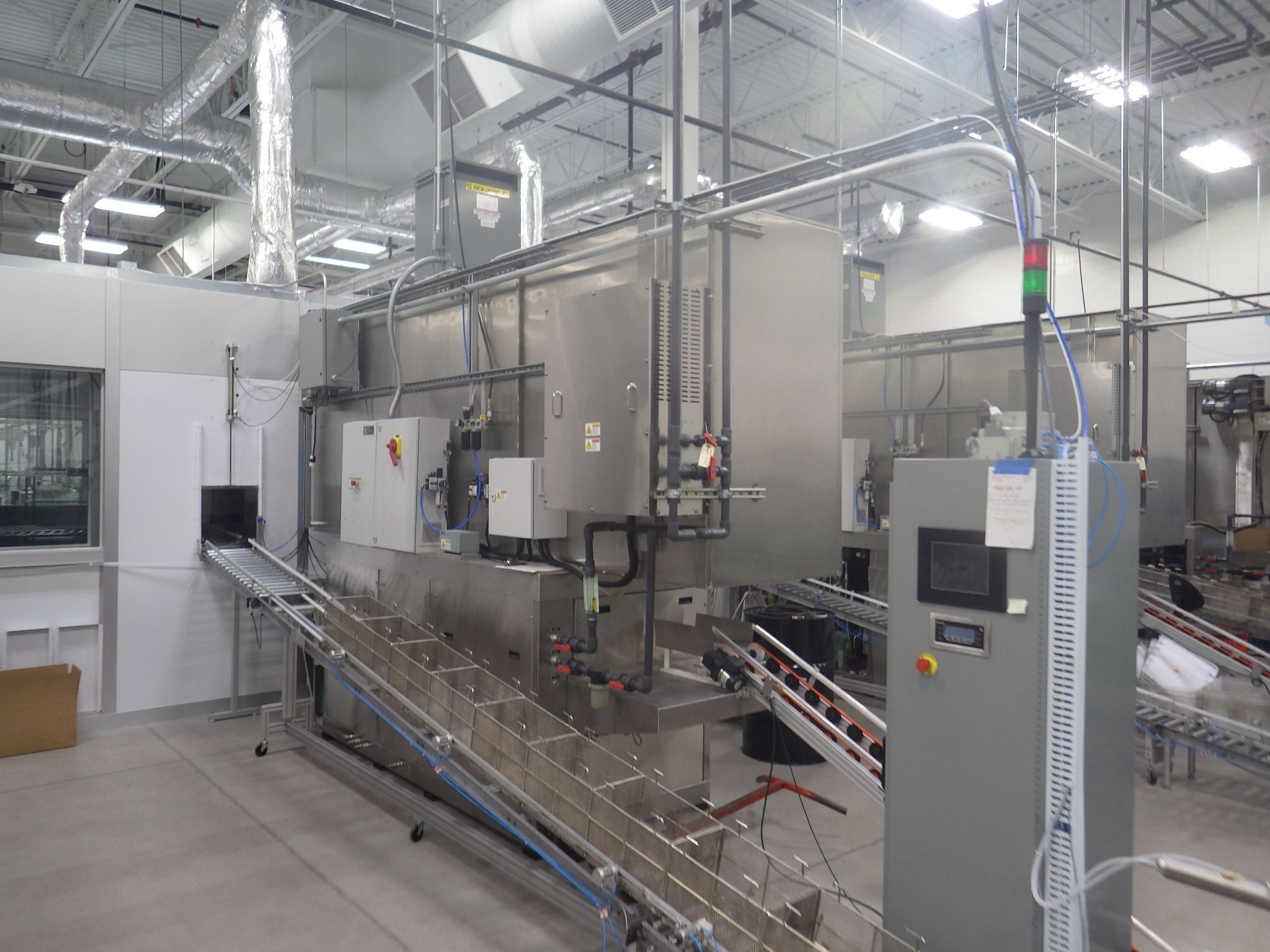

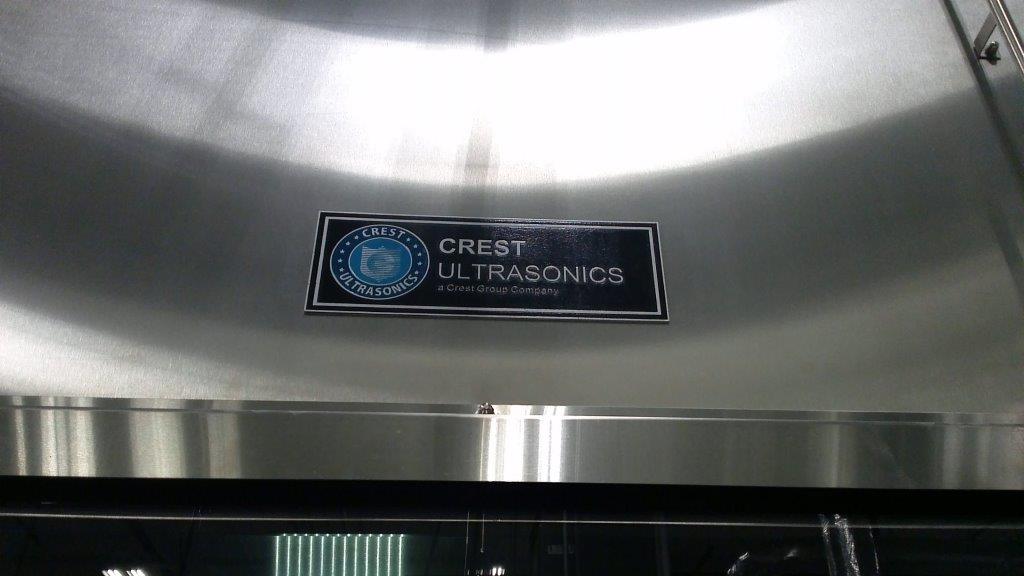

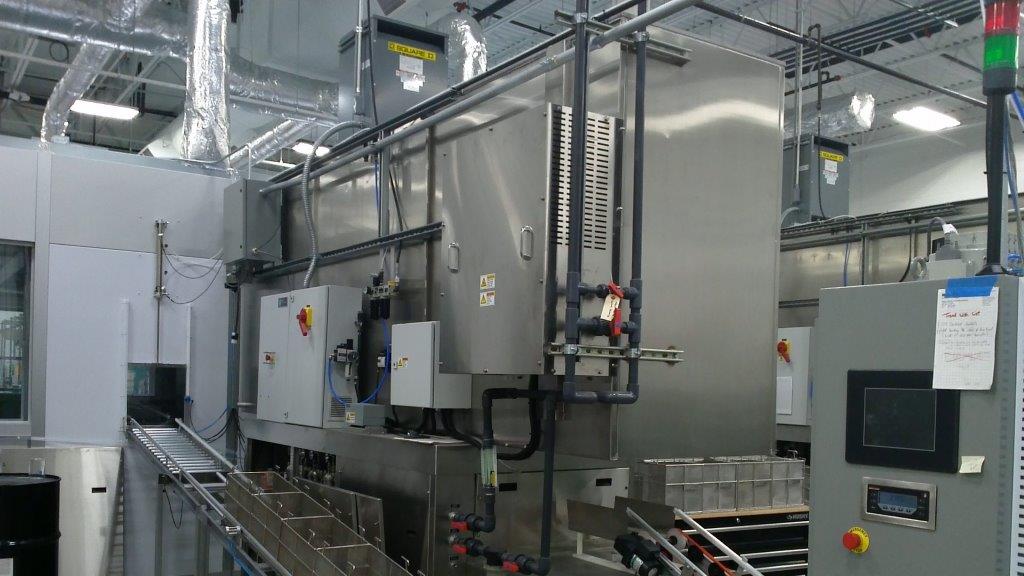

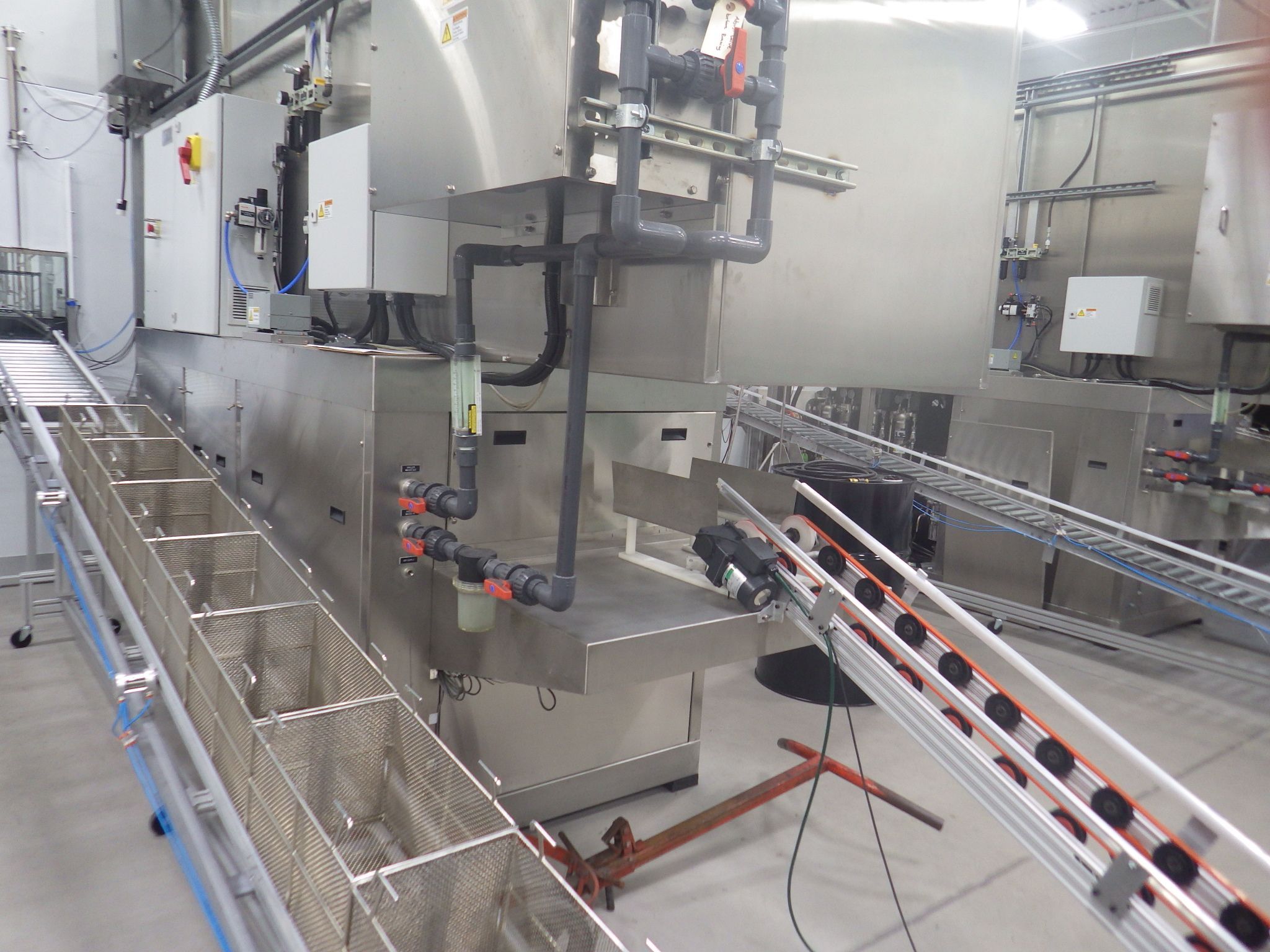

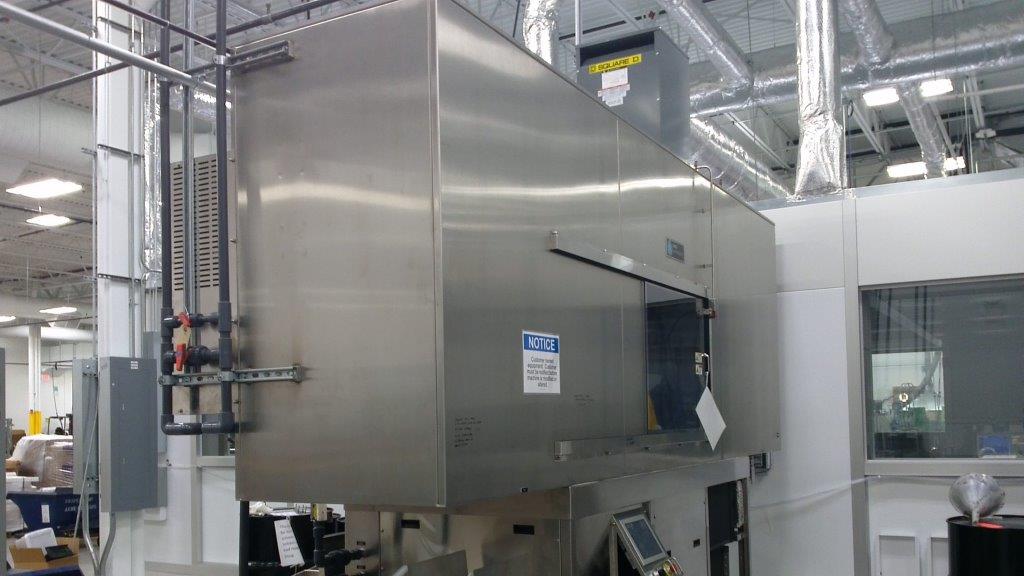

(2) Used Crest Ultrasonic Parts Washers:
- For Youtube Video — (SAMPLE VIDEO) –: //www.youtube.com/watch?v=wX9CdNysUlk
- For more information: Washer – Trasnprot – Basket Sketch
- For more information: f-300_super-heated-vapor-degreaser-datasheet
- For more information: F300 Ultrasonic Information
- For more information: //www.crest-ultrasonics.com/super-heated-non-flammable-vapor-degreaser/
- 2nd rinse tank with 40 kHz ultrasonics
- Superheat drying set-down

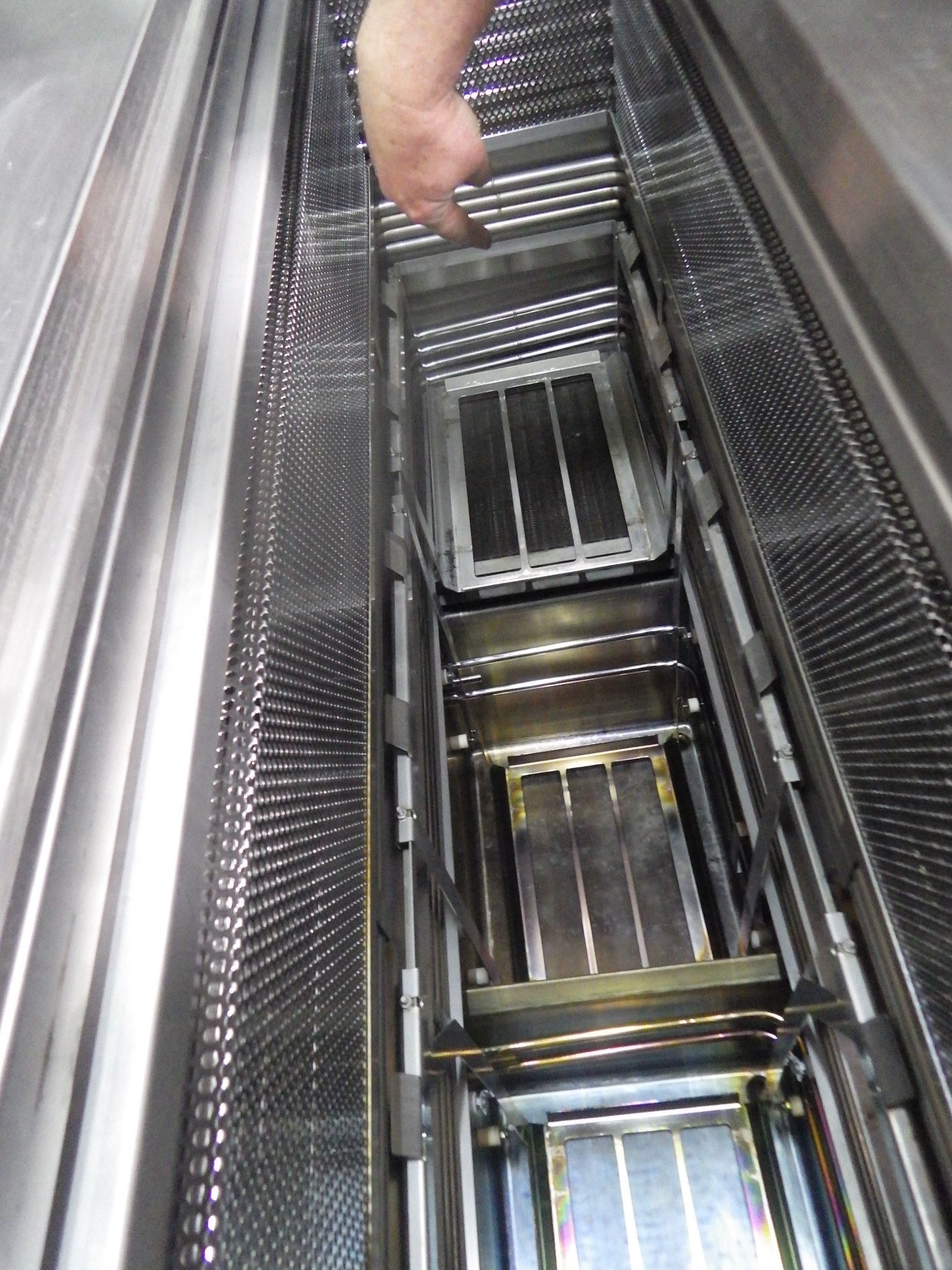

- Parallel basket automation with upper enclosure (30 pounds)
- Dual spray header for first rinse tank

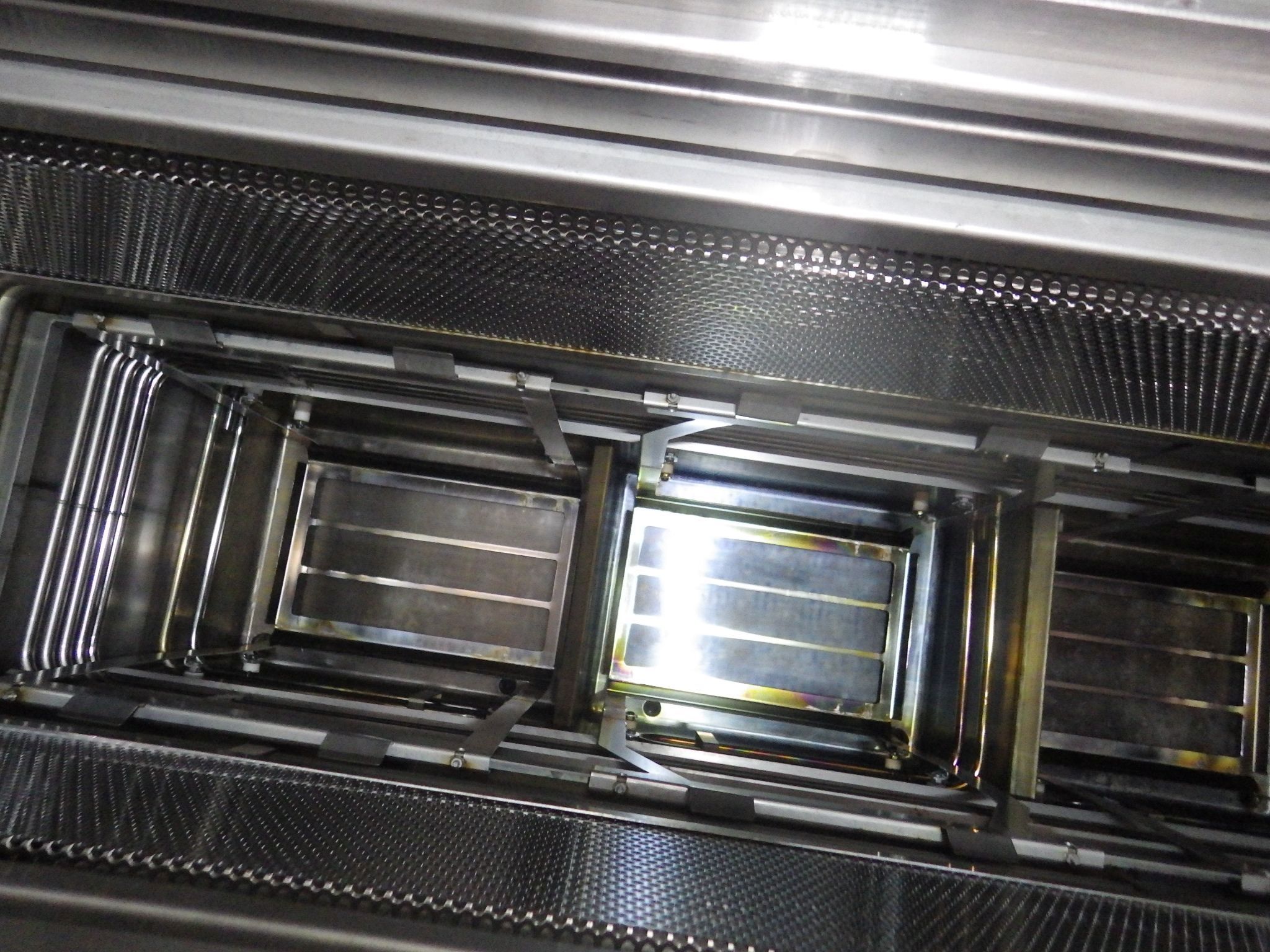

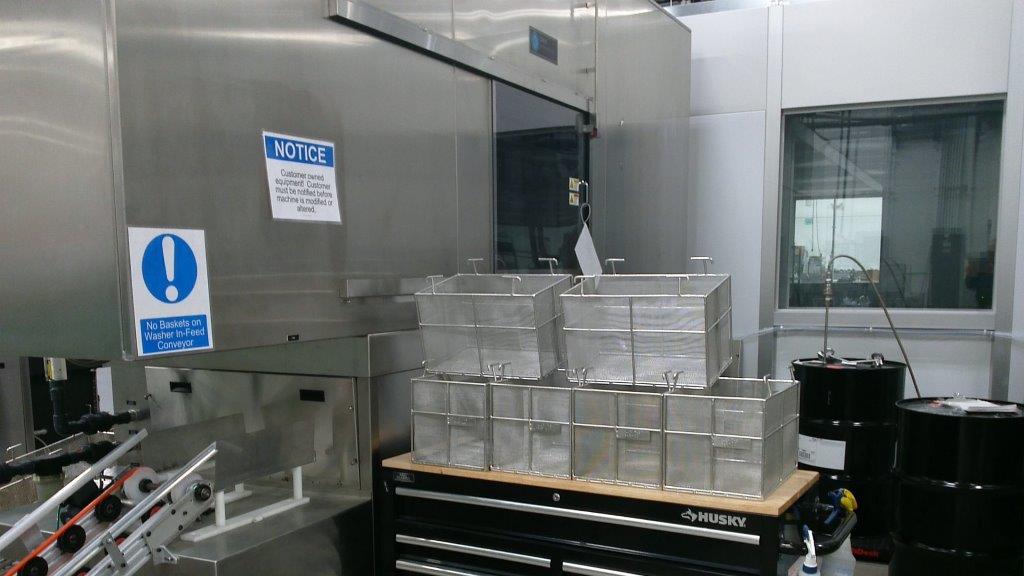

- Stainless steel cleaning baskets (2 units)
- Solvent transfer pump package
- Molecular sieve pack in the water separator
- Series filtration, sub-micron (2nd rinse)
- General system features
- Offset boil sump

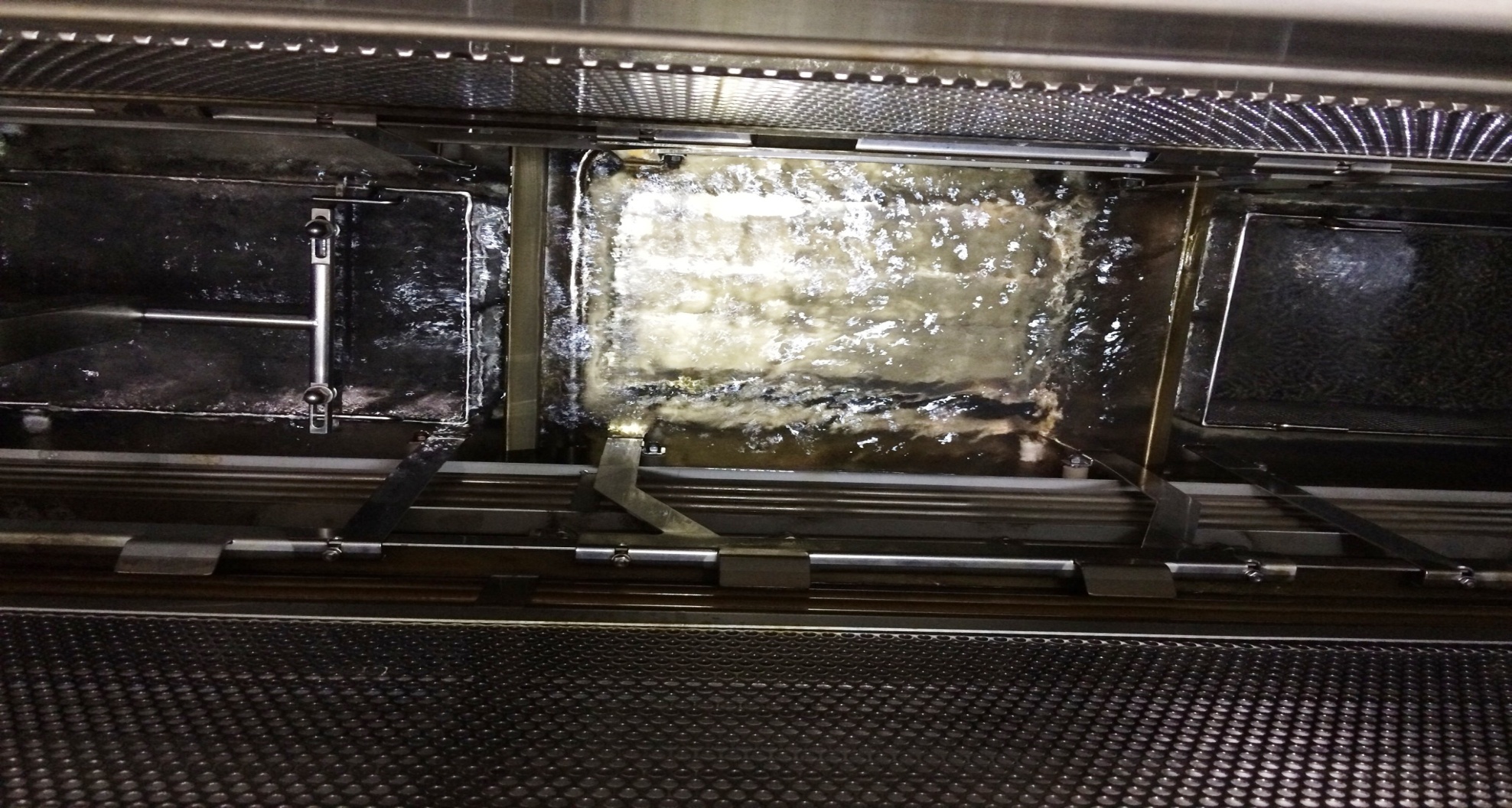

- Dual ultrasonic immersion sumps
- 304 stainless steel passivated process tanks
- 304 stainless steel support frame and counter top
- 304 stainless steel, lift-off access panels
- 300 series stainless steel plumbing with compression and/or welded fittings where appropriate
- NEMA 1 electrical enclosure with single point electrical connection

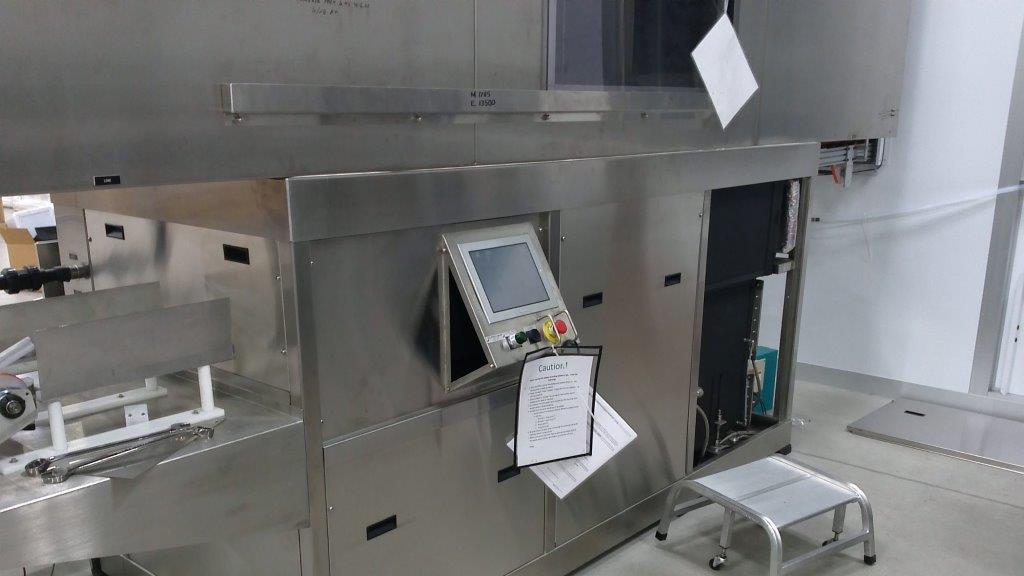

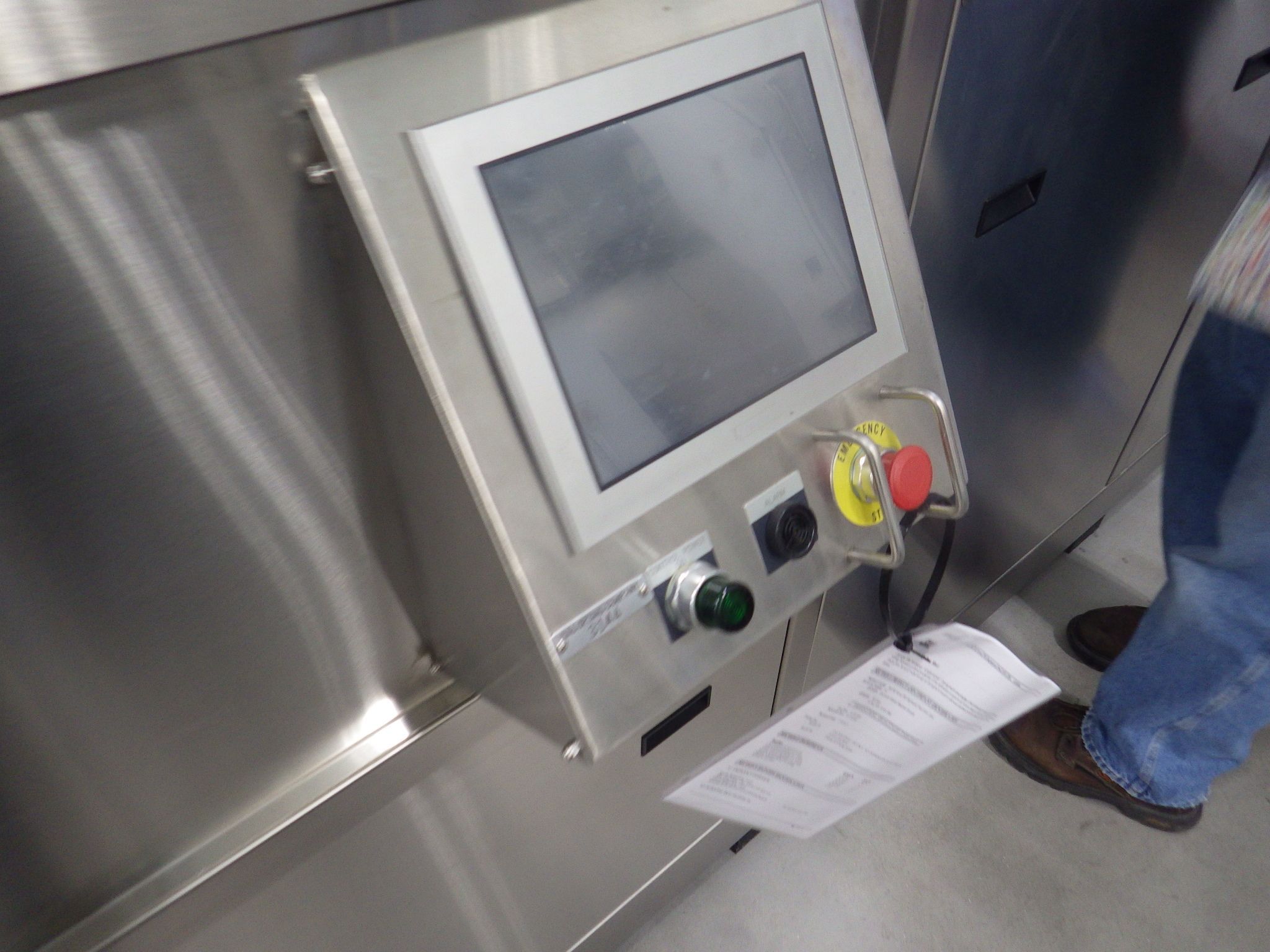

- Front mounted, recessed operator interface panel
- Maximum Basket Size: 16 inches x 10 inches x 10 inches
- Vapor Zone Height: 12 inches
- Total Solvent Volume: 50 gallons

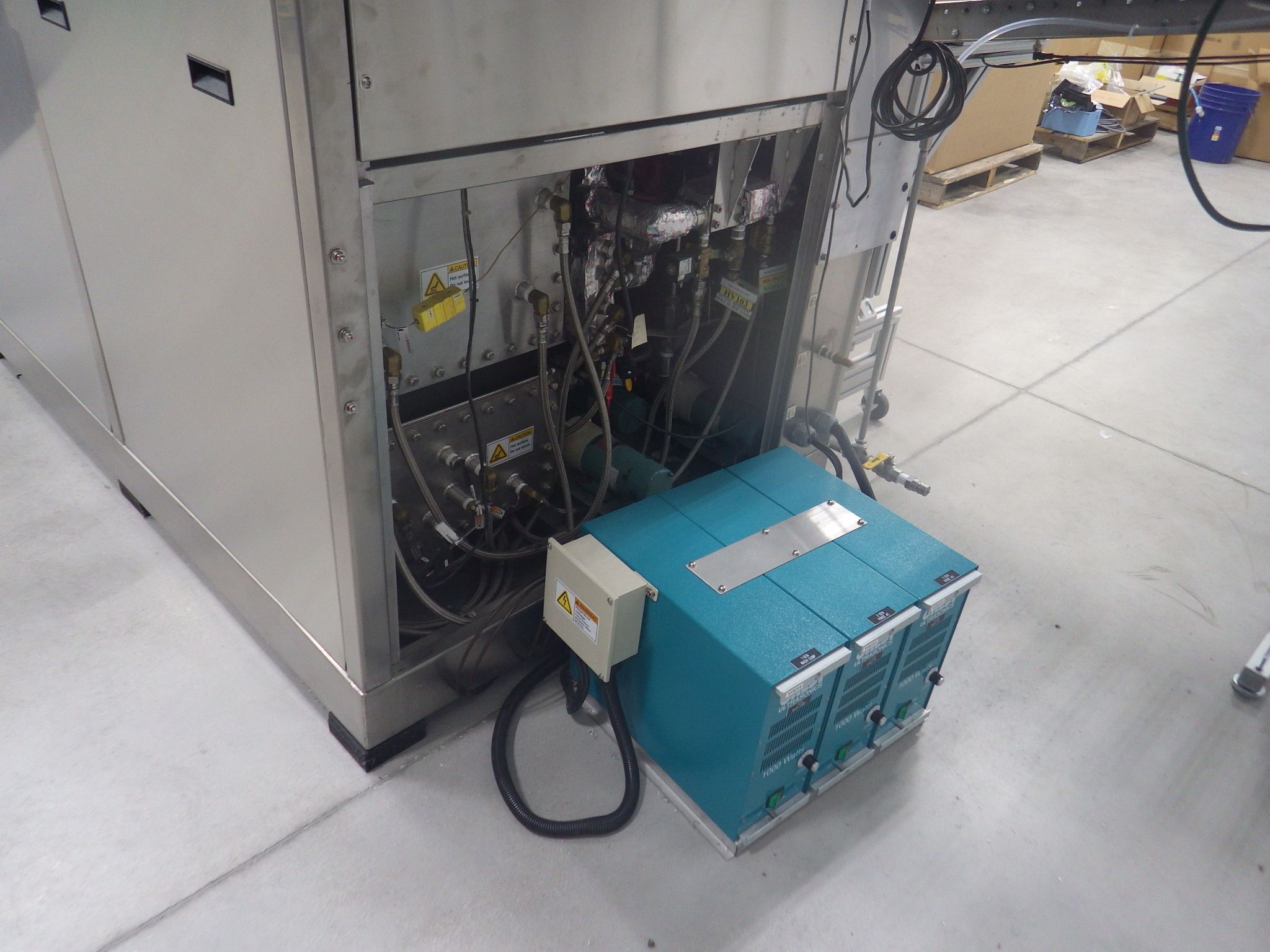

- Water cooled dual on board refrigeration systems – Requires external cooling water supply of 6 GPM at 75º F
- Boil Sump Features:
- On-board, indirect hot water-heating system
- Temperature control probe with over temp protection and solvent change out alarm feature
- Low liquid level safety
- Clean out door
- Wash Tank Features:

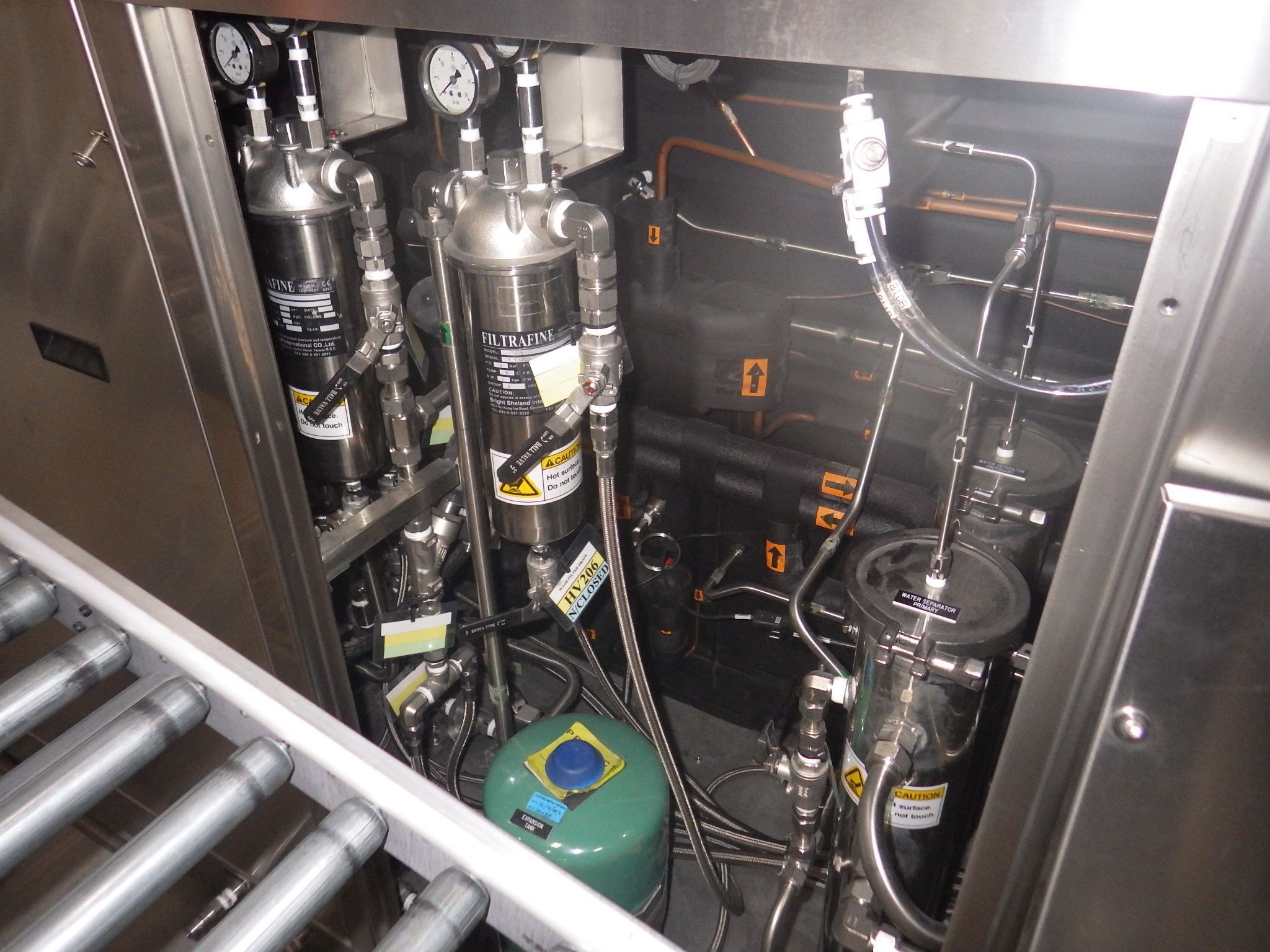

- 5 GPM recirculation/filtration system including:

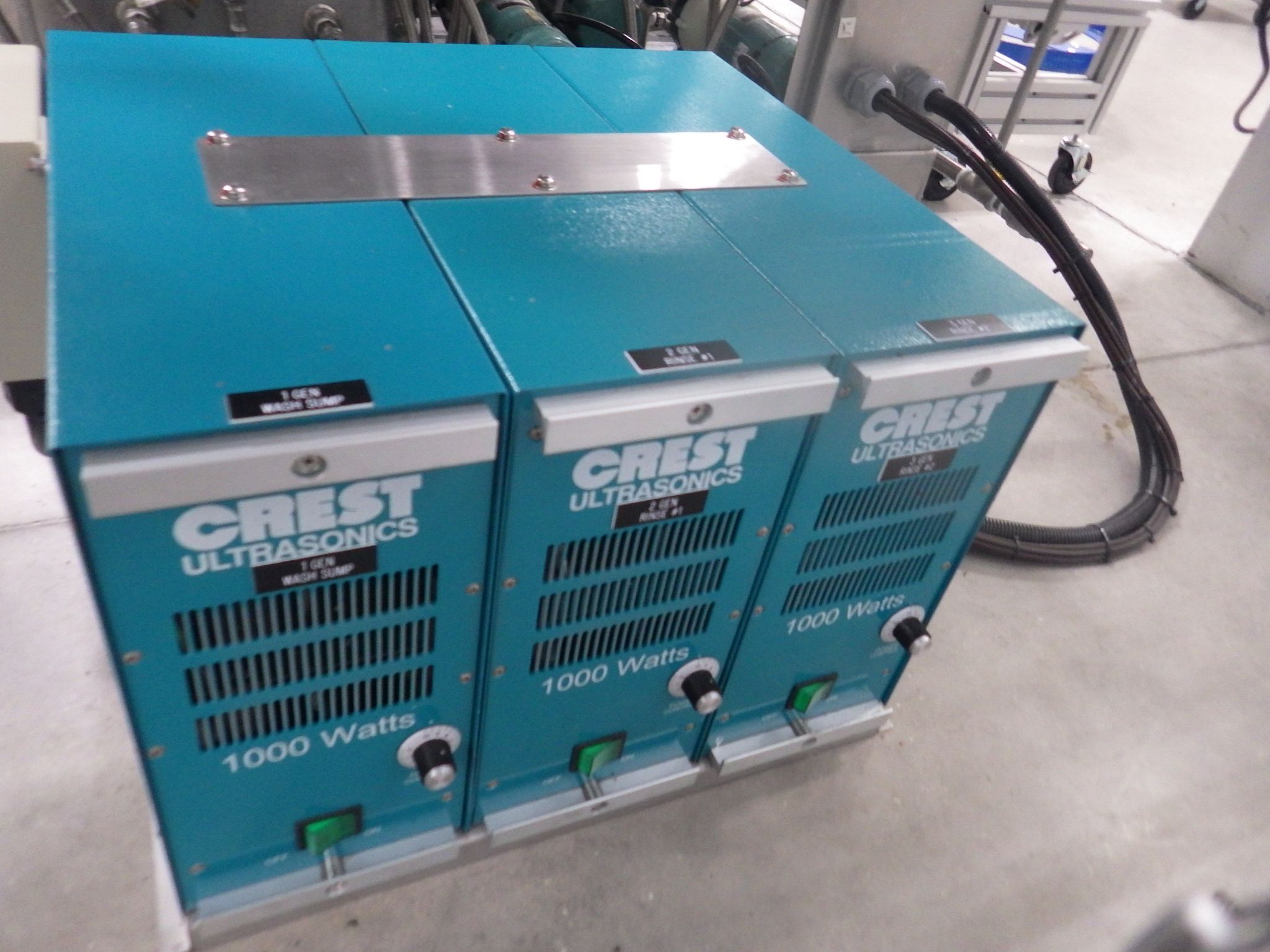

- 1000W of 40, 58, 132, or 192 kHz ultrasonics
- Pump protection strainer
- Centrifugal pump featuring a stainless steel pump head, teflon encapsulated
- Viton seals, gaskets, and O-rings, and a TEFC motor

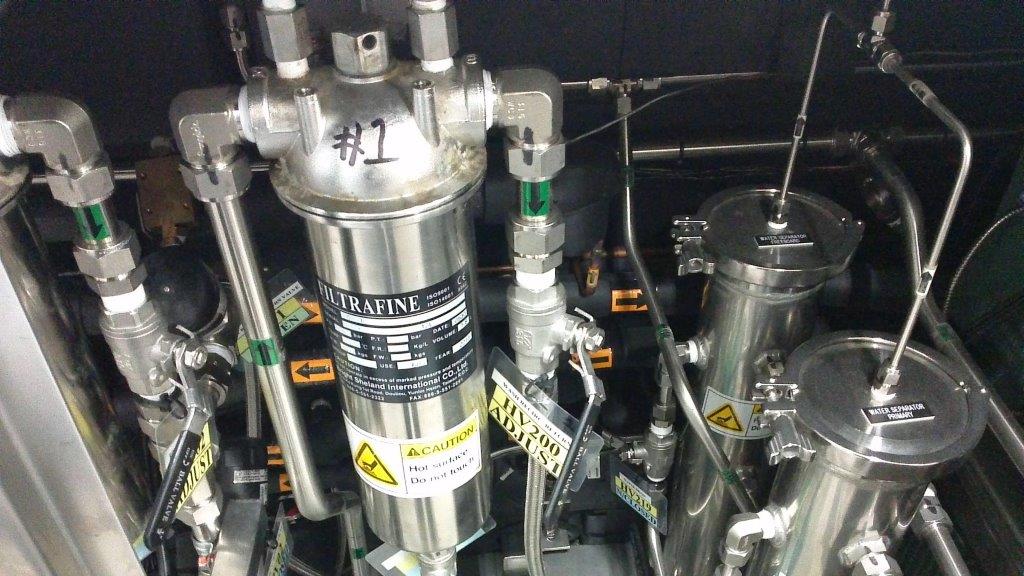

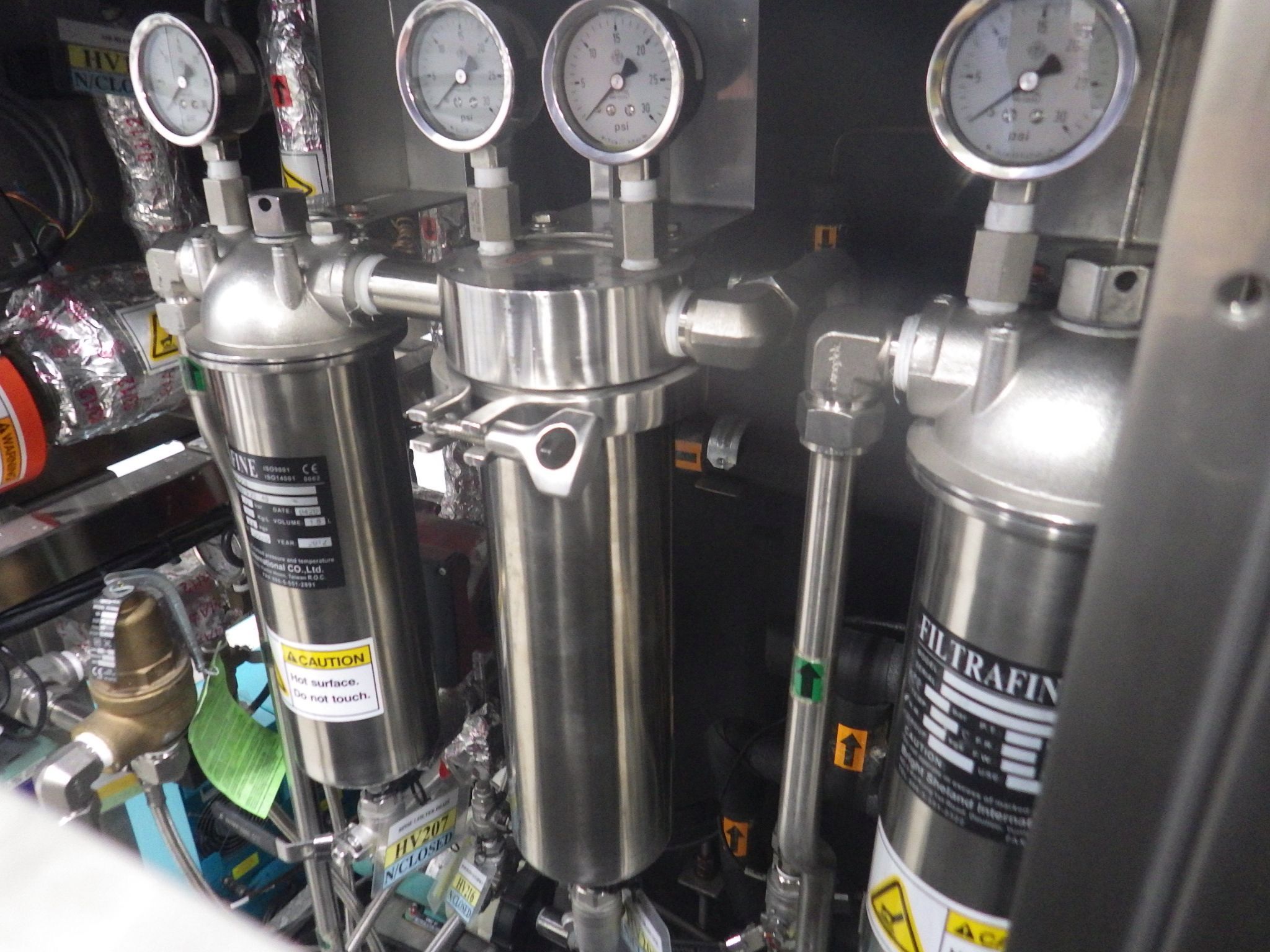

- Stainless steel filter housing
- 10 micron filter
- Pressure gauges to monitor filter pressure drop
- Manual flow control valve
- Manual isolation valves
- 5 GPM recirculation/filtration system including:
- Rinse Tank Features:
- 5 GPM recirculation/filtration system including:
- 1000W of 40, 58, 132, or 192 kHz ultrasonics
- Pump protection strainer
- Centrifugal pump featuring a stainless steel pump head, teflon encapsulated
- Viton seals, gaskets, and O-rings, and a TEFC motor
- Stainless steel filter housing
- 5 micron filter
- Pressure gauges to monitor filter pressure drop
- Manual flow control valve
- Manual isolation valves
- 5 GPM recirculation/filtration system including:
- Superheated Vapor Zone:
- High surface area tube and fin heat exchange coils
- Capable of up to 30º F above the boiling point of the solvent
- Provides quick and complete drying of parts to reduce dragout
- Freeboard Zone:
- 120% freeboard ratio to minimize solvent loss

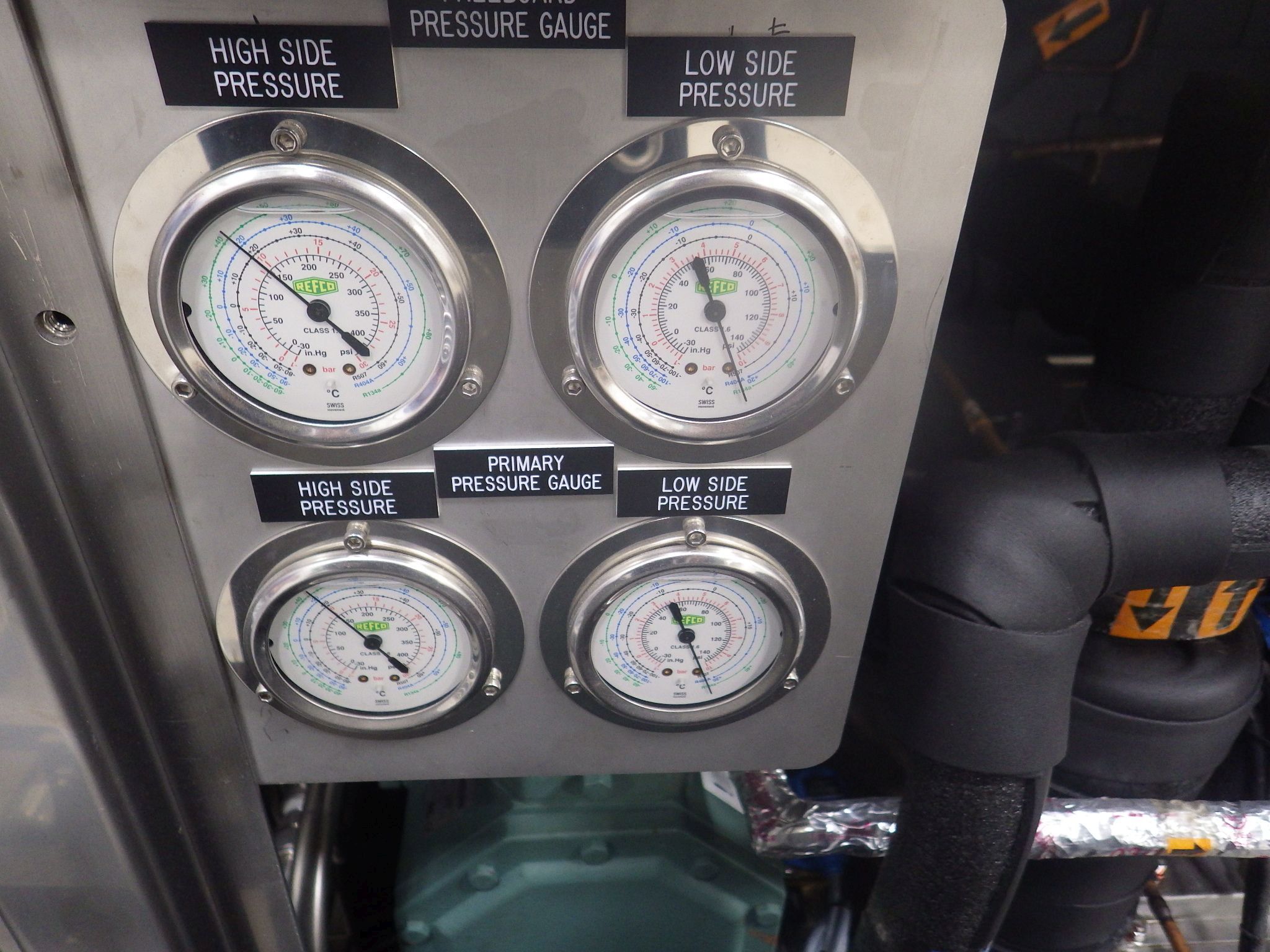

- Independent primary and secondary condenser units with direct expansion valves
- Stainless steel primary cooling coil
- Stainless steel freeboard cooling coil
- Defrost cycle for freeboard cooling coil
- Continuous cooling will be provided by the primary coil during the secondary defrost cycle
- Independent water separation housings for the main and secondary condenser coils
- The water is removed manually from the system via ball valves.
- High vapor temperature sensor
- Manual sliding downtime cover
