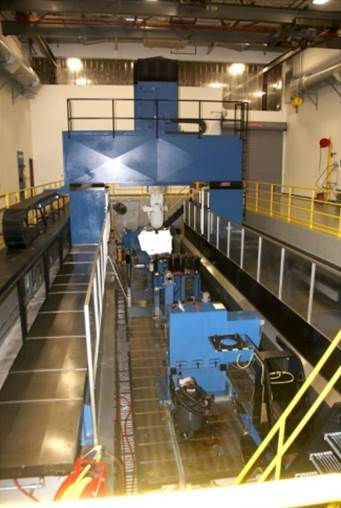

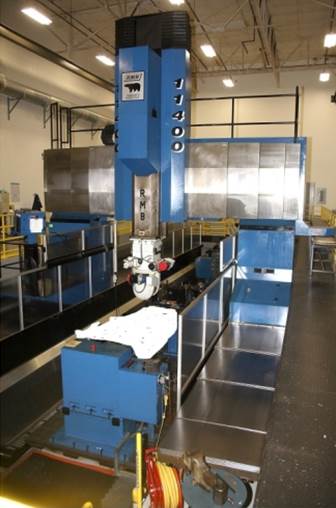

Global Private Treaty Sale of A 5-7 Axis Reko Vertical Gantry Type Milling Machine, Excess to Future Needs of Aerojet Rocketdyne. Immediately Accepting Offers.

2000 RekoM-11400XR  Gantry & Double Column Machining Centers With CNC (Fanuc 15MB) Controls

• Complete with 2 – Eimeldingen Model # 5-10 D1000 Horizontial RotaryTable Units
• With Fully integrated 6th & 7th Axis into Fanuc15MB Control
• Workpiece Length……………………………………………………….522”
• Workpiece Width……………………………………………………..…128”
• Workpiece Height………………………………………………………..84”
• X-Axis (Gantry)…………………………………………………………..450”
• Y-Axis (Head on Crossrail)……………………………………………..100”
• Z-Axis (Ram)………………………………………………………………72”
• Maximum power of milling motor…39.69 HP, Speed Range 0-3600 RPM, Cat 50 taper
• Control: GE Fanuc 15MB (DNC & Ethernet capabilities) with measuring scales for all linear axis
• AGE: 2000 very low Hours and in Excellent Condition, In Plant under power
