Complete Facility Closure of a Flexible Printed Circuit Board Manufacturer!

Screening and Photo

• Barnaby screening table
• DuPont dry film laminator with LED and LC 2400 vacuum system
• (2) Accuprint 5KW light source
• DuPont SMVL dry film vacuum laminator
• Grieve 3X3X3 oven
• Nuarc stencil making machine
• VWR 2X2X2 dispatch oven

–

Multilayer

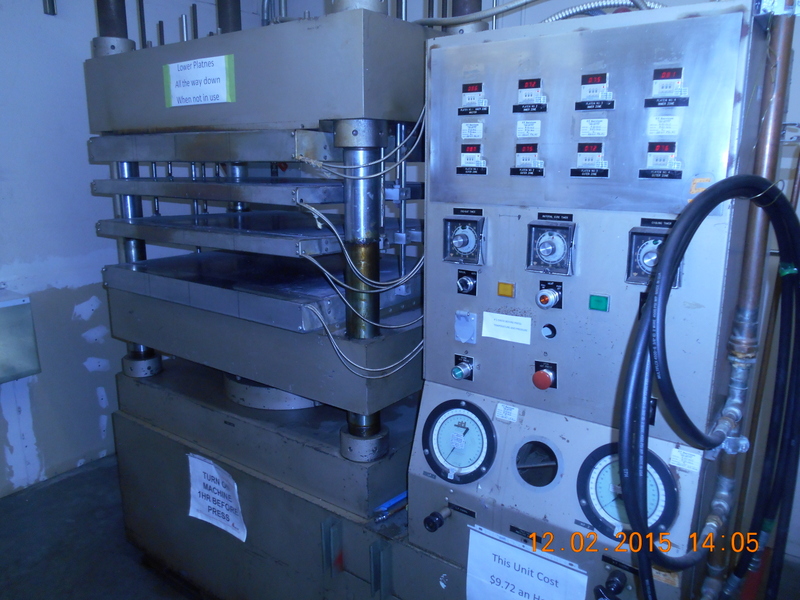

• OEM 4 opening electric press vacuum 26X26 platensPHI 3 opening electric press 24X30 platens
• PHI 4 opening cold press 24X30 platens
• PHI 3 opening electric press 20X18 platens

–

Drilling and Fabrication

• 5 spindle router with Saba Myra controller

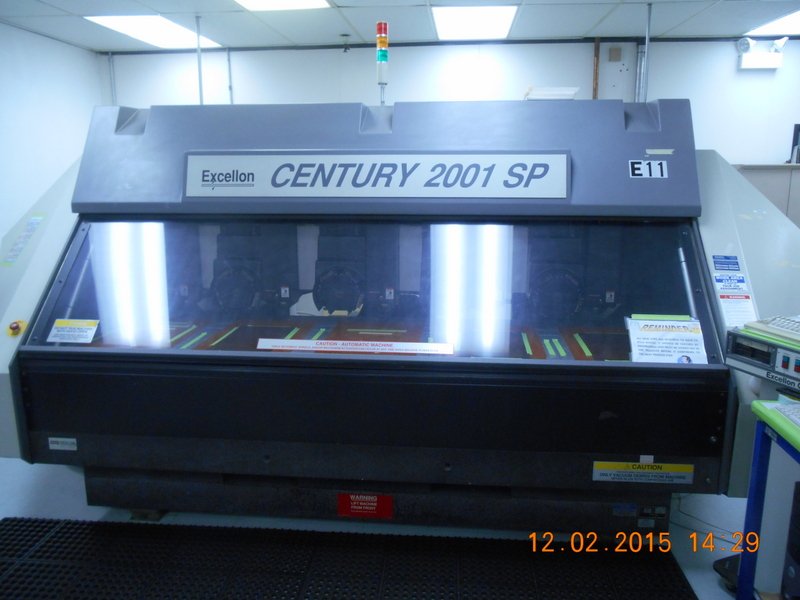

• Excellon Century 2001 SP 4 spindle 180,000 Rpm Spindles
• Excellon Mark V with CNC 6 controller with 110,000 RPM spindles
• Excellon EX-200 CNC-6 2 spindles drill router 80,000 RPM spindles
• Famco 52″ kick shear
• Dayton Manuel drill press

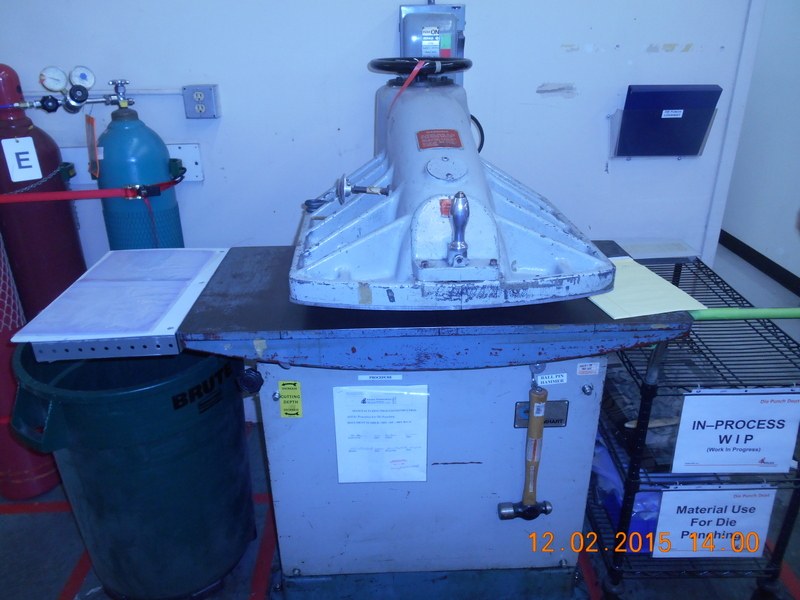

• Steel rule punch
• All used and new drill bits

–

Wet Process

• Chemcut 547 XLI Etcher with main etcher, flood rinse counter flow water rinse and dryer
• Chemcut 547 Stripper strip chamber counter flow water rinse dryer
• Electroless Copper line

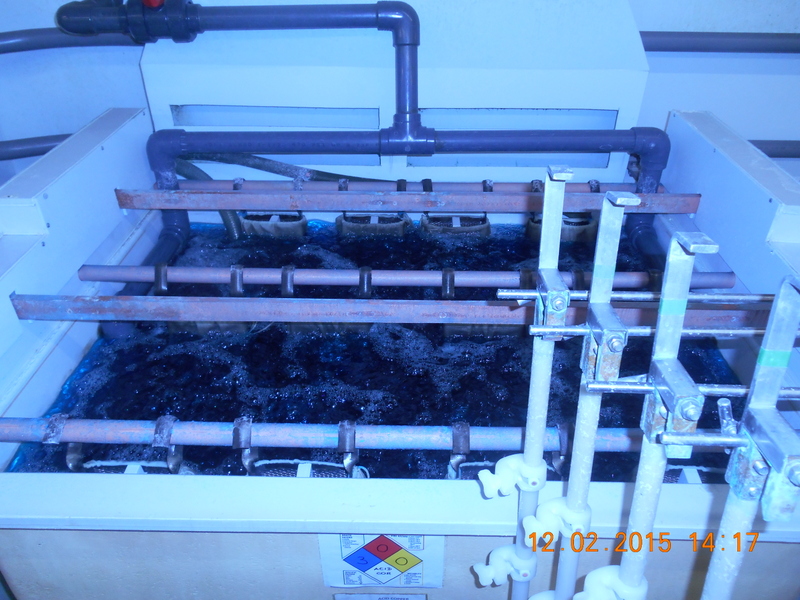

• 4X5X4 Copper plating tank with rectifier
• 4X5X4 Solder plating tank with rectifier
• Chemcut 547 developer with developer chamber counter flow water rinse dryer with S wheel
• Reverse osmosis waste treatment systems

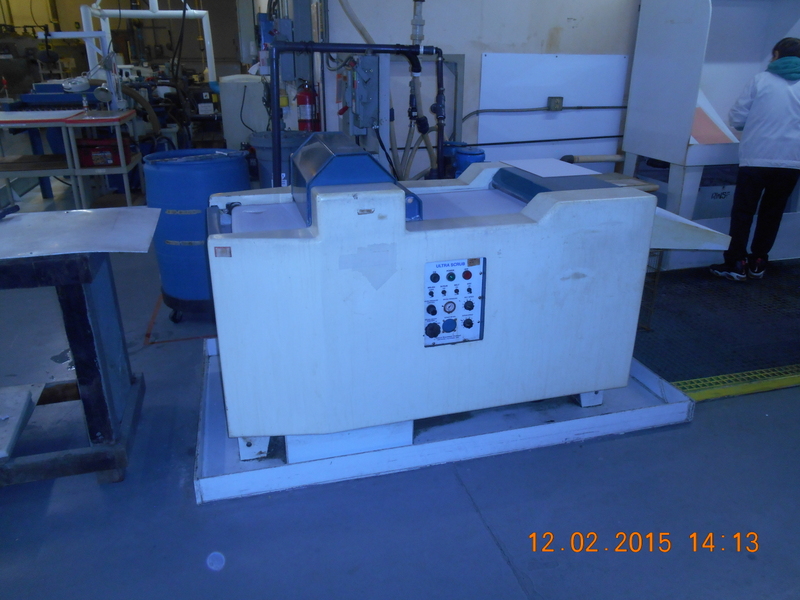

• Ultra scrub scrubbing machine with extra heads
• Barrel cart mover

–

Quality Control

• (4) Bausch & Lomb 4X microscopes
• Leica Microscope on Nu Arc light
• Grieve 3X3X3 oven
• 2 Impulse heat sealers
• 2 hand shear for thin material
• Stein Microscope

–

Laboratory

• Unimet Unitron Microscope
• Mark V polisher
• Scale lab Rectifier

–

Facilities

• Complete maintenance shop with all spare parts
• 2005 Scion xB Van
• (2) Kaiser Model SK 19 15 hp air compressors
• Sullivan Paletek 25 hp air compressor
• Spencer 15 hp vacuum system with dust collector
• Back up 100 Amp generator with auto switching system
