Live Webcast Auction: Complete Late Model CNC Mold Facility, Surplus to World-Renowned Tire Manufacturer. Findlay, Ohio.

Including:

CNC VERTICAL TURNING CENTERS WITH LIVE MILLING

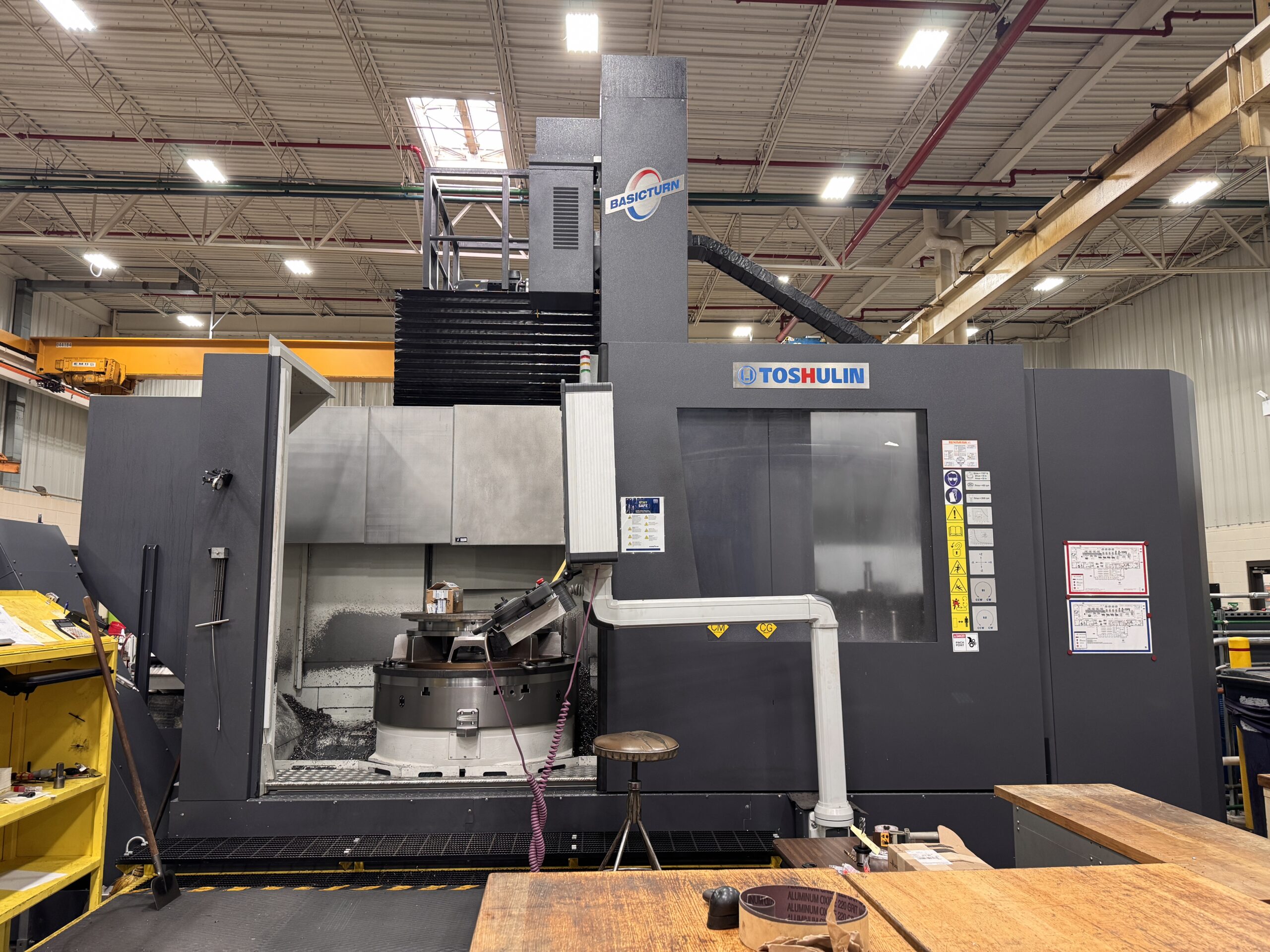

• 2024 Toshulin Basicturn 1250 C1 CNC Vertical Turning Center with Live Milling, Fanuc Series 31i-B Plus CNC Control, 49″ Diameter Table, 55” Max. Work Dia., 55″ Max. Work Height, 41.Z-Axis (Ram) Stroke, 17,600 Lb. Max. Work Weight, 48-Position Automatic Tool Changer, Right Angle Head, 400 RPM Max. Table Speed, 4-3000 RPM Live Milling Spindle Speeds, C-Axis .001 Degrees, Thru Spindle Coolant, Flood Coolant Filtration System, Spindle Chiller, LNS Chip Conveyor, S/N 1936

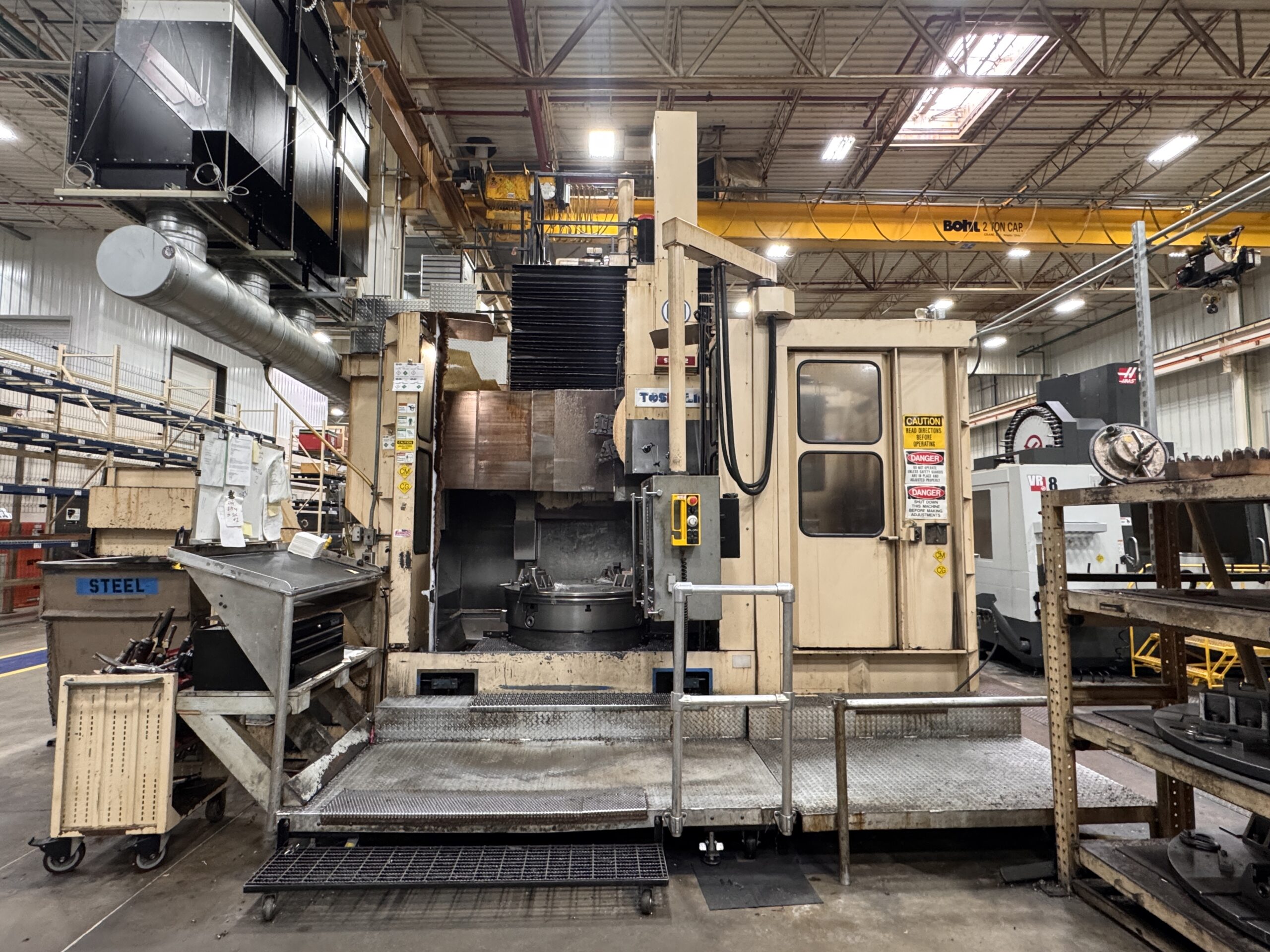

• Toshulin SKS 12 CNC Vertical Turning Center with Live Milling, Fanuc 16-T CNC Control, 49″ 4-Jaw Chuck, 55″ Max. Swing, 55″ Max. Work Height, 39.37” Vertical Ram Travel, 31.5” Vertical Cross Rail Travel, C-Axis .001 Degrees, 3-400 Spindle RPM, 4-3000 RPM Live Milling Spindle Speeds, Ram W/ 15-Position ATC, 19 HP Live Spindle Motor, 54 HP Main Spindle Motor, Chip Conveyor, S/N 1314 [1998]

• Toshulin SKS 12 CNC Vertical Turning Center with Live Milling, Fanuc 16-T CNC Control, 49″ 4-Jaw Chuck, 55″ Max. Swing, 55″ Max. Work Height, 39.37” Vertical Ram Travel, 31.5” Vertical Cross Rail Travel, C-Axis .001 Degrees, 3-400 Spindle RPM, 4-3000 RPM Live Milling Spindle Speeds, Ram W/ 15-Position ATC, 19 HP Live Spindle Motor, 54 HP Main Spindle Motor, Chip Conveyor, S/N 225


CNC 5-AXIS VERTICAL MACHINING CENTERS

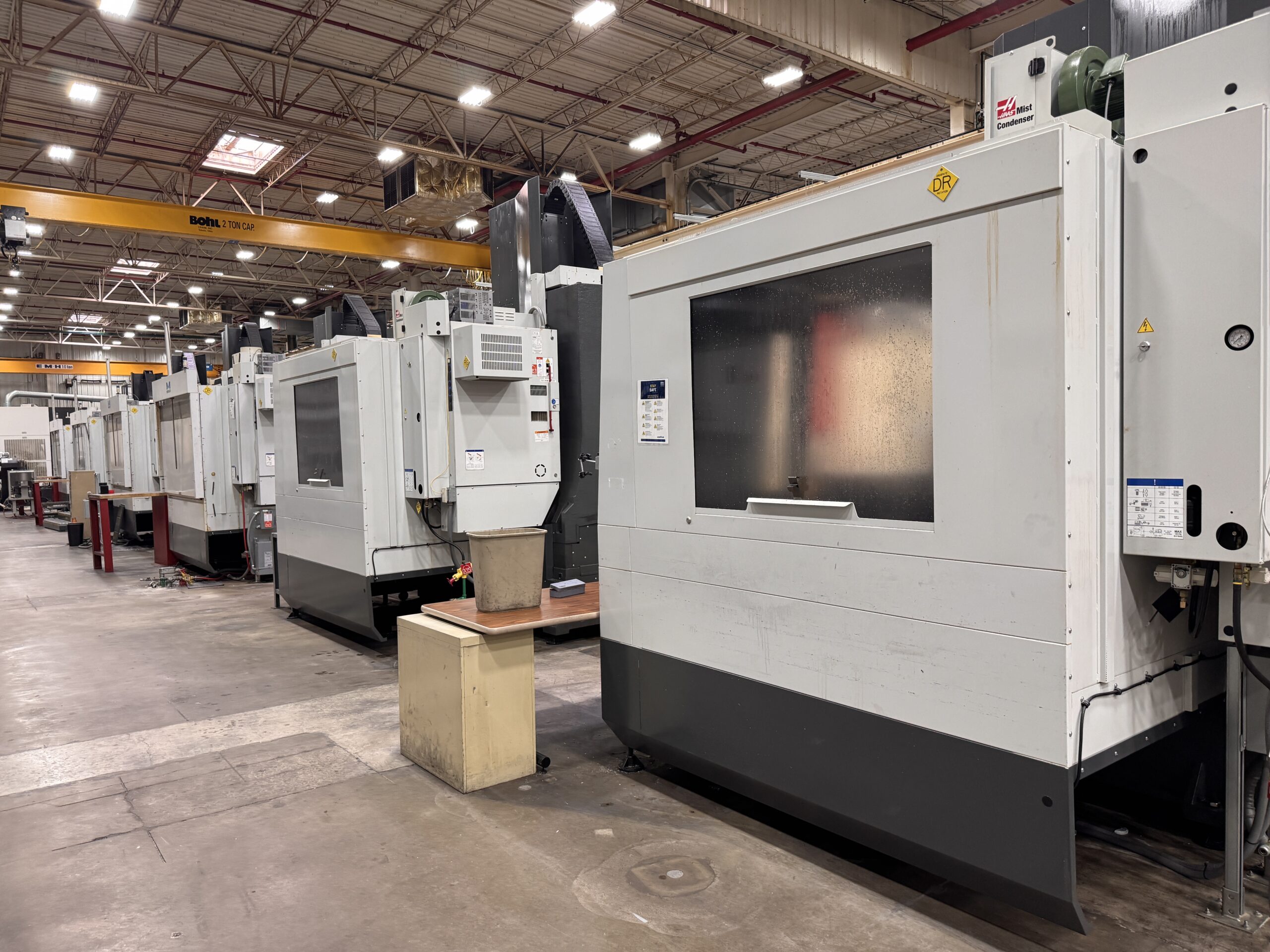

• (8) 2022 Haas VF-8 CNC 5-Axis Vertical Machining Centers, Haas CNC Control, Travels: X-64”, Y-40”, Z-42”, Table Size 64” x 36”, 50-Position Side-Mounted ATC, 20,000 RPM HSK-A63 Spindle, Renishaw Probe, High Pressure Coolant, Chip Auger, S/Ns: 1192263, 1192039, 1191932, 1827611, 1182192, 1181963, 1181885, 1178891

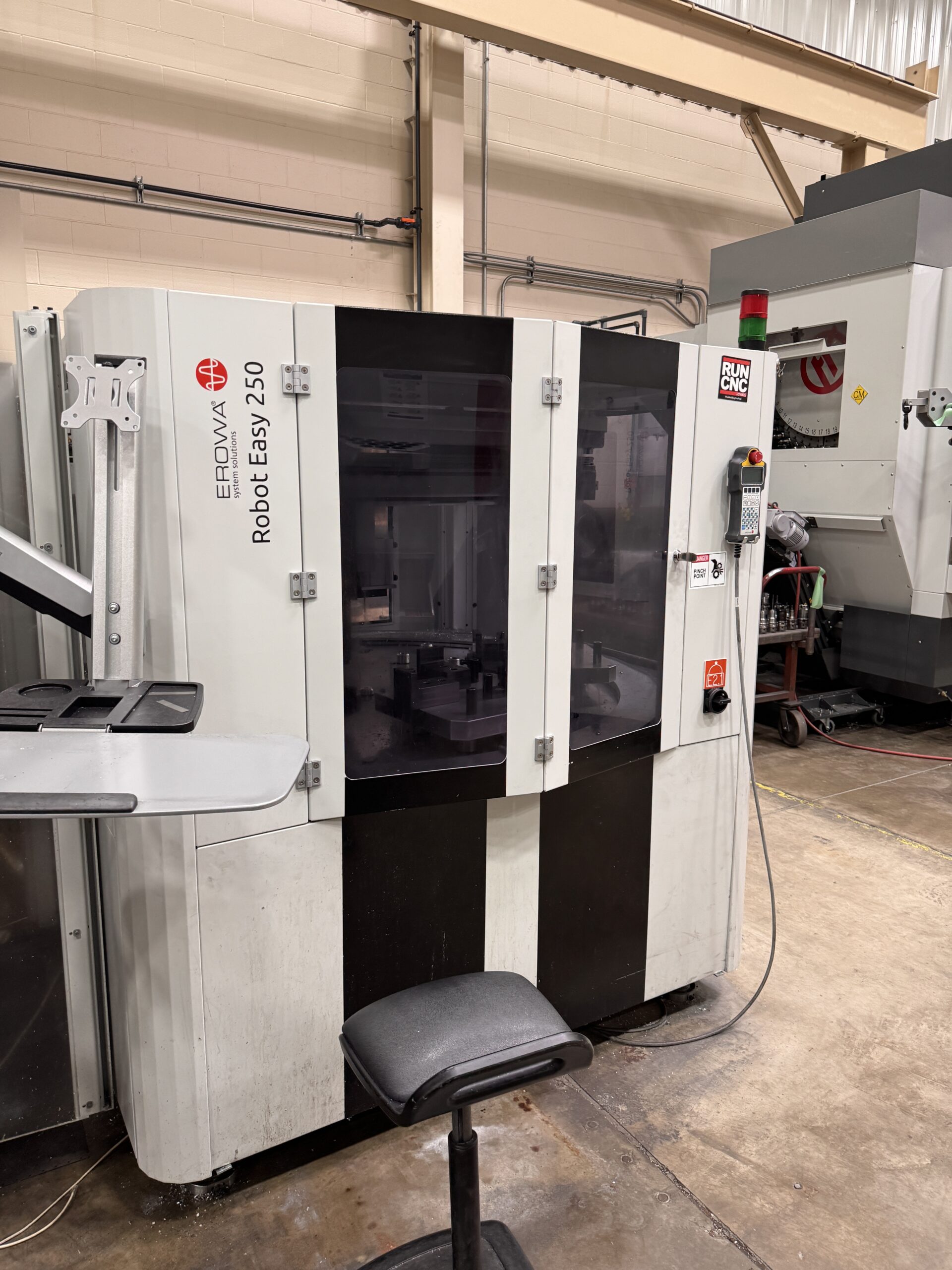

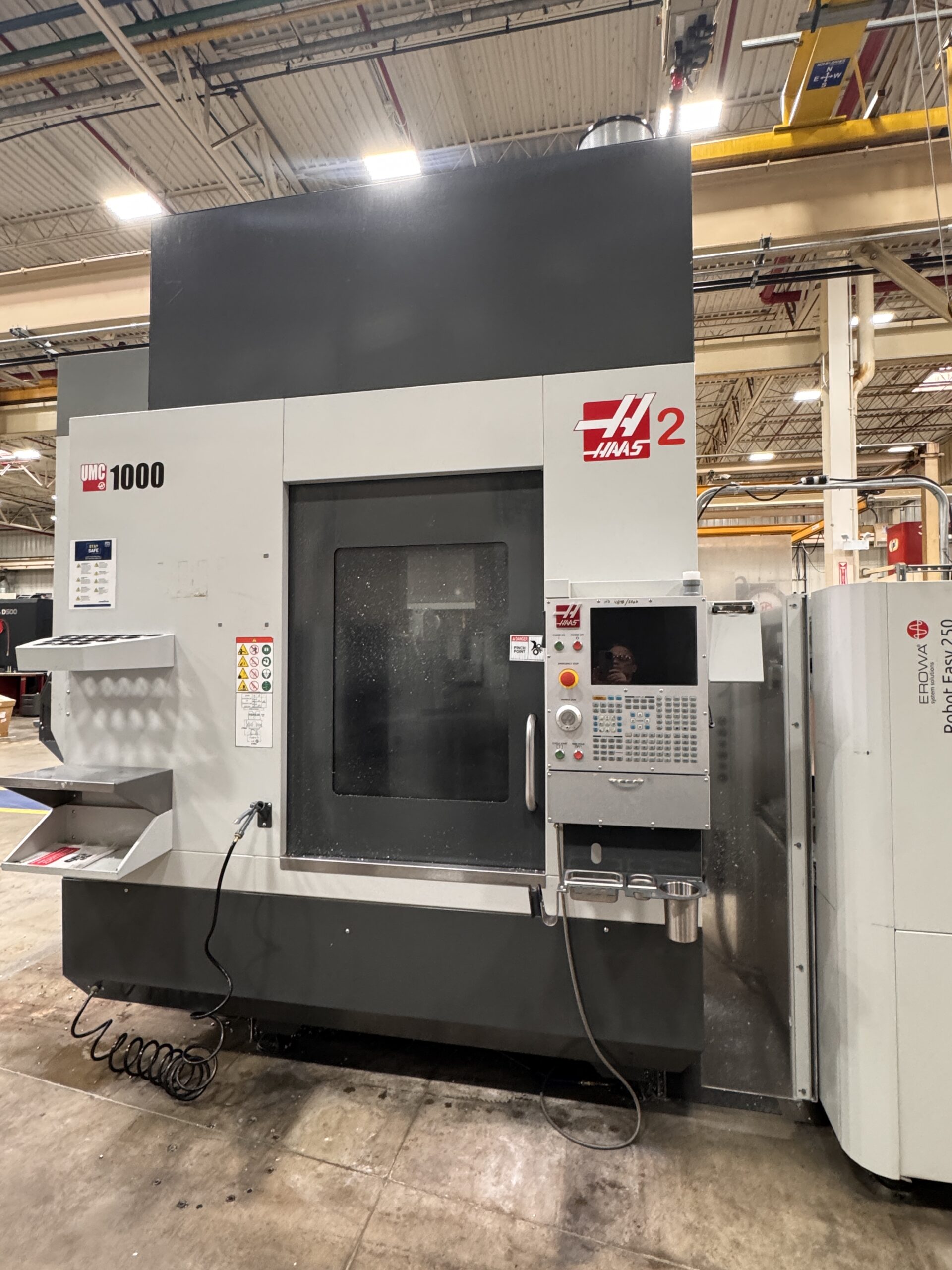

• (3) 2021 Haas UMC-1000 CNC 5-Axis Vertical Machining Centers with Erowa Easy 250 Robot, Haas CNC Control, Travels: X-40″, Y-25″, Z-25″ Travels, 25″ Diameter 2-Axis Trunnion Table with B-Axis Tilt and C-Axis Rotation, 15,000 RPM HSK-A63 Spindle, 50-Position Side Mount Tool Changer, Renishaw Probe, Erowa 4-Position Fixture, Erowa Easy 250 Robot with Pendant, Through Spindle Coolant, High Pressure Coolant, Chip Conveyor, S/N 1178166 [2021], S/N 1174645 [2020], S/N 1167233 [2019]

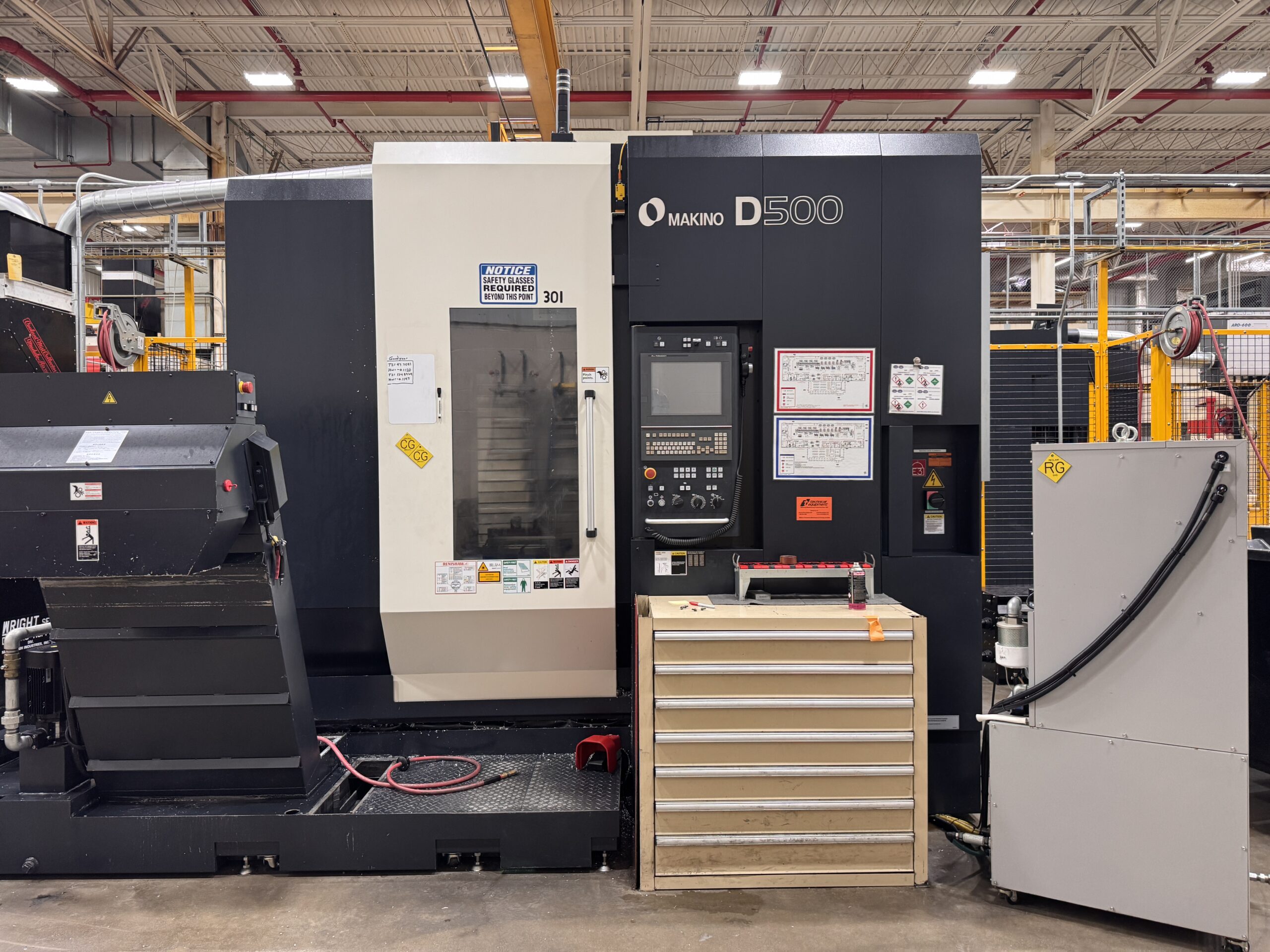

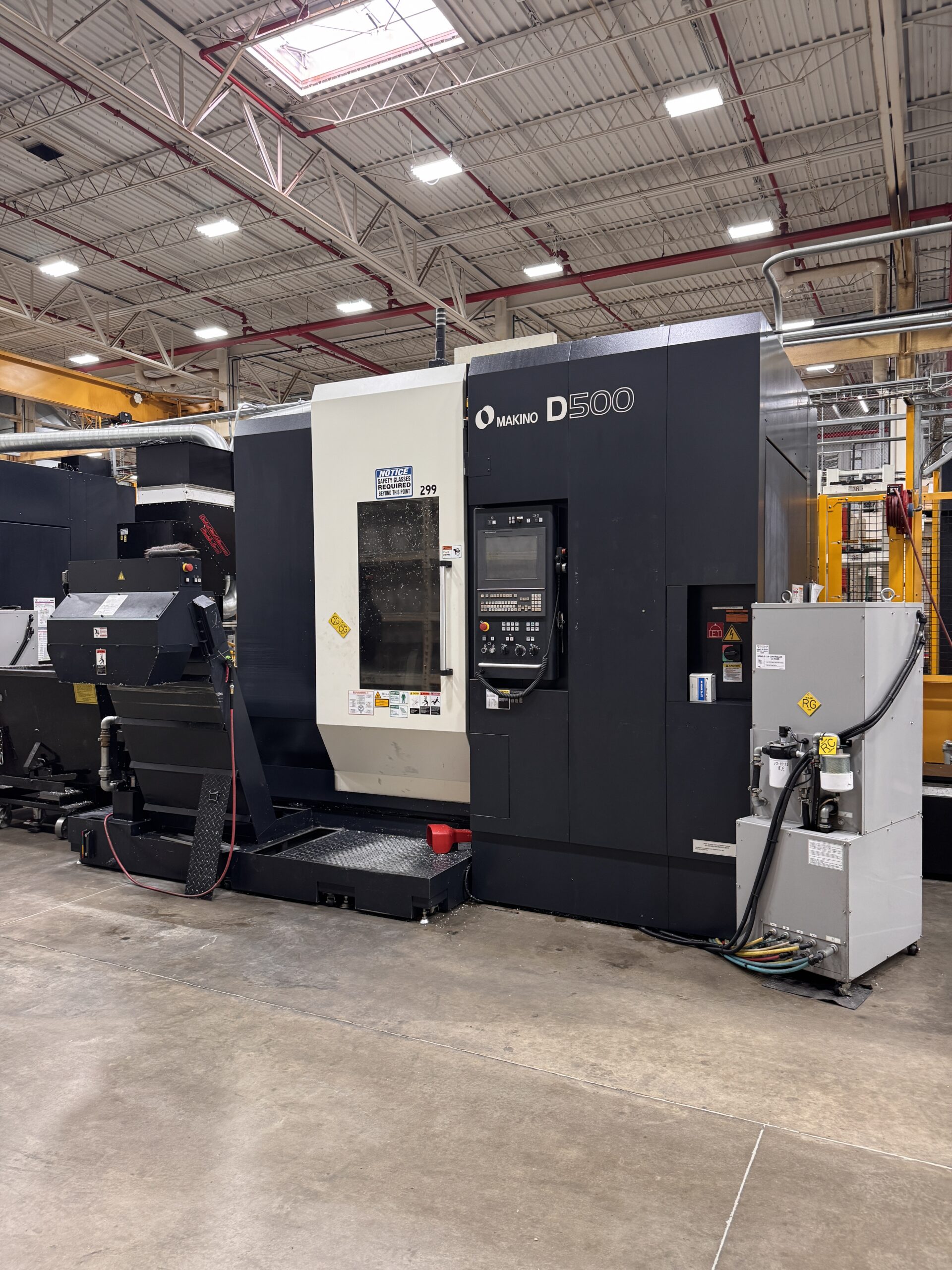

• (2) 2015 Makino D500 CNC 5-Axis CNC Vertical Machining Centers, Professional 6 CNC Control w / Pendant, Travels: X-21.6”, Y-39.3”, Z-19.6”, with 19.6” Dia. 2-Axis Trunnion Rotary Table, +30/-120 Deg. Table Tilt, 30,000 RPM Spindle, HSKA-63 Taper, Through Spindle Coolant, 60-Position Automatic Tool Changer, Kanto Seiki Spindle Chiller, Oil-Air Lubrication, LNS Chip Conveyor, S/N-299, S/N- 301 [2015]

• (4) Midaco 2-APC Automatic Pallet Changers


CNC 5-AXIS BRIDGE-TYPE VERTICAL MACHINING CENTERS

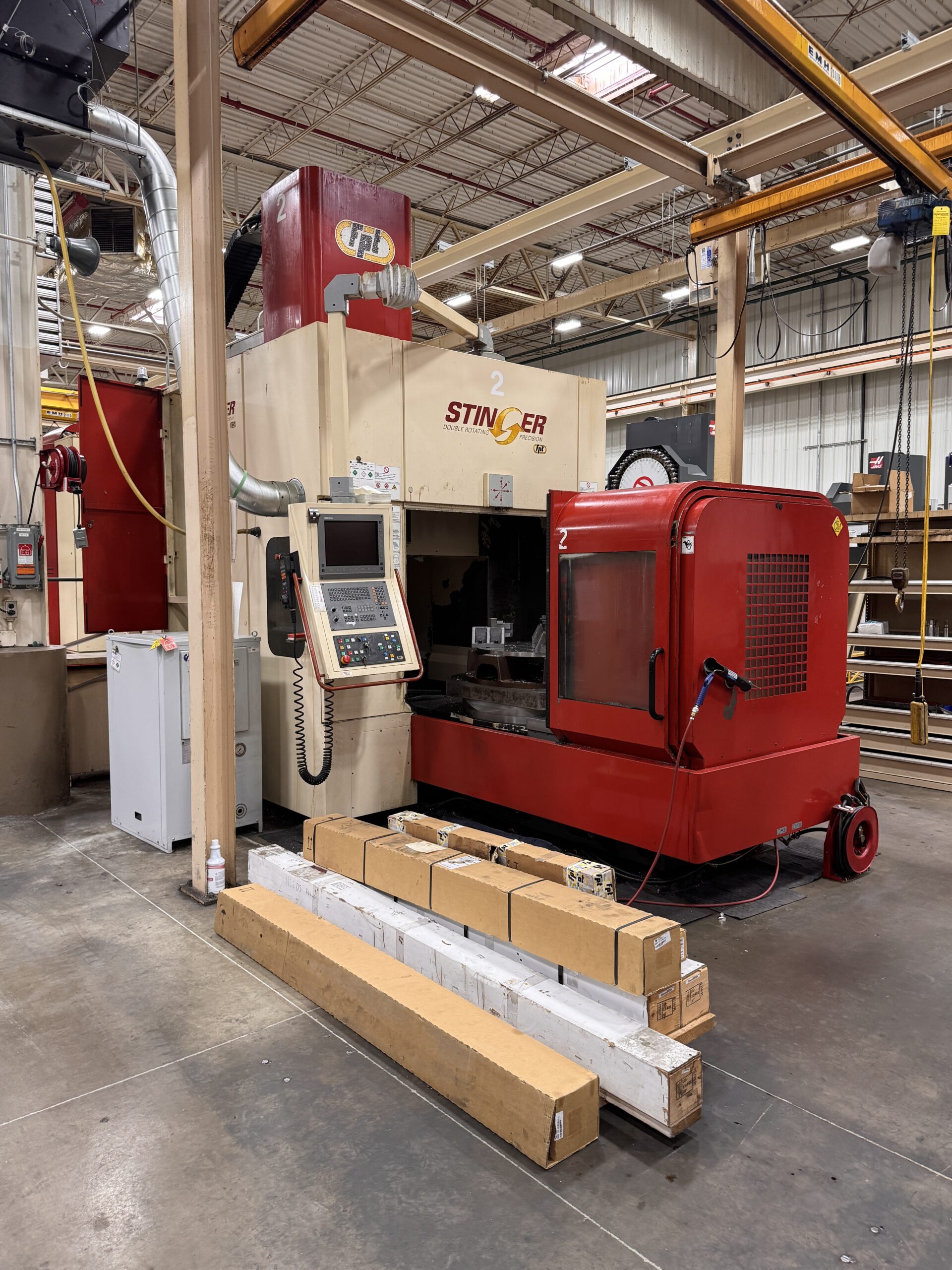

• (4) FPT Stinger 5-Axis CNC Bridge-Type Vertical Machining Center, Heidenhain iTNC 530 CNC Controls, Travels: X-68.8”, Y-55.1”, Z-23.6”, with 47.24” x 39.37” Built-In Contouring Rotary Table, 18,000 RPM Spindle, HSK-63 Taper, 2-Axis Milling Head with +/- 185 Deg. Swivel, 60-Position Automatic Tool Changer, Thru-Spindle Coolant, Chip Conveyor, Spindle Chiller, S/N-SV170523, S/N-SV170522, S/N-SV170521, S/N-SV17052

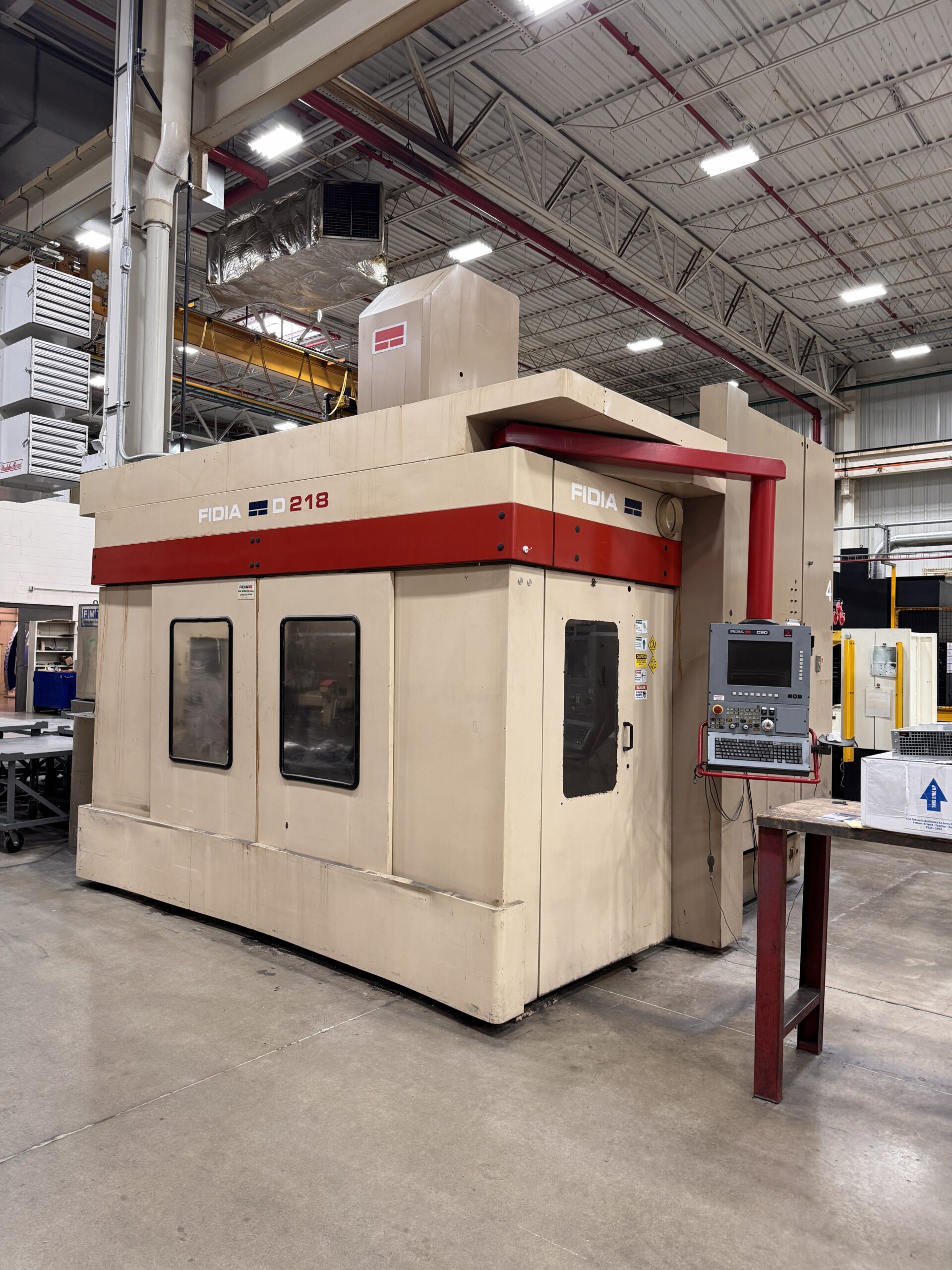

• Fidia D218 CNC 5-Axis Bridge-Type Vertical Machining Center, Fidia C-20 Control, 98″ x 59″ T-Slotted Table, Fidia XTAB-001 Continuous Bi-Rotary Spindle Head, Approx. X-78″, Y-39″, Z-31″ Travels, 20-Tool Automatic Tool Changer, S/N PCD0854

• (8) Nakanishi HES510 Air Spindles, 50,000 RPM, HSK-A63 taper (used with FPT Stingers)


CNC MULTI-TASKING MILL-TURN CENTER

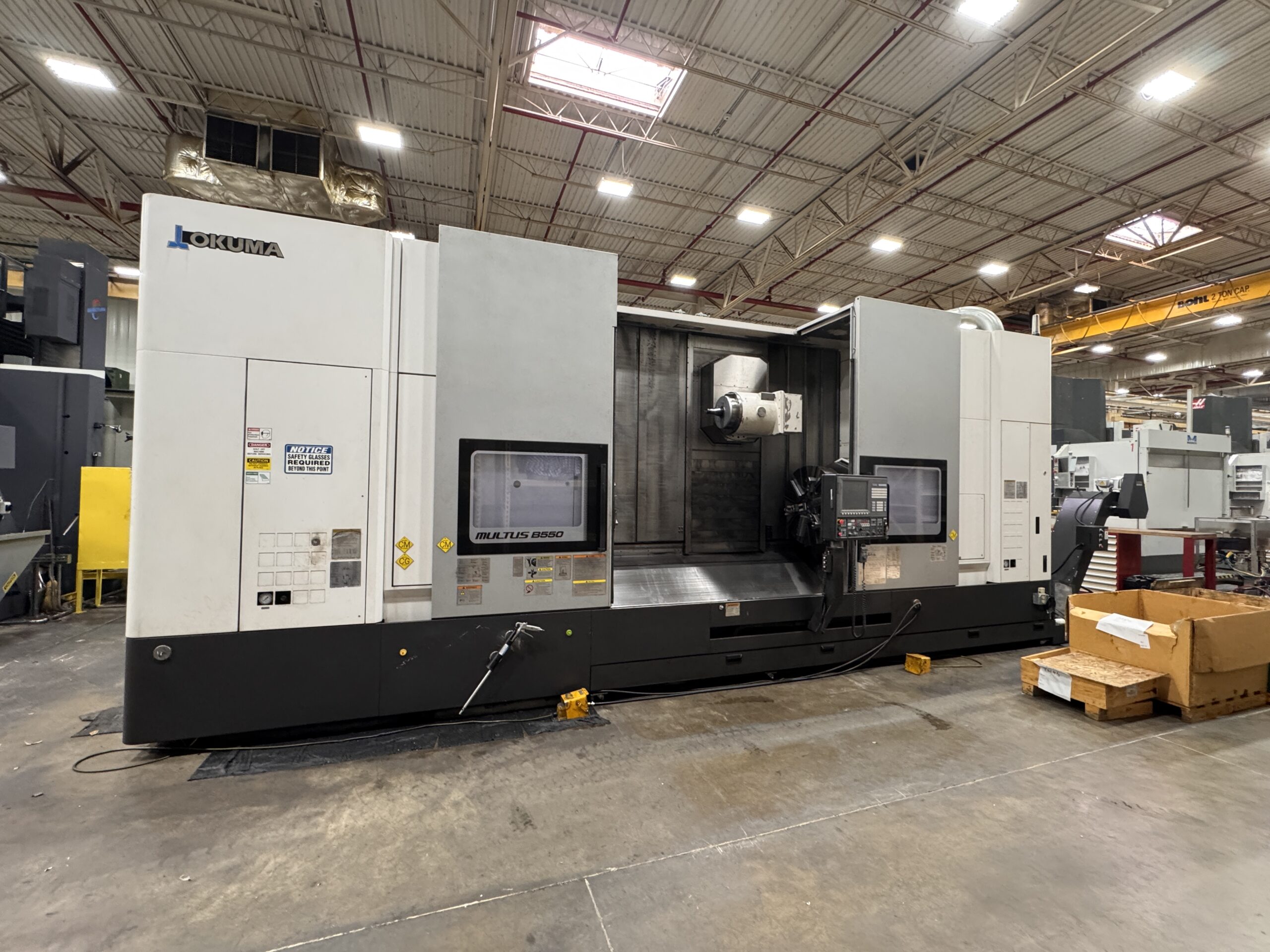

• 2015 Okuma Multus B550-W2000 CNC Multi-Tasking Mill-Turn Center, OSP-P300S-H CNC Control, 32.68” Max. Machining Dia., 100.16” Distance Between Spindle Noses, 78.74” Max. Machining Length, (2) 31” 3-Jaw Chucks, 3000 RPM Main/Opposed Spindles, 10,000 RPM B-Axis Milling Head with -30/+210 Degree Swivel, Automatic Tool Changer, CAPTO C8 Tooling, MP Systems High Pressure Thru-Spindle Coolant, Chip Conveyor, 40/30 HP, S/N 182761510

CNC TOOL GRINDING

• 2022 Rollomatic GrindSmart 660XW CNC 6-Axis Hybrid Tool & Peel Grinding System, Tool Diameter Range 0.1-12.7mm, Full Rotary Tool Grinding, Peel Grinding for Necking and Plunge Grinding, (4) Linear Axes and (2) Rotary Axes, 20 HP Grinding Spindle, Linear and Torque Motors On All Axes, S/N 809753

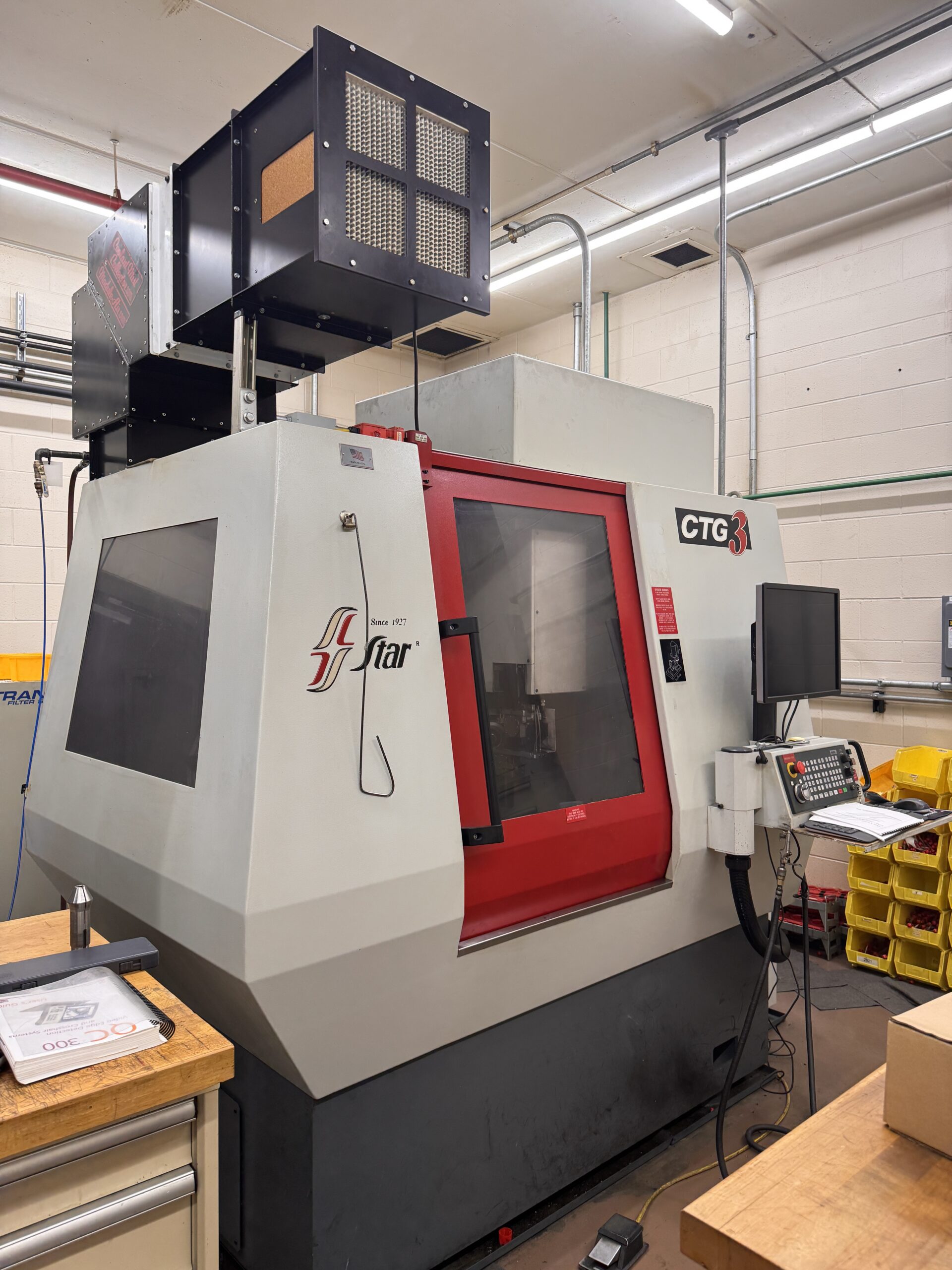

• 2008 Star CTG3 5-Axis CNC Tool & Cutter Grinder, 4” Max. Tool Sharpening Dia., 21” Max. Workpiece Length, 6” Max. Wheel Diameter, +/-110 Degree B-Axis Grinding Wheel Movement, 8.66” Y-Axis Grinding Wheel Vertical Slide, 360 Degree A-Axis Workhead Indexing, 1000 RPM A-Axis Spindle Mode, 11.0” X-Axis Spindle Slide Travel, 19.7” Z-Axis Horizontal Slide Travel, 10,000 RPM Grinding Wheel Speed, 19 HP, Direct Drive Headstock, Glass Scales, Variable RPM, S/N 101


3D PRINTING/ADDITIVE MANUFACTURING / LASER SINTERINGNING

• 2022 GE M2 Cusing Series 5 Direct Metal Laser Melting (DMLM) System, Max Build Envelope 250mm x 250mm x 350mm, Designed for Layer-by-Layer Metal Powder Processing, Asset ID 20135143

• Phenix PXL 500w Laser Sintering Machine, Max Envelope 250mm x 250mm x 300mm, Asset ID 20124516

• 2014 Stratasys Objet 500 Connex2 3D Printer, Build Size 490mm x 390mm x 200mm, Build Resolution: X-Axis 600 DPI, Z-Axis 1600 DPI, S/N 520002


INSPECTION, QUALITY CONTROL, AND TESTING EQUIPMENT

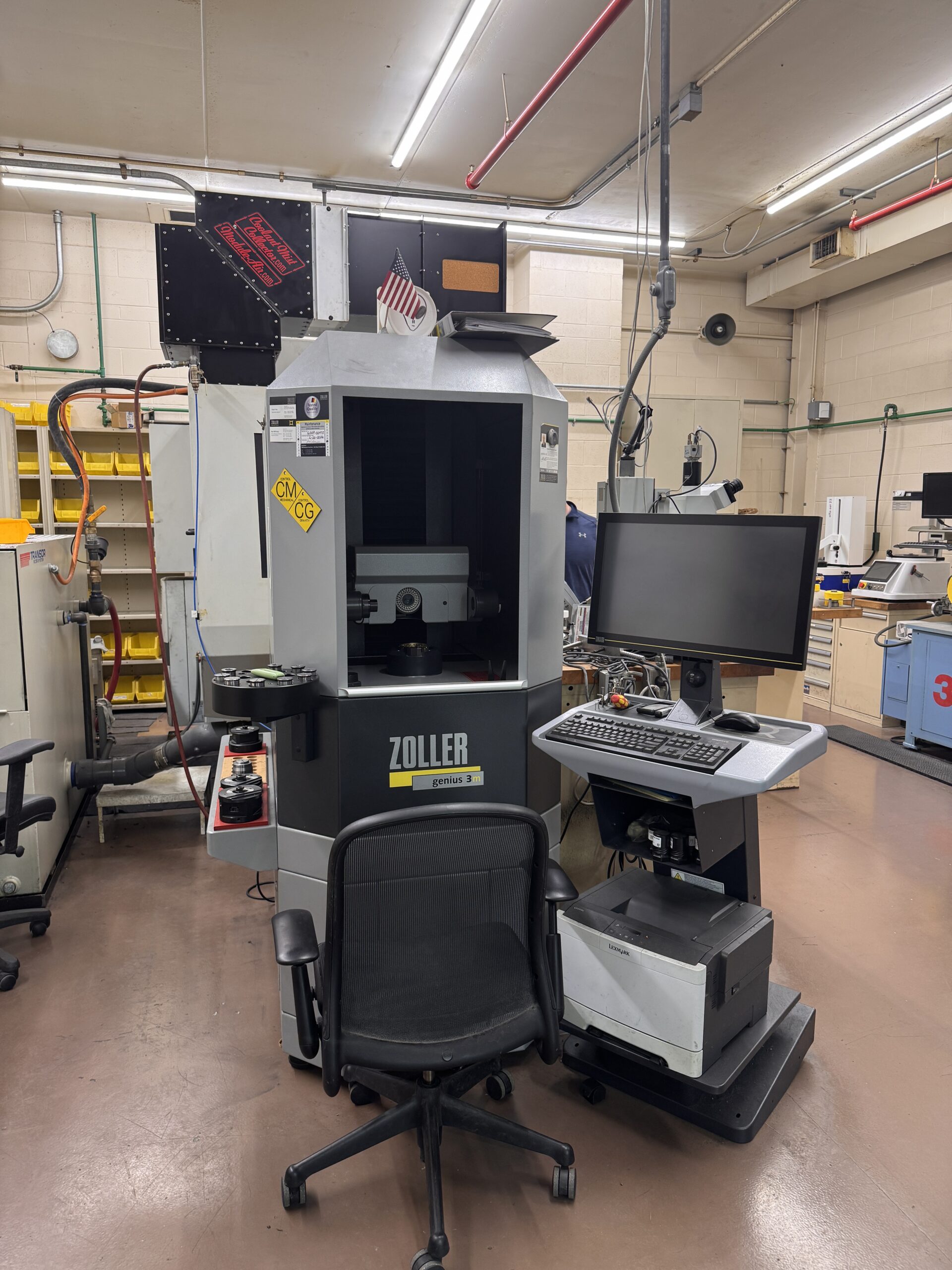

• 2018 Zoller Genius 3M / Universal Measuring & Inspection System, 2018 Zoller Genius 3M 5-Axis Universal Measuring / Inspection System for Metal Cutting Tools with Transor Filtration System

• Olympus STM6 Measuring Microscope, Compact Design, 150mm x 100Mm Capacity, Manual Focus Z Axis, Quadra Check 300 Digital Readout

• 2022 Faro Gage Portable CMM, S/N- A15-G2-22-38226

• 2022 Faro Quantum S Portable CMM, S/N- A30-S5-22-38186

• 2020 Faro Gage Plus Portable CMM, S/N- F04-08-06939

• 2012 FARO Edge Portable CMM, S/N E09-05-12-10090

• 2012 FARO Edge Portable CMM, S/N E09-05-12-10611

• (2) Starrett Granite Tables and Related Inspection Support Equipment

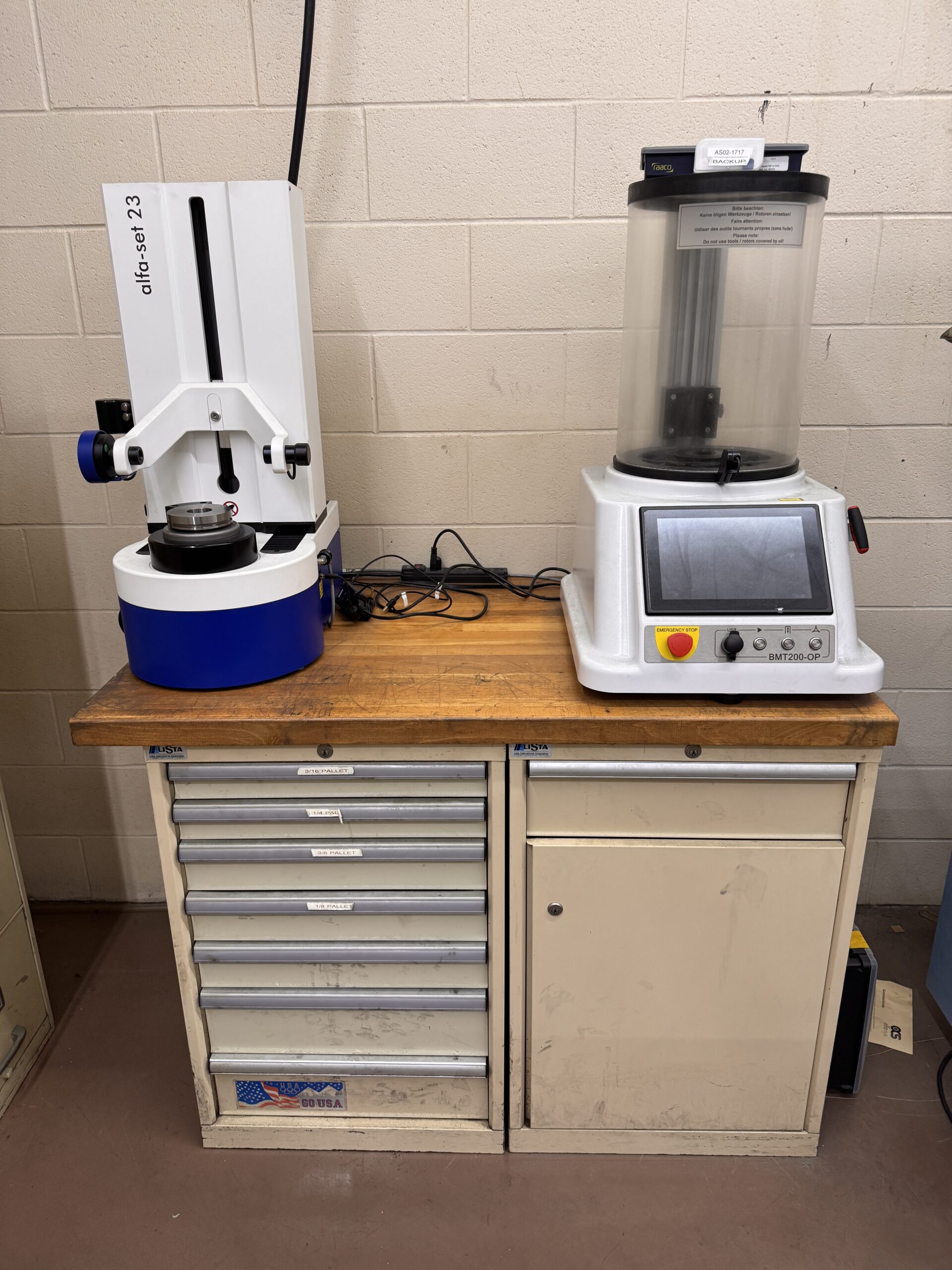

• Alfa-Sys AG Model Alfa-Set 23 Tool Presetting Machine, S/N AS02-1717

• MPM Micro 3.BTM200-2.OP100 Balancing Station, S/N 3.802.21.3203

• Bruker Contour GT 3D Optical Surface Profiling Machine

• Leco 1000 Spectrum Grinding & Polishing System

• Buehler Simplimet 2000 Hot Compression Mounting Press

• (2) Starrett Hardness Testers

• Instron 4202 Tensile Tester


FINISHING, BLAST AND WELDING EQUIPMENT

• Guyson Model 10 Media Blast System, Internal Chamber Dimensions 58” Wide x 58” Deep x 35” High, 35” Diameter Fixed Turntable, Transfer Cart, Media Reclamation System, Dust Collector, Nema Type 12 Enclosure Rating, 480 Volt, S/N- M71228

• Mass HZ-30 Denta 2000 Finishing Machine, S/N- 25239H

• Miller Dynasty 350 AC/DC Tig Welder


FORKLIFTS & MATERIAL HANDLING

• Caterpillar E8000 Electric Forklift, 8,000 Lb. Capacity, Cushion Tire, 5 Degrees Back Tilt, E0-583 Battery Side Shifter, S/N- A2EC470327

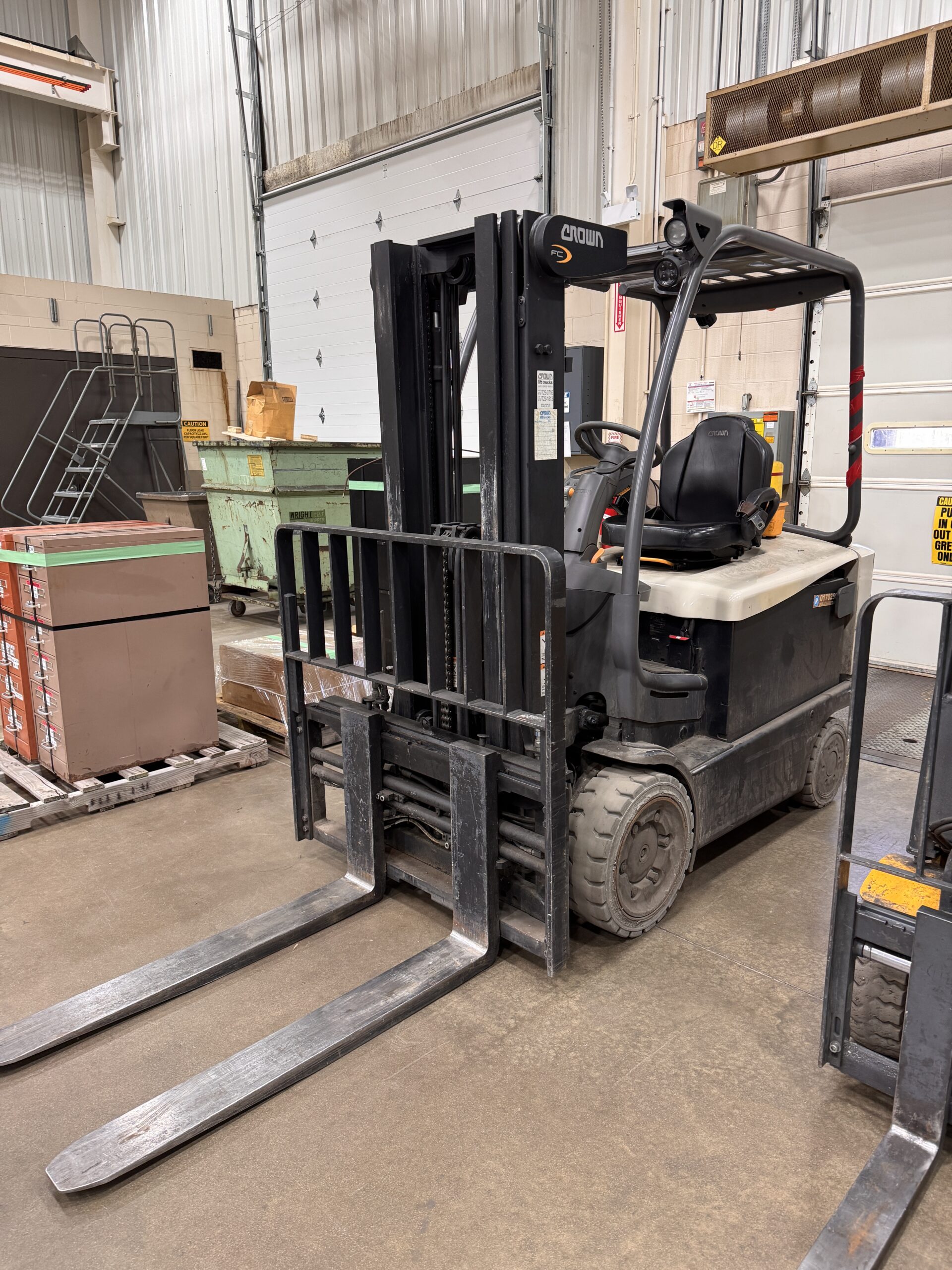

• Crown FC5245-60 Electric Forklift, 6,000 Lb. Capacity, Battery Type EO, 48 DC Volt, Cushion Tires, 5 Degrees Back Tilt, S/N- 10454006

• Crown SC5715-30 3-Wheel Design Electric Forklift, 3,000 Lb. Capacity, 36 Volt EO Type Battery, 5 Degrees Back Tilt, S/N- 10463403

• Crown Stand-Up Electric Forklift, 4,500 Lb. Capacity

• Jungheinrich EFG-113 3-Wheel Design Electric Forklift, 3,000 Lb. Capacity, 24 Volt EO Type Battery, S/N- FN455065

• Pallet Jacks and Material Trolleys


AIR COMPRESSOR

• Chicago 50 HP Air Compressor

MISCELLANEOUS PLANT SUPPORT AND TOOLING

• Tool Chests, Lista Type Cabinets, Metal Worktables, CAT 50 Toolholders, HSK 63 Tool Holders, Vibratory Bowl and Hopper, Chip Hoppers, Fall Protection Device, Warrior Floor Scrubber, Pallet Racking, & Much More!
