Global Private Treaty Sale #1 By Order of Phillips Respironics: (2) FANUC Robodrills Alpha D21MiA5
For Immediate Sale

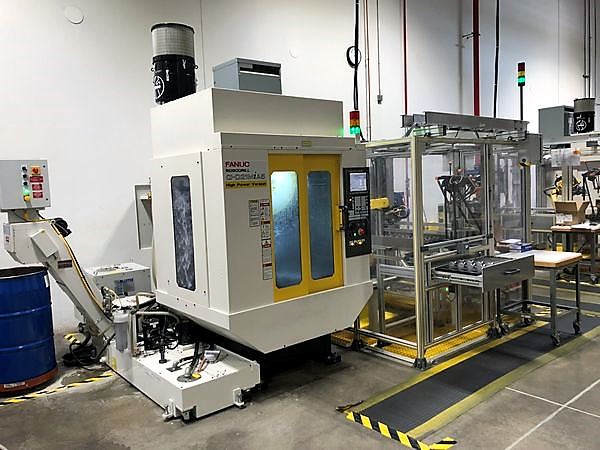

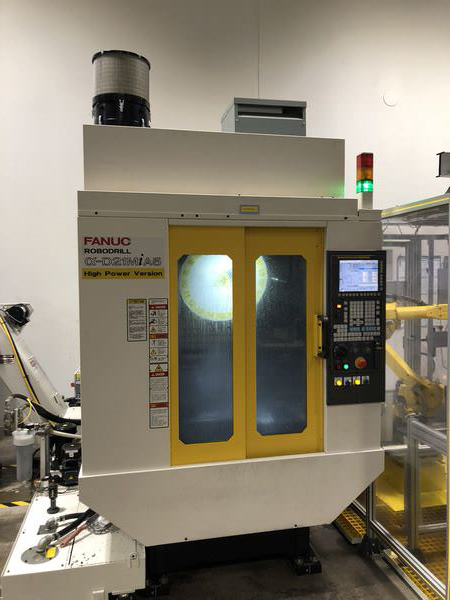

2016 Alpha D21MiA56
Fanuc 31i-B5 CNC Control:
24,000 RPM High Torque Spindle:
Fanuc DDR 4th Axis High Speed Indexer:
21-Station Automatic Toolchanger:
Automation Package:

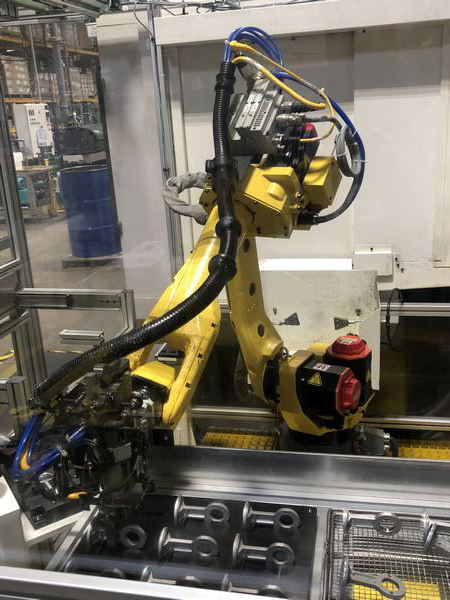

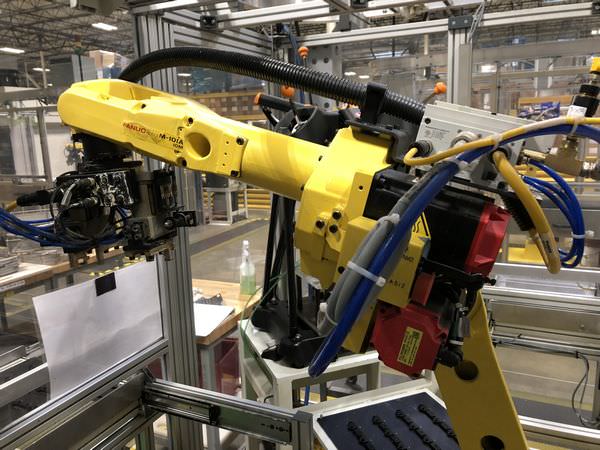

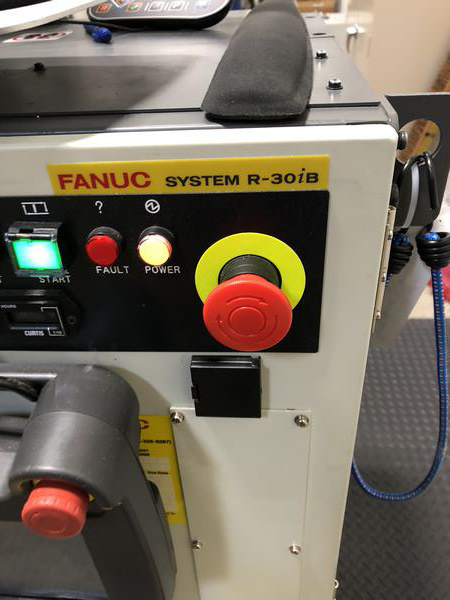

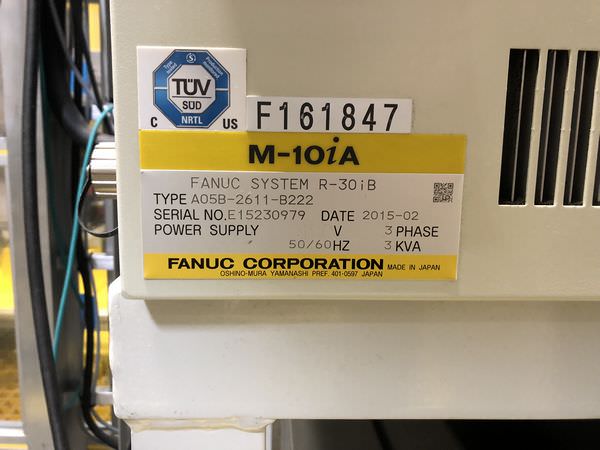

Fanuc M-10iA 6-Axis Robot with R-30iB Controller:
Renishaw Equator Gauge:
Fanuc IRVision 2D Camera:
– Capacity
X-Axis Travel: 19.68″
Y-Axis Travel: 15.74″
Z-Axis Travel: 12.9″
Table Working Surface: 15.7″ x 25.6″
Max Table Load: 660 Lbs
Max Distance Spindle to Table Top: 18.9″
Spindle Speeds, Inf Variable: 100-24,000 RPM
Max Spindle Speed for Tapping: 5,000 RPM
Spindle Taper: BBT30 (BIG PLUS)
Rapid Traverse (X,Y,Z-Axes): 2125 IPM
Feed Rate (X,Y,Z-Axes): 1181 IPM
Tool Changer: 21 ATC
Tool Change Time: 1.6 Sec Tool-To-Tool
–

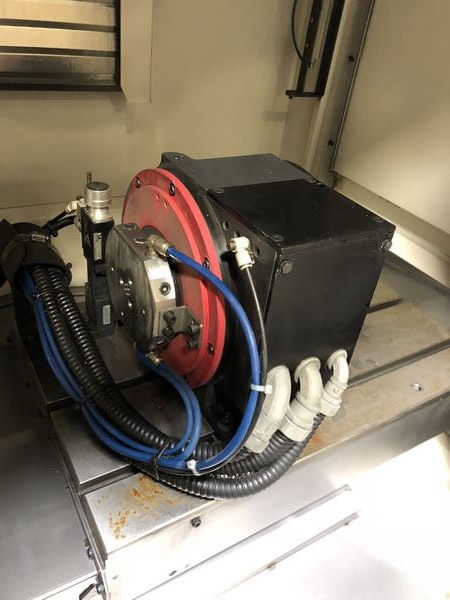

FANUC DDR 4TH AXIS HIGH SPEED INDEXER
Maximum Speed: 200 RPM
Drive System: Direct Drive
Indexing: .001 Degree
Index Accuracy: .0028 Degree
Clamp System: Compressed Air and Spring
Clamp Torque: 500 Nm
Load Capacity (Horizontal): 100 kg
Center Height: 5.90″
Weight: 145.2 Lbs
–
EQUIPPED WITH:
Fanuc 31i-B5 5-Axis CNC Control

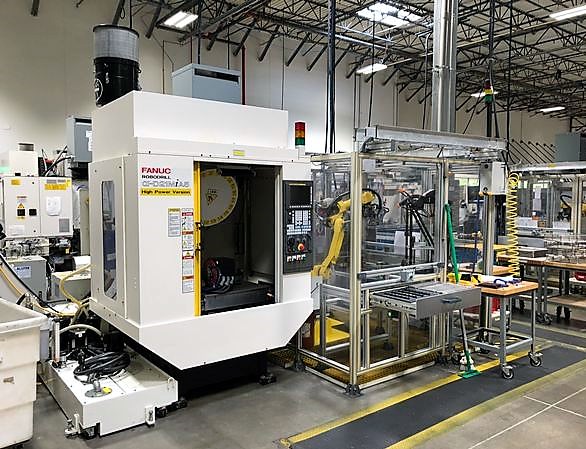

Automation Package: (1) Fanuc M-10iA/10M Robot with R-30iB Controller, Side by Side Part Infeed/Outfeed Drawer, (1) Fanuc iR Vision 2D Camera with Stand, Renishaw Equator, Full Guardingn, 2 Part End of Arm Tool
Fanuc DDR High Speed 4th Axis Indexer with Pneumatic Fixture
High Pressure Coolant Thru Spindle (500 PSI)

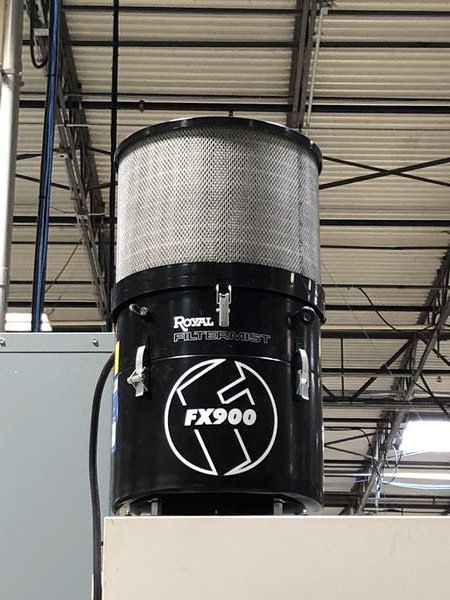

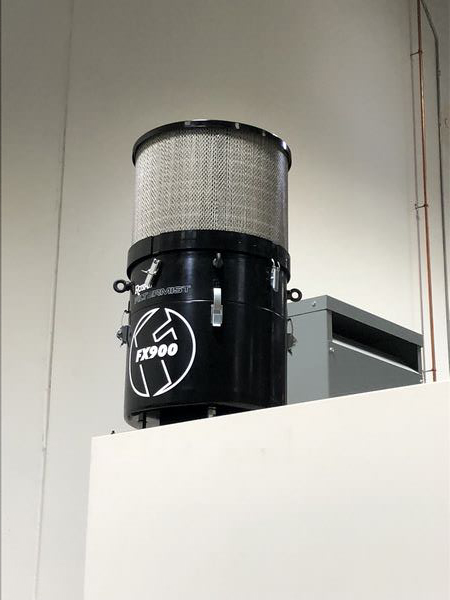

Mist Collector (Royal FX900)

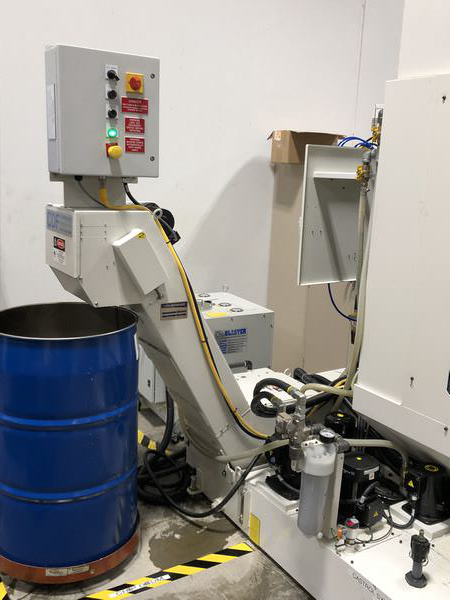

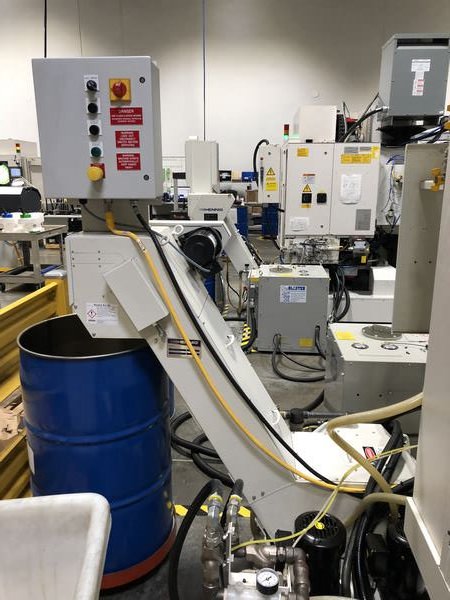

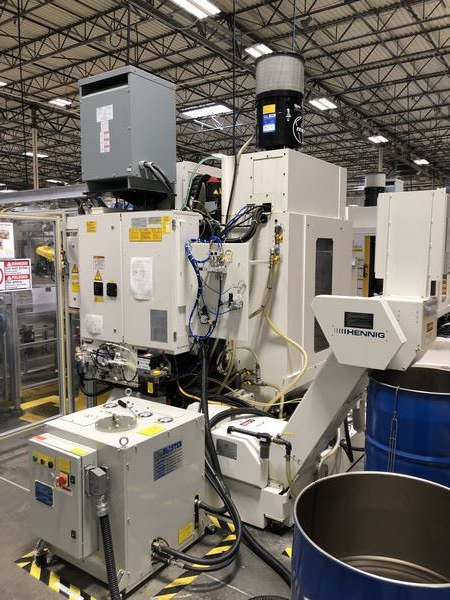

Chip Conveyor with 50 Micron Filtration
Full Guarding
14 HP Spindle Drive Motor
–
2016 Alpha D21MiA5
Fanuc 31i-B5 CNC Control:
10,000 RPM High Torque Spindle:
Fanuc DDR 4th Axis High Speed Indexer:
21-Station Automatic Toolchanger:
Automation Package:
Fanuc M-10iA 6-Axis Robot with R-30iB Controller:
Renishaw Equator 300:
Fanuc IRVision 2D Camera:
–
Capacity:
X-Axis Travel: 19.68″
Y-Axis Travel: 15.74″
Z-Axis Travel: 12.9″
Table Working Surface: 15.7″ x 25.6″
Max Table Load: 660 Lbs
Max Distance Spindle to Table Top: 18.9″
Spindle Speeds, Inf Variable: 100-10,000 RPM
Max Spindle Speed for Tapping: 5,000 RPM
Spindle Taper: BBT30 (BIG PLUS)
Rapid Traverse (X,Y,Z-Axes): 2125 IPM
Feed Rate (X,Y,Z-Axes): 1181 IPM
Tool Changer: 21 ATC
Tool Change Time: 1.6 Sec Tool-To-Tool
–
FANUC DDR 4TH AXIS HIGH SPEED INDEXER:
Maximum Speed: 200 RPM
Drive System: Direct Drive
Indexing: .001 Degree
Index Accuracy: .0028 Degree
Clamp System: Compressed Air and Spring
Clamp Torque: 500 Nm
Load Capacity (Horizontal): 100 kg
Center Height: 5.90″
Weight: 145.2 Lbs
–
EQUIPPED WITH:
Fanuc 31i-B5 5-Axis CNC Control
Automation Package: (1) Fanuc M-10iA/10M Robot with R-30iB Controller, Side by Side Part Infeed/Outfeed Drawer, (1) Fanuc iR Vision 2D Camera with Stand, Perimeter Guarding, 2 Part End of Arm Tool
Fanuc DDR High Speed 4th Axis Indexer with Pneumatic Fixture
