Global Private Treaty Sale #2 By Order of Phillips Respironics: (2) FANUC Robodrills Alpha D21MiA5

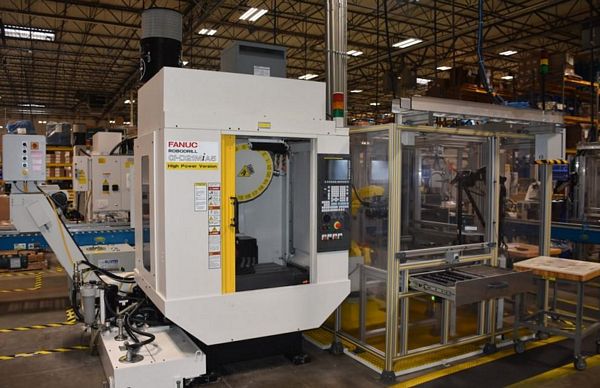

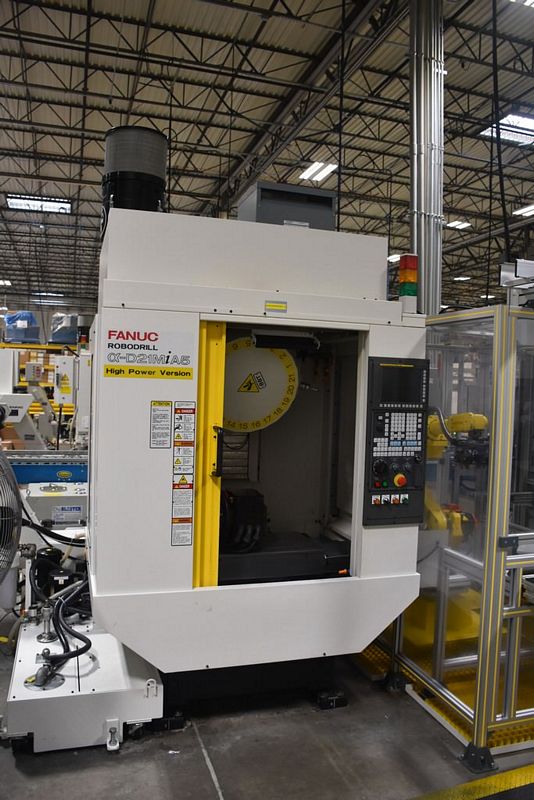

(2) 2016 Alpha D21MiA56
Fanuc 31i-B5 CNC Control:
24,000 RPM High Torque Spindle:
Fanuc DDR 4th Axis High Speed Indexer:
21-Station Automatic Toolchanger:
Automation Package:
Fanuc M-10iA 6-Axis Robot with R-30iB Controller:
Renishaw Equator Gauge:
Fanuc IRVision 2D Camera:
Capacity
X-Axis Travel: 19.68″
Y-Axis Travel: 15.74″
Z-Axis Travel: 12.9″
Table Working Surface: 15.7″ x 25.6″
Max Table Load: 660 Lbs
Max Distance Spindle to Table Top: 18.9″
Spindle Speeds, Inf Variable: 100-24,000 RPM
Max Spindle Speed for Tapping: 5,000 RPM
Spindle Taper: BBT30 (BIG PLUS)
Rapid Traverse (X,Y,Z-Axes): 2125 IPM
Feed Rate (X,Y,Z-Axes): 1181 IPM
Tool Changer: 21 ATC
Tool Change Time: 1.6 Sec Tool-To-Tool

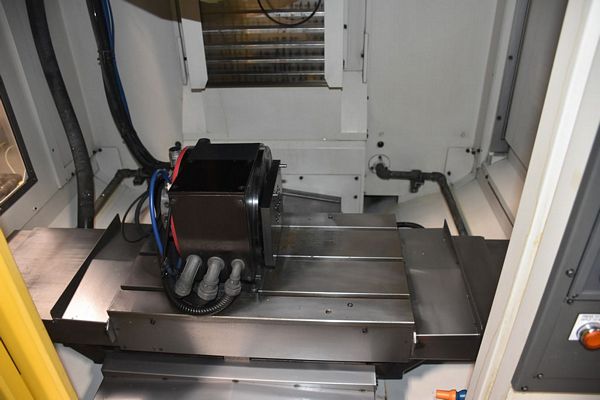

FANUC DDR 4TH AXIS HIGH SPEED INDEXER
Maximum Speed: 200 RPM
Drive System: Direct Drive
Indexing: .001 Degree
Index Accuracy: .0028 Degree
Clamp System: Compressed Air and Spring
Clamp Torque: 500 Nm
Load Capacity (Horizontal): 100 kg
Center Height: 5.90″
Weight: 145.2 Lbs
EQUIPPED WITH:
Fanuc 31i-B5 5-Axis CNC Control

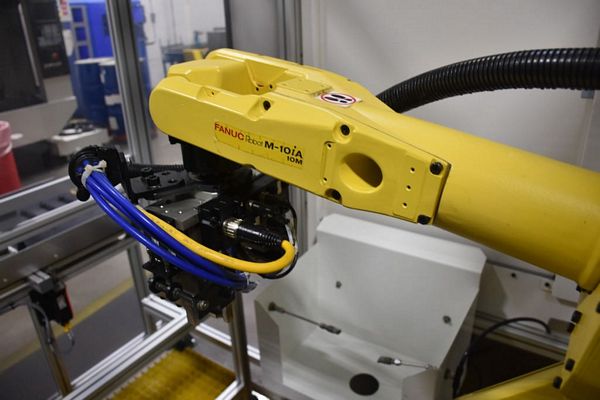

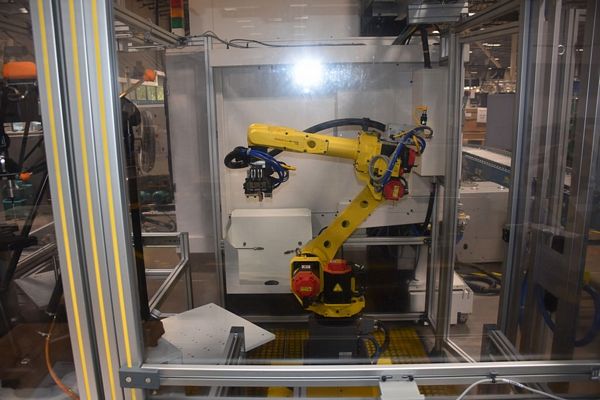

Automation Package: (1) Fanuc M-10iA/10M Robot with R-30iB Controller, Side
by Side Part Infeed/Outfeed Drawer, (1) Fanuc iR Vision 2D Camera with
Stand, Renishaw Equator, Full Guardingn, 2 Part End of Arm Tool
Fanuc DDR High Speed 4th Axis Indexer with Pneumatic Fixture
